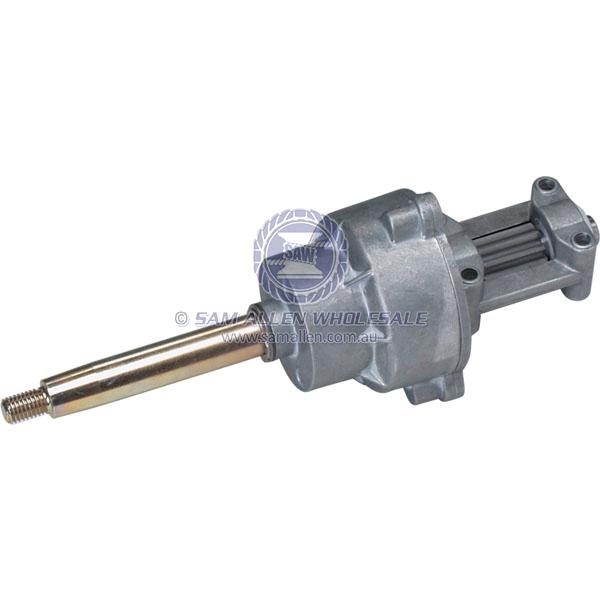

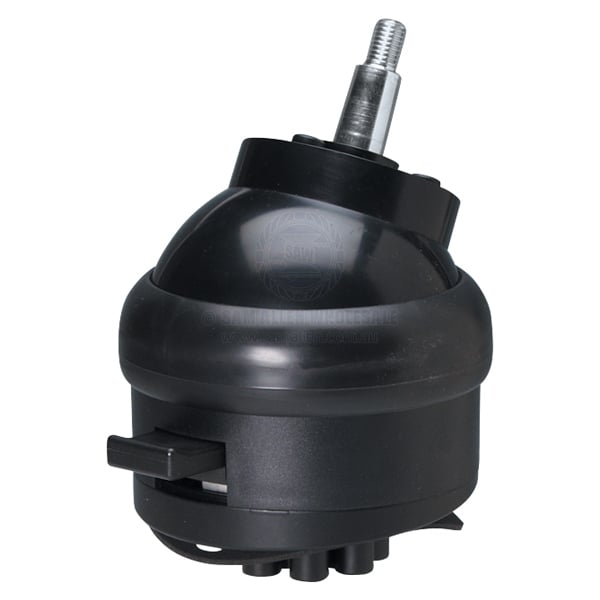

ULTRAFLEX MECHANICAL STEERING HELMS - RACK & PINION

Features

• Easy and safe steering: the no feedback design that incorporates the patented Non-reversible G88NR and G98NR helms eliminates the continuous load on to the operator caused by the propeller torque.
• Made exclusively in corrosion resistant materials.
• Standard 3/4 inch tapered shaft.
• Steering wheel turns 3.5 times lock to lock.
• Maximum allowable steering wheel diameter 420 mm (16.5 inch).
• Uses TM86 Ultraflex cable.
• Mounting bezels required: X34 - 83545 - black, 90 Degree mounting X34W - 83545W - white, 90 Degree mounting X35 - 83540 - black, 20 Degree mounting
• Exceeds both EN 28848 and ABYC P17 safety standards.
• See Steering System Selection Guide Recommended & Max HP Rating on page 606 for recommended and maximum horsepower rating.
