ULTRAFLEX OUTBOARD CYLINDER - SIDE MOUNT - UC132-OBS

ULTRAFLEX OUTBOARD CYLINDER - SIDE MOUNT - UC132-OBS

$764.55 AUD
$764.55 AUD
Sale Sold out
Shipping calculated at checkout.

Description

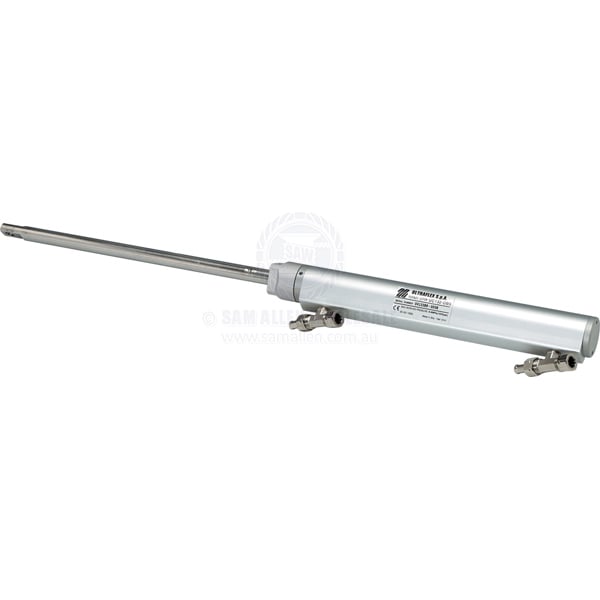

Steering cylinder hydraulic side mount Ultraflex UC132-OBS

Features

  • For outboard engines up to 300 HP.
  • Unbalanced: the number of turns lock-to-lock is not equal.
  • UC132-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube.
  • Clearance required at the engine tube side is 375 mm (14.76 inch).
  • Recommended for use where maximum boat speed does not exceed 40mph (40knots).
  • The UC132 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

Specifications

Part No. CMW-83914
Model UC132-OBS
Volume 132 / 163 cc - 8 / 9.95 cu. in
Output Force 464 / 574 kg - 1023 / 1265 lbs
Inside diameter 32 mm - 1.25 inch
Stroke 203 mm - 8 inch
For high pressure flex hose 3/8 inch Tube Fittings
Note UC132-OBS cylinder is not intended for use with 105 Bar (1500psi) SilverSteer Series Helms.

Guides & Documents

83914_ordering_guide.pdf
