Description

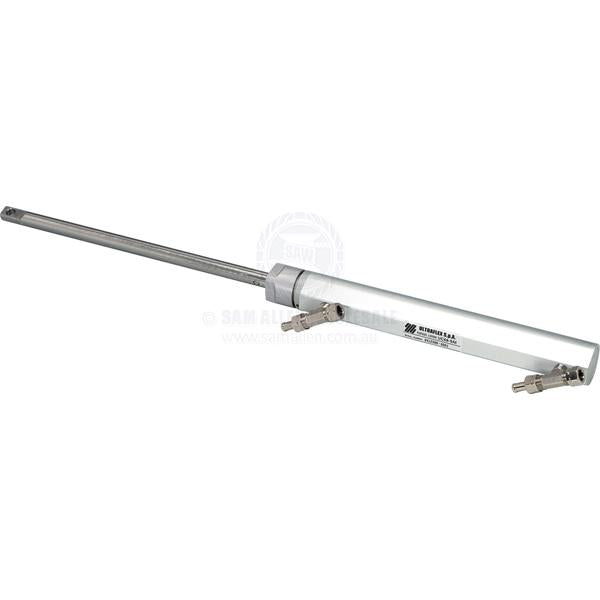

Steering cylinder hydraulic side mount Ultraflex UC68-OBS

Features

  • For outboard engines up to 150HP.
  • Unbalanced: the number of turns lock-to-lock is not equal port to starboard and vice-versa.
  • UC68-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube.

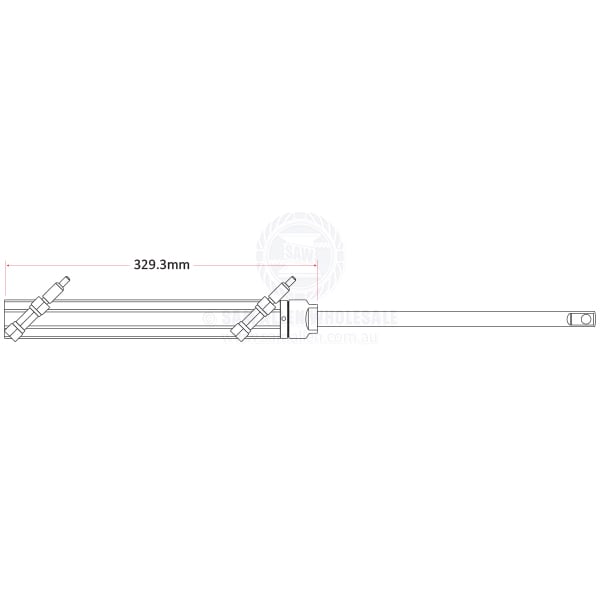

  • Clearance required at the engine tube side is 340mm (13.3 inch).
  • Recommended for use where maximum boat speed do not exceed 40mph (40knots).

Specifications

Part No. CMW-83908C
Model UC68-OBS
Volume 68/100 cc - 4.1/6.1 cu. In
Output Force 185/270 kg - 408/595 lbs
Inside Diameter 25mm - 0.98 inch
Stroke 203mm - 8 inch
For high pressure flex hose 3/8 inch Tube Fittings
