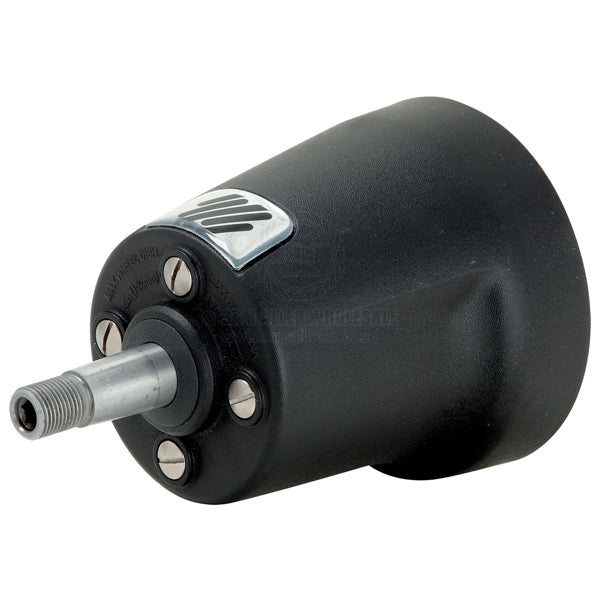

Steering helm hydraulic front mount Ultraflex UH32-F single cylinder
Specifications
Part No.
CMW-84032
Model
UH32-F
Mounting
Front Mount
Displacement/Revolution
32cc - 1.95cu.in
No. of Turns Lock to Lock
3.75 turns single cylinder
Max Wheel Diameter
406mm - 16 inch
No. of Stations
1
Note

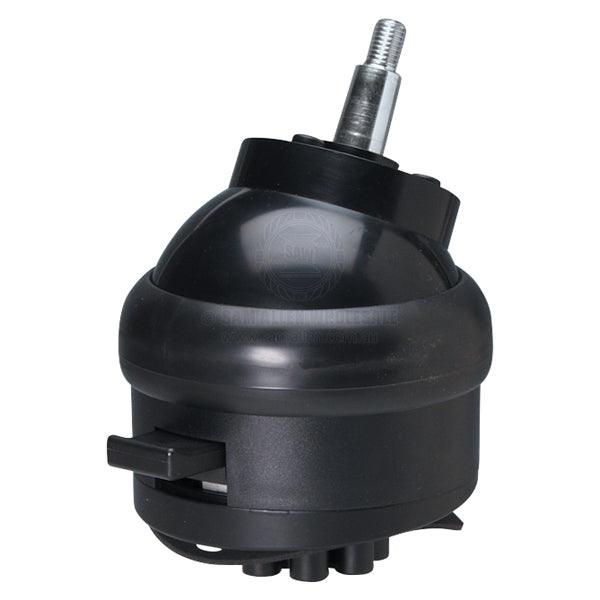

• Available in two different displacement sizes: 32cc (1.95 cu.in) and 40cc (2.44 cu.in). • Front Mount and Tilt Mount versions available. • Dual station installation use, 40cc displacement version only. • Built-in relief valve. • 3/4 inch tapered shaft. • Corrosion resistant painted body. • Waterproof. • Tilt mount versions use X66 - 84042 tilt mechanism (sold separately). • The X66 tilt range of 48° with five locking positions
