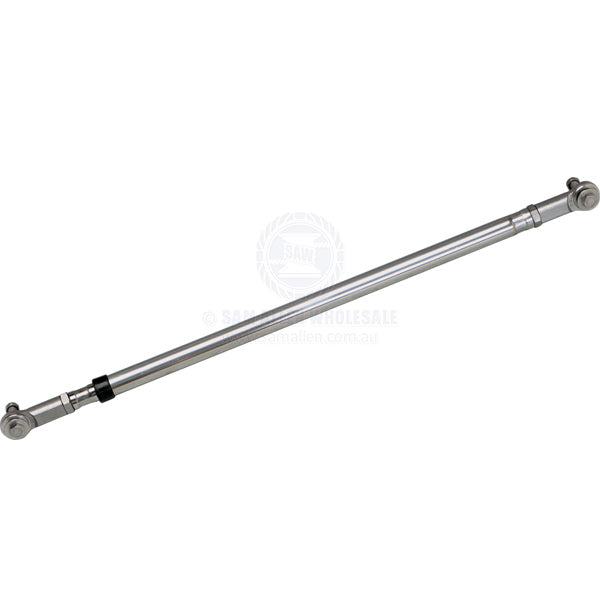

Steering tie bar A88 adjustable 650-900mm suit twin engines
Features
Tie bars suitable for twin outboard applications with single or dual cylinder up to 300 hp of maximum power.

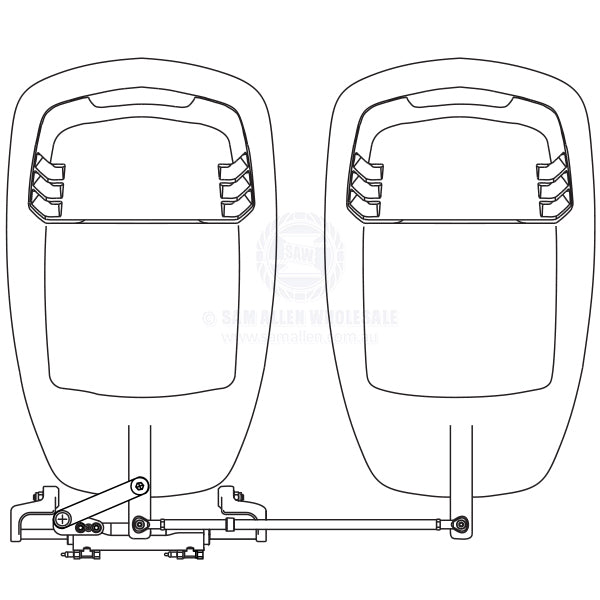

Joins tiller arm to tiller arm.
Electropolished stainless steel ball joint.
Applicable to twin outboard engines using mechanical steering also.
All stainless steel components.
Adjustable from 650mm (25.6 inch) to 950mm (37.4 inch) engine centres.
Does not allow independent tilting of motors.
May not be suitable for some modern engines with large cowlings.
Specifications
Part No.
CMW-84188
Model
A88
Engine Centre Distance
650mm to 950mm
Note
WARNING: On those applications where the clearance between engine tiller arms and cowling is not sufficient for the use of the A88, the A92 Tie Bar is recommended
