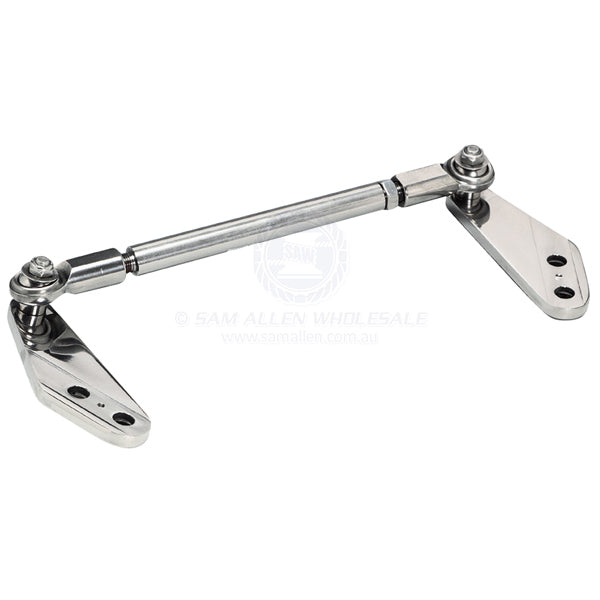

Steering tie bar A90 adjustable 660-950mm suit dual UC128 cylinders
Features

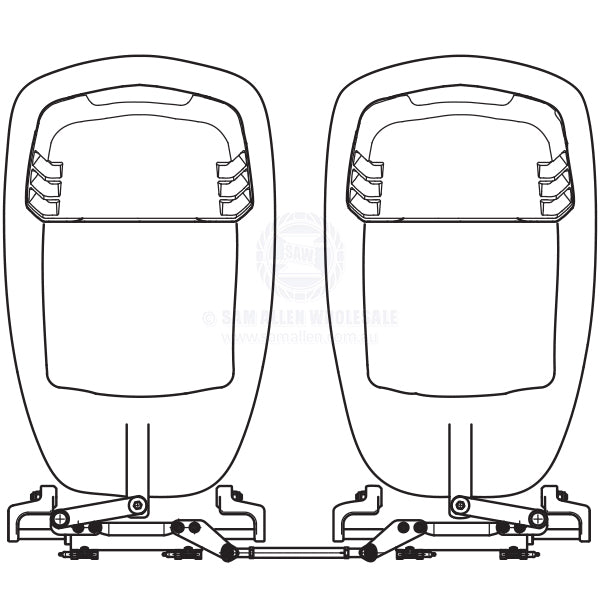

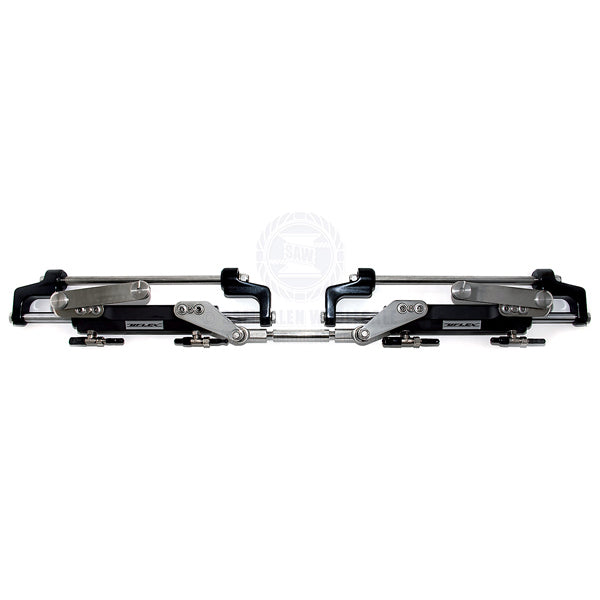

Suitable for applications with dual UC128-OBF front mount cylinder.
Joins cylinder to cylinder.
All stainless steel.
Electropolished stainless steel ball joints.
Allows to tilt the engines independently.
Applicable to engine centres from 660mm (26 inch) to 950mm (37.4 inch).
May not be suitable for some modern engines with large cowlings.
Specifications
Part No.
CMW-84190
Model
A90
Suits Cylinders
UC128-OBF
Engine Centre Distance
660mm to 950mm
Note
In the applications with dual UC128-OBF cylinder it is necessary to order a standard UC128-OBF cylinder (link arm attached to the starboard side of the cylinder) and a UC128P-OBF port cylinder (link arm attached to the port side of the cylinder).
