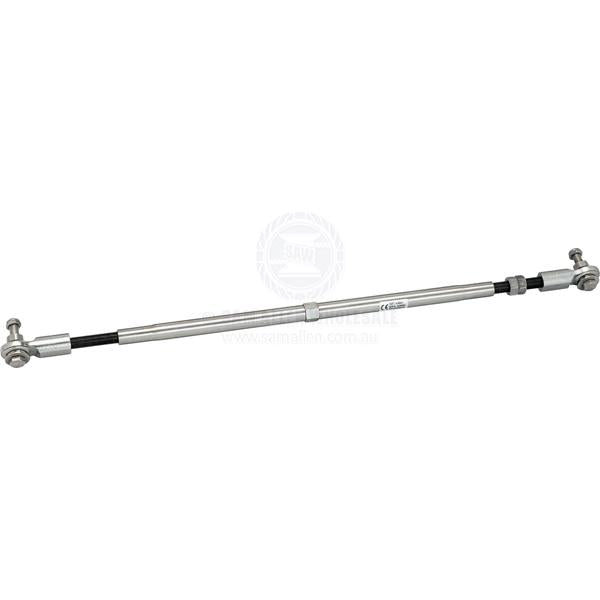

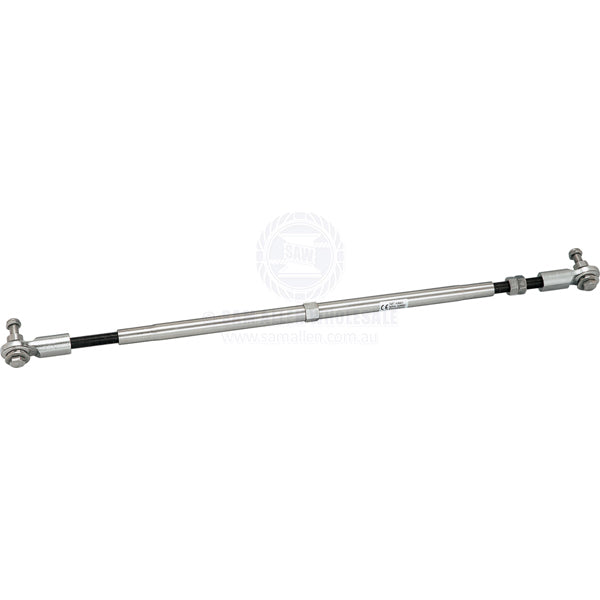

Steering tie bar A92 adjustable 550-700mm suit twin engines
Features
Applicable to twin outboard engines using mechanical or hydraulic steering up to 300 hp maximum total power.

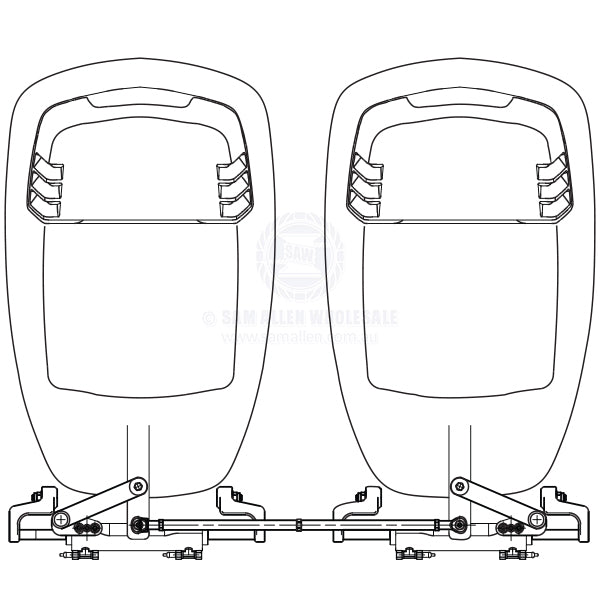

Joins tiller arm to tiller arm.
Can be used with single or dual cylinders.
Easily adjustable before or after installation
All stainless steel components
Adjustable from 550 mm (21.6 inch) to 700 mm (27.5 inch) engine centres.
May not be suitable for some modern engines with large cowlings.
Specifications
Part No.
CMW-84192
Model
A92
Engine Centre Distance
550mm to 700mm
Note
WARNING: Tiller arm positions and engine spacing may vary, potentially causing interference during tilting. Always thoroughly check tie bar installation before use.
