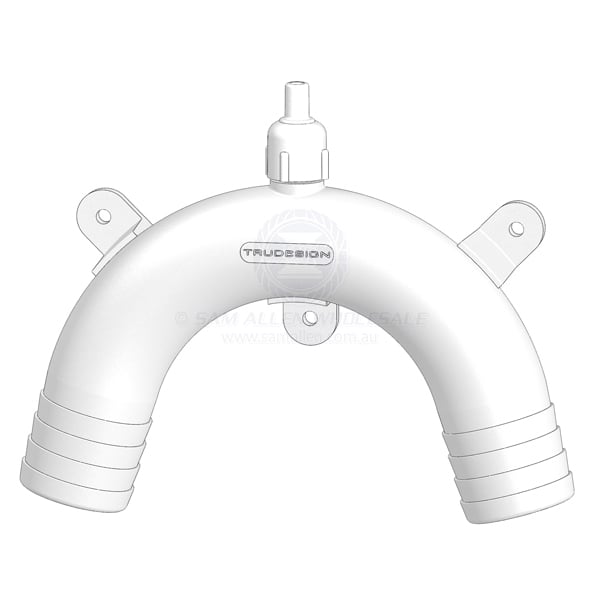

Vented loop Trudesign white with tails suit 3/4 ID hose
Specifications
Part No.
CMW-45324
Hose Tail Dia.
19mm (3/4 inch)
Colour
White
Note

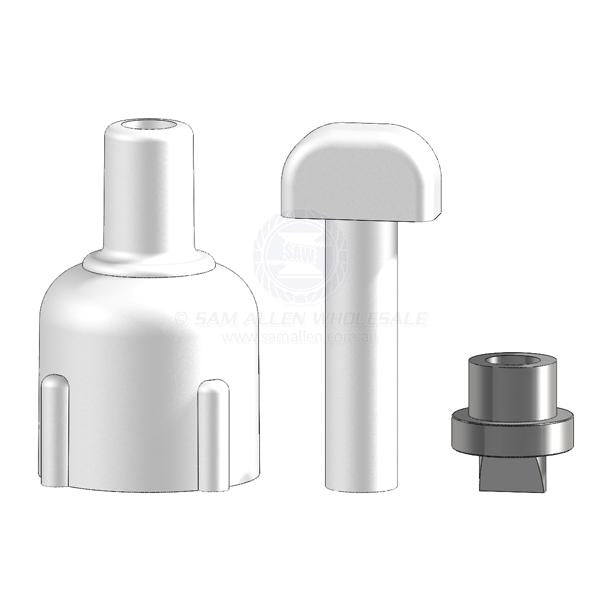

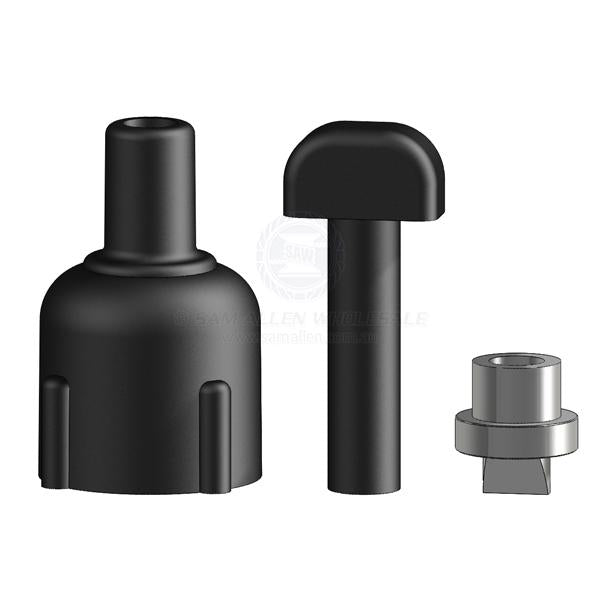

• Glass reinforced nylon composite. • Commonly used on toilet installations where the bowl is below or close to the waterline, particularly on yachts when heeled. • Mounted at the top of a loop in the hose, well above the waterline at all times. • Valve opens when pumping of water ceases allowing air to enter the inlet and outlet hoses, preventing syphoning of water back through the bowl. • Replacement cap and valve assembly are available. • For more detail see TruDesign® Vented Loops on page 543.
