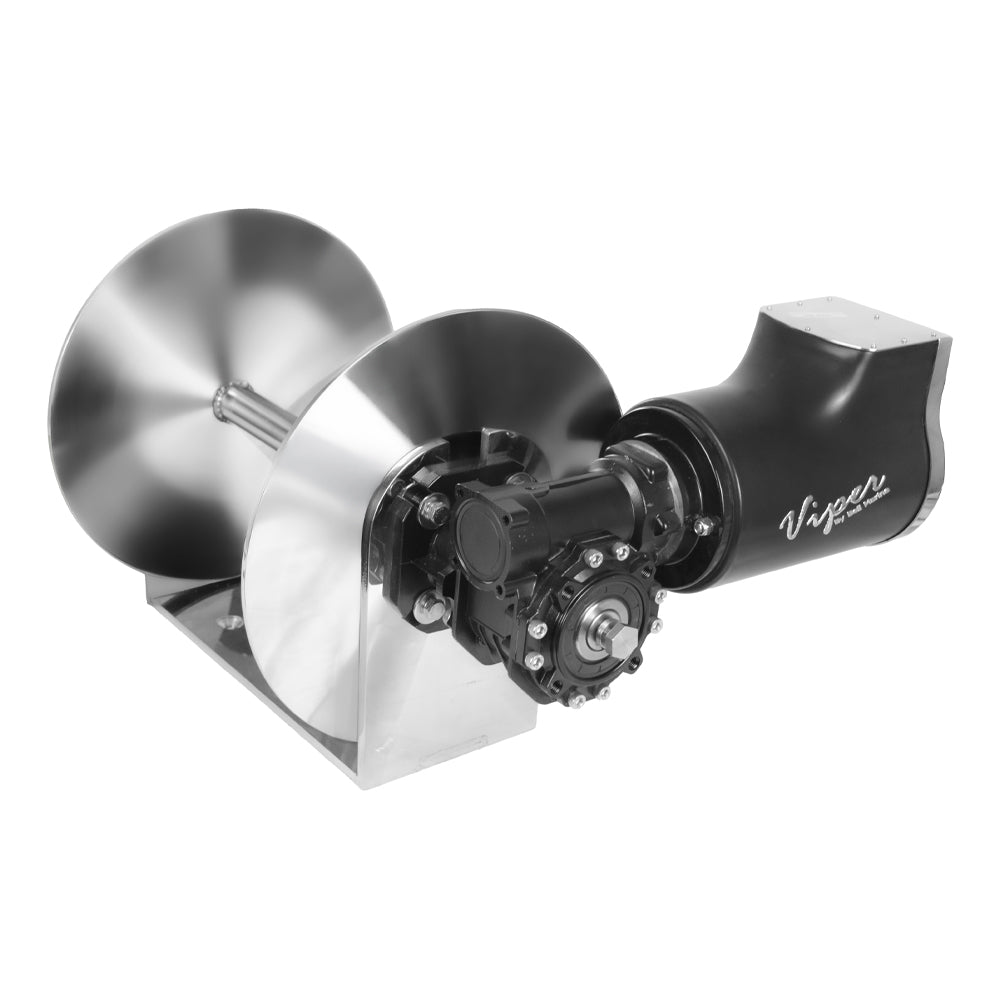

Viper Pro Series 2500 24V Electric Anchor Winch Bundle Inc 100M of 8mm 3 Strand Rope Spliced to 10M of 8mm Anchor Chain - Boats up to 15M

The Viper Pro Series 2500W 24V Anchor Winch is our most powerful electric anchor winch, developed for commercial applications, larger vessels and serious boat owners who require exceptional pulling power, capacity and reliability. Powered by a massive 2500W 24V electric motor, the Pro Series II 2500 is capable of handling heavy ground tackle and demanding deep-water anchoring applications. With a maximum load capacity of 360kg, it has the power required to retrieve large anchors and chain reliably in challenging conditions. The large-capacity drum can accommodate up to 200 metres of 6mm double-braid anchor rope or 100 metres of 8mm 3-strand rope, providing the capacity required for deeper anchoring applications. With a maximum anchor fall rate of 55 metres per minute and retrieval rate of up to 46 metres per minute, the 2500 provides fast anchor deployment combined with powerful retrieval performance. For added safety, the Pro Series II 2500 incorporates Viper’s Emergency Manual Release System, allowing the anchor to be deployed manually in the event of electrical power loss or an emergency.

Designed for vessels approximately 8 metres and above, the Pro Series 2500 is particularly well suited to commercial vessels, larger recreational boats and offshore applications where conventional smaller winches simply do not provide the required power or capacity.

Backed by Viper’s proven engineering and heavy-duty construction, the Pro Series 2500 is built for boat owners who require maximum anchoring performance.

KEY FEATURES
Viper’s most powerful electric anchor winch
Massive 2500W electric motor
24V operation
Designed for commercial and larger vessel applications
Suitable for vessels approximately 8 metres plus
Rope capacity up to 200m of 6mm double-braid rope
Rope capacity up to 100m of 8mm 3-strand rope
Designed for use with up to 10m+ of 8mm short-link anchor chain
Maximum fall rate: 55m/min
Maximum retrieval rate: 46m/min
Maximum load: 360kg
Emergency Manual Release System
Approximately .5m of 3 B&S power cable supplied
Cable joining connectors supplied
5mm stainless steel sandwich plate
All fixing hardware supplied
Installation instructions and wiring diagrams included
Winch weight: approximately 28kg
Rope and chain kit not covered by winch warranty
WHAT’S INCLUDED:
30004-S Viper Pro Series II 2500W 24V Anchor Winch
30026 100M of 3 Strand Rope Spliced to 10M of 8mm Short Link Anchor Chain
30019 Large Viper Pro Series Anchor Swivel
30002 Large Viper Deluxe Anchor Roller
30024 400 Amp Reversing Solenoid
90021 LED Illuminated Marine Rocker Switch
90046 Viper Laser-Etched LED Illuminated Switch Cover
30025 135 Amp Flush Mount Circuit Breaker with Rubber Seal
30051 Single LED Switch Stainless Steel Face Plate
30052 Combo LED Switch and Circuit Breaker Stainless Steel Face Plate

For commercial vessels, larger boats and demanding deep-water anchoring, the Viper Pro Series 2500 delivers the maximum power and capacity available in the Viper electric anchor winch range.
