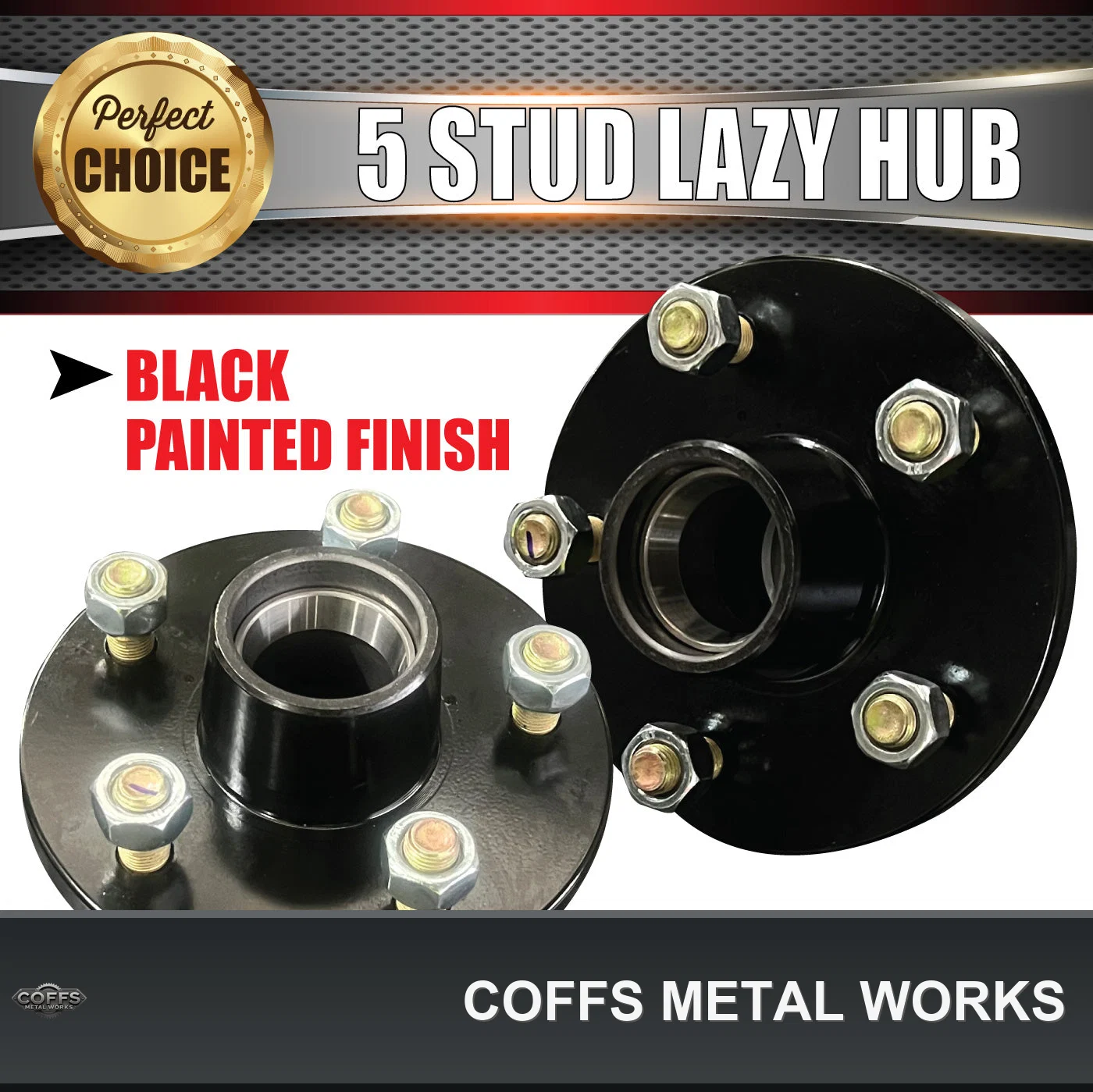

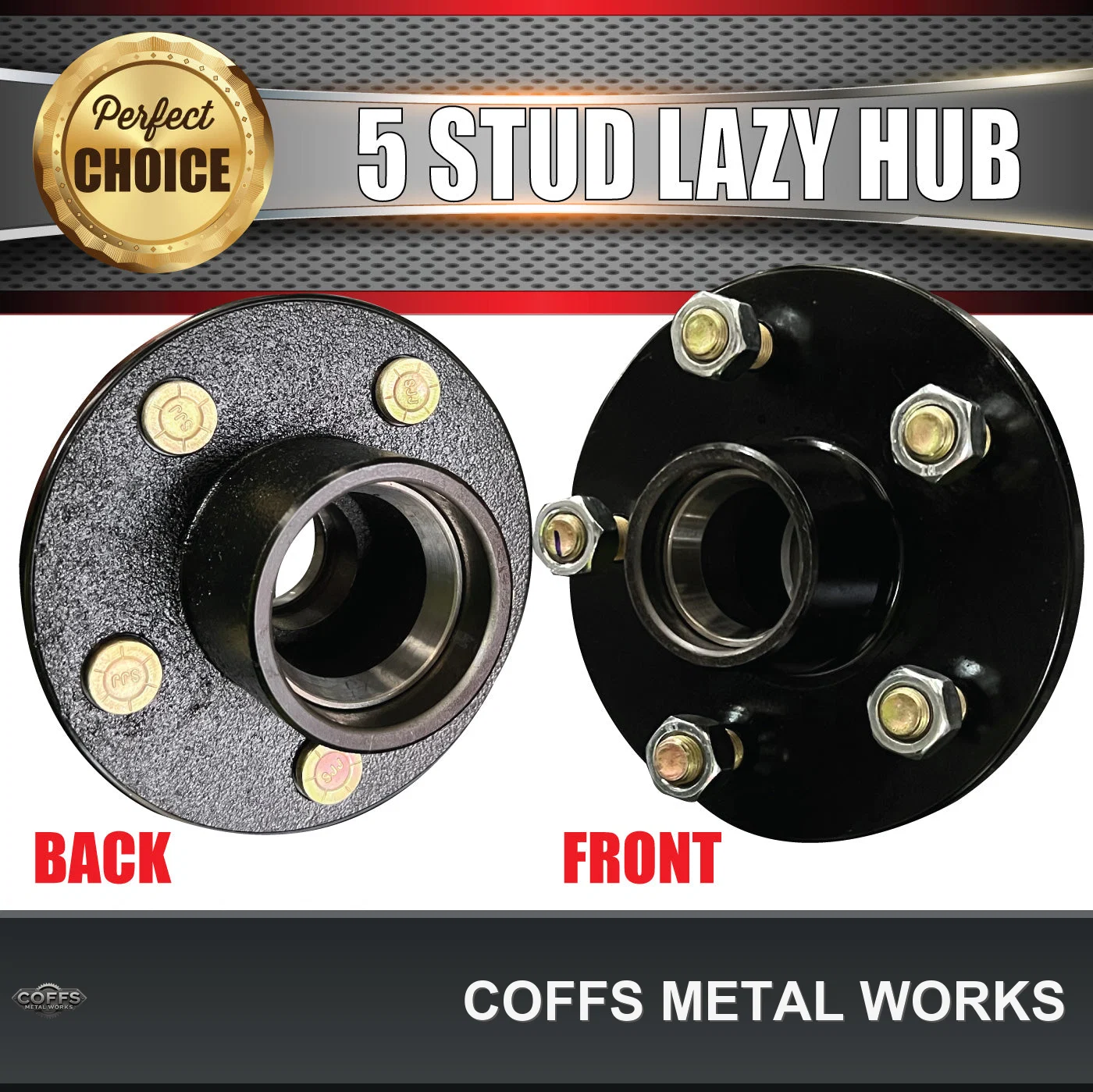

X2 HQ HOLDEN PATTERN TRAILER HUBS
WITH LM (HOLDEN) BEARING KITS

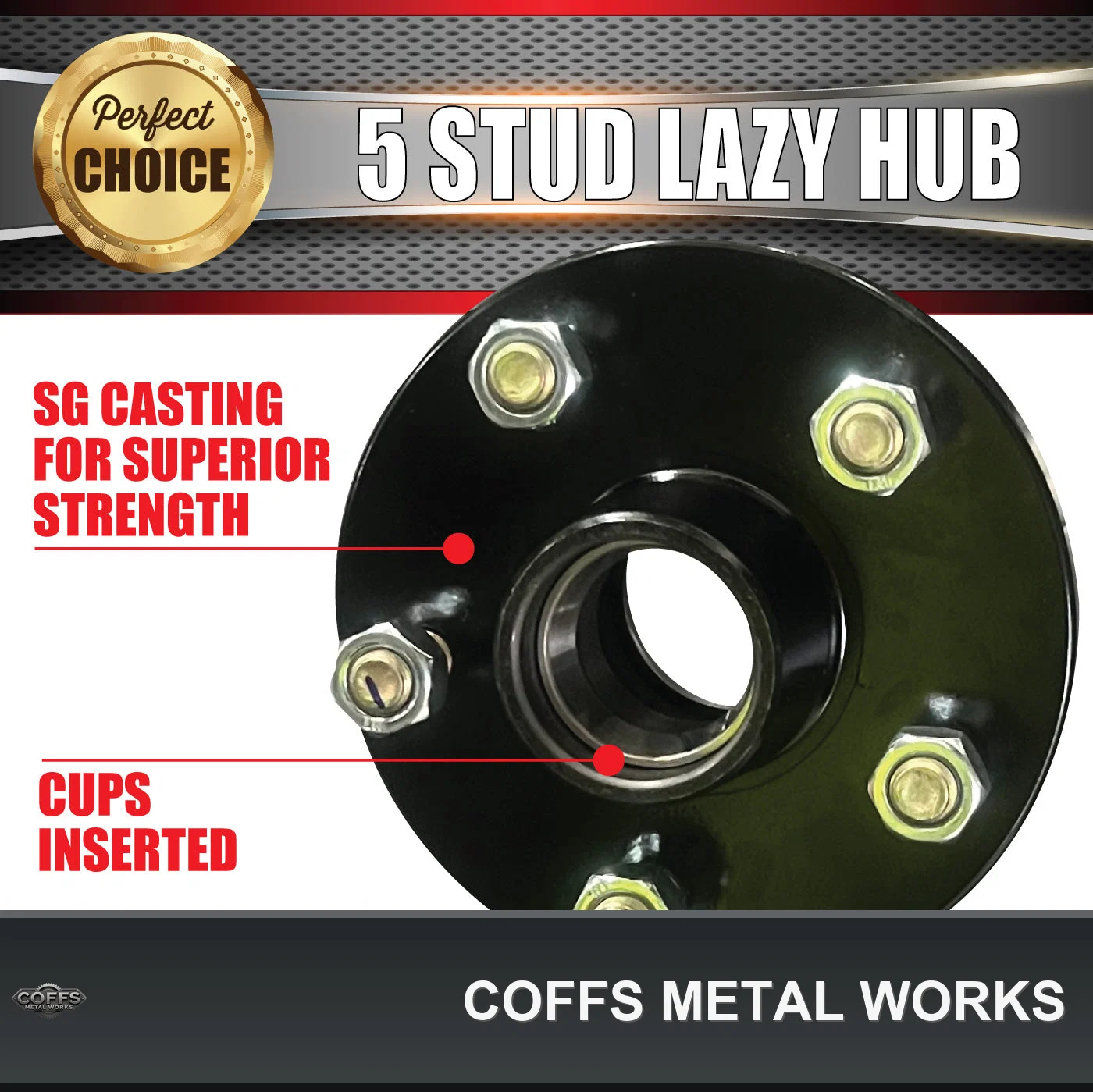

(SG casting. much stronger than grey iron casting)
2x 5 STUD HQ HOLDEN STEEL HUBS WITH STUDS AND NUTS
PCD: 5/120.65
7/16" STUDS AND NUTS
HUB DIAMETER: 152.4MM
MATERIAL: S.G CASTING
FINISH: BLACK PAINTED
70.91MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD
SUITS AXLES: 39MM AND 40MM

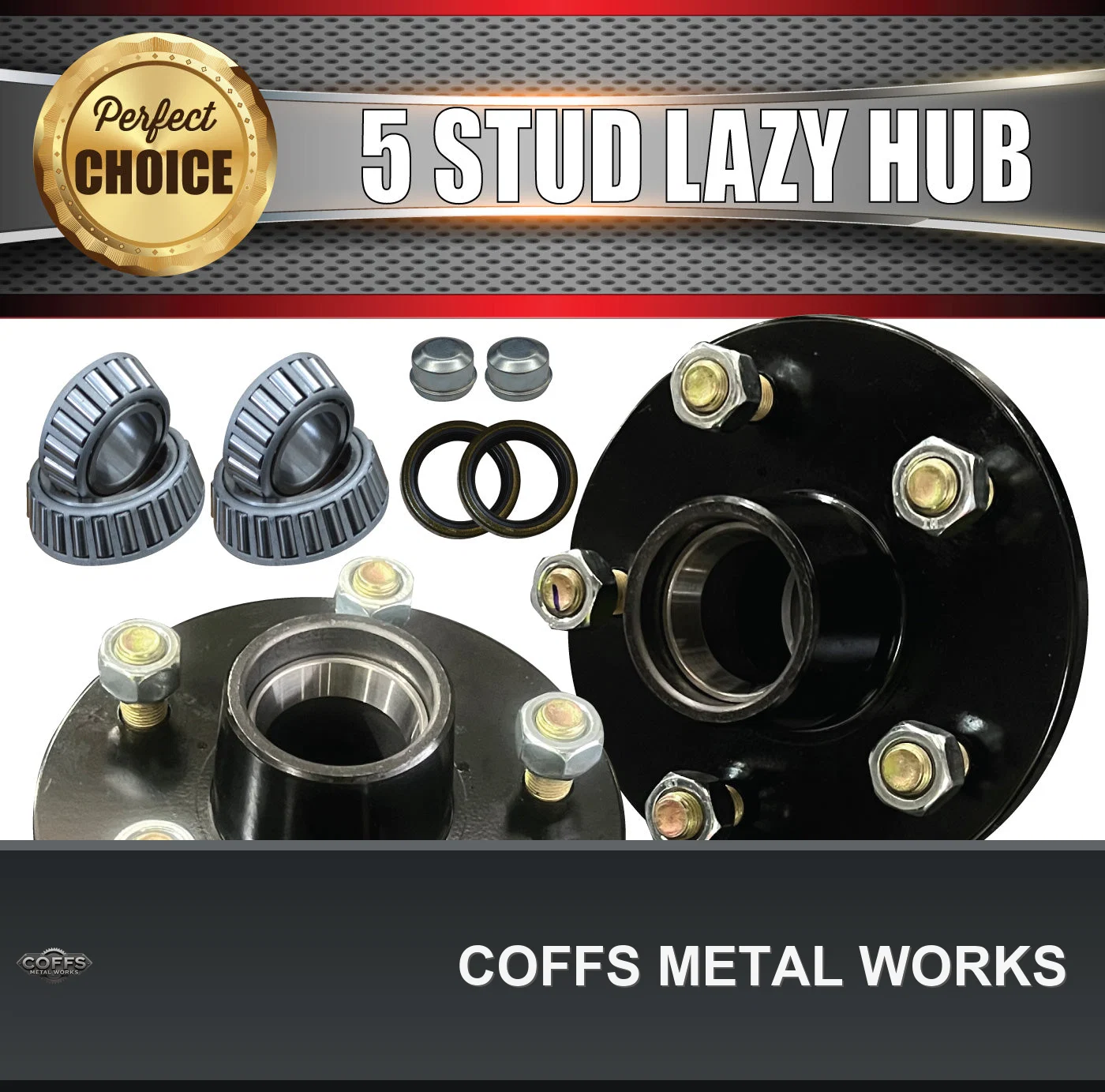

2X LM BEARING SETS
2X INNER BEARINGS ID:31.7MM (LM67048)
2X OUTER BEARINGS ID:19MM (LM11949)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X LM REAR SEALS (28500)
2X 45MM DUST CAPS

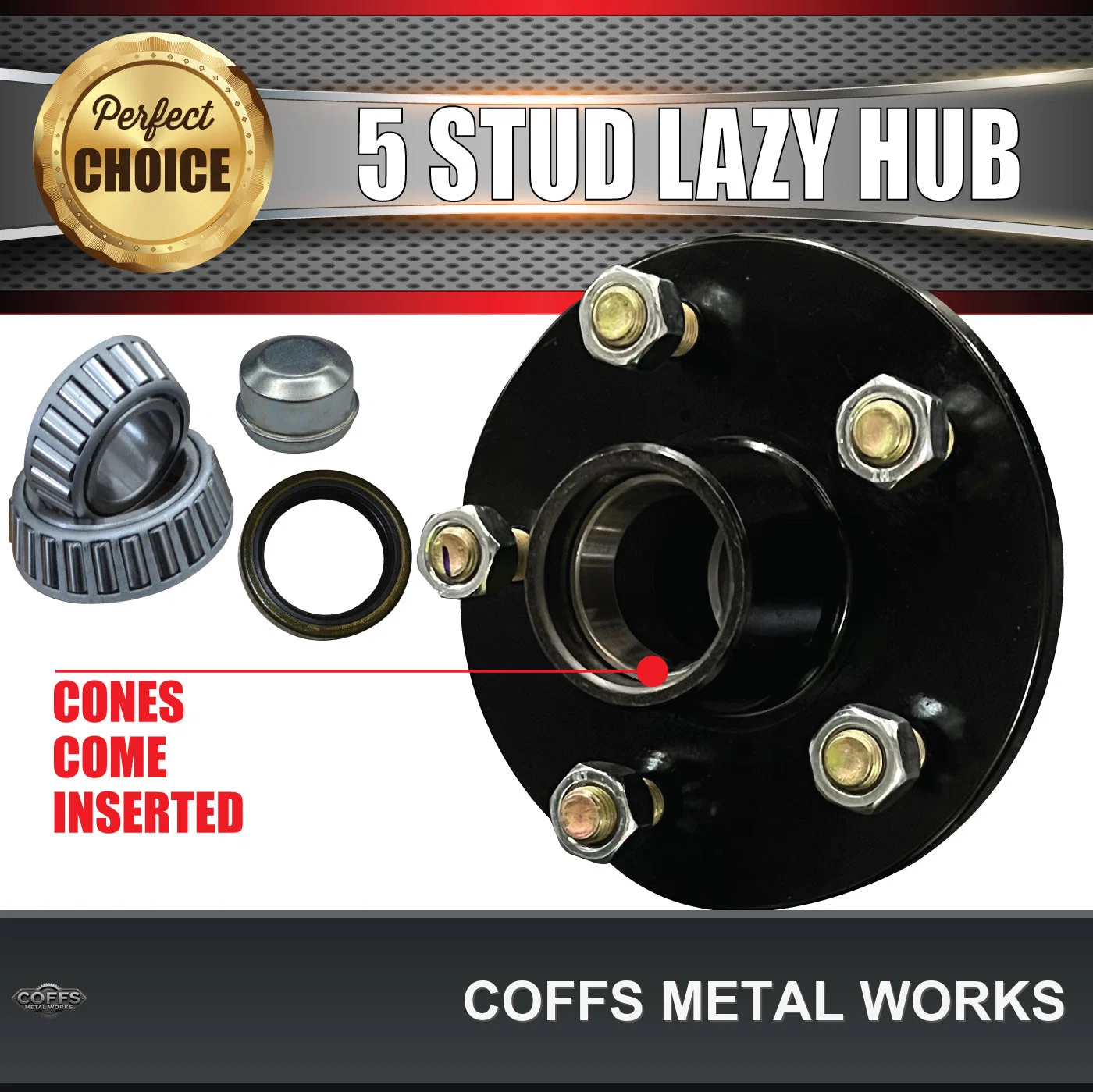

HUBS COME WITH CUPS INSERTED
