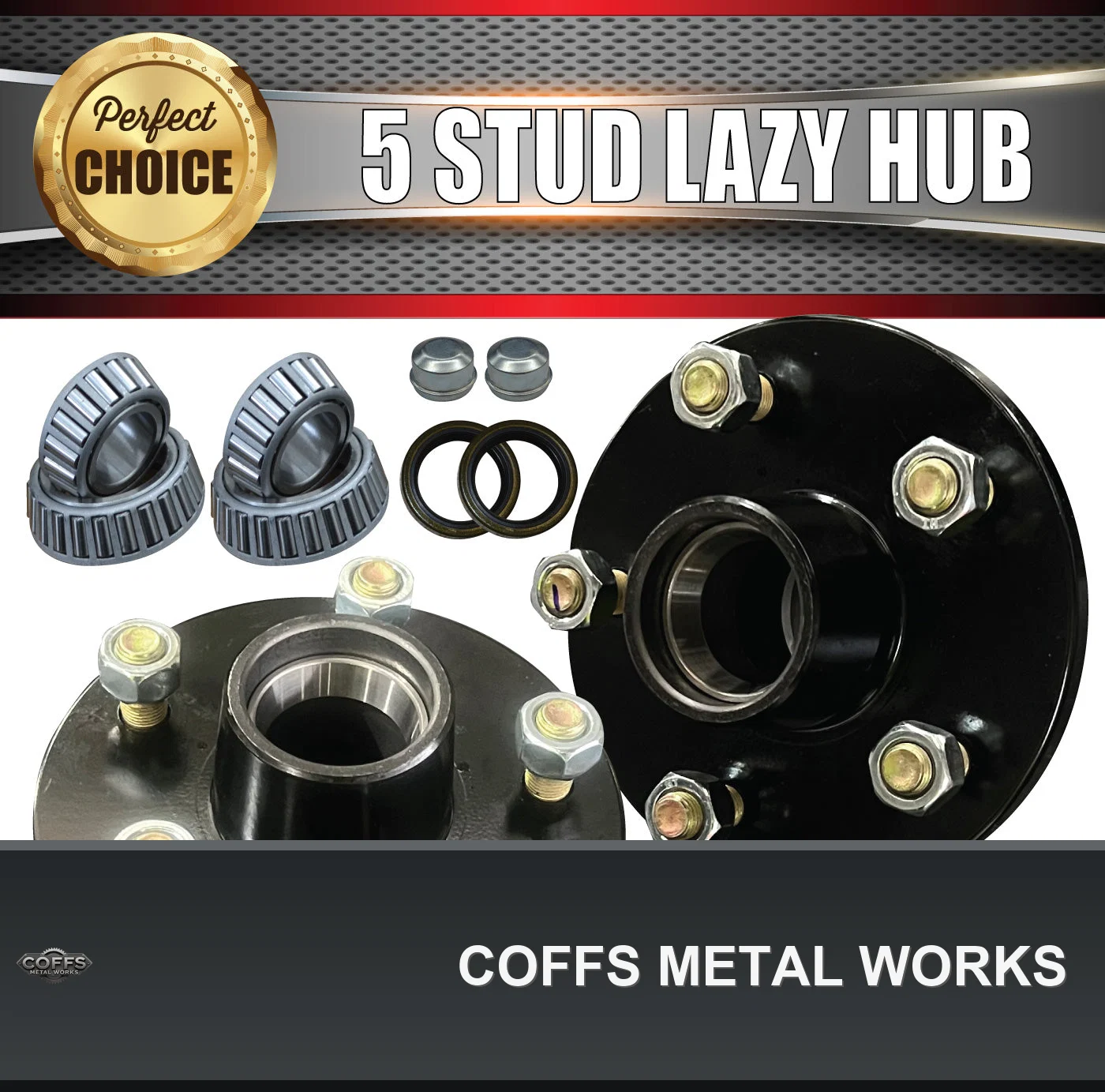

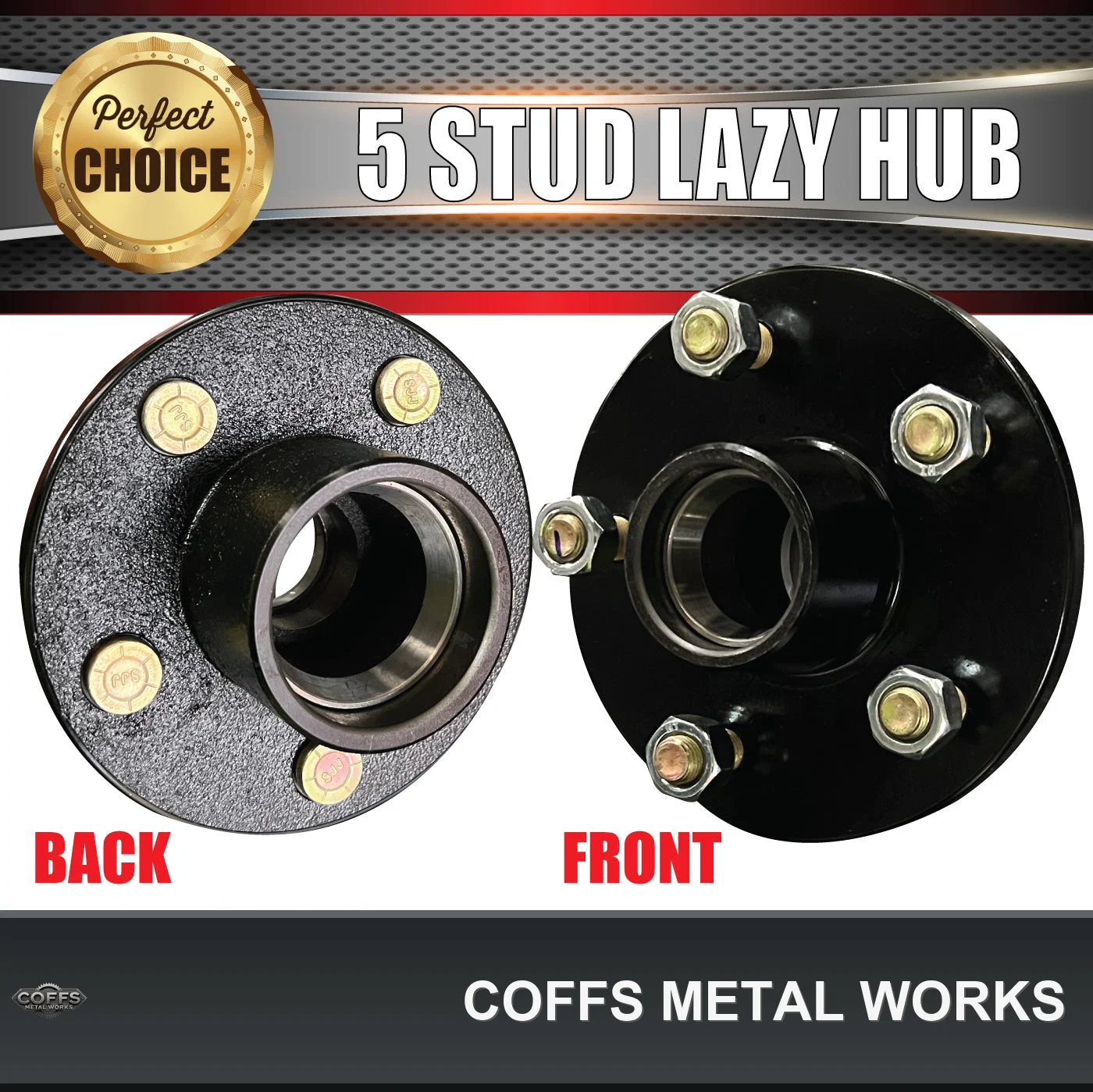

X2 HQ HOLDEN PATTERN TRAILER HUBS
WITH SLIMLINE (FORD) BEARING KITS

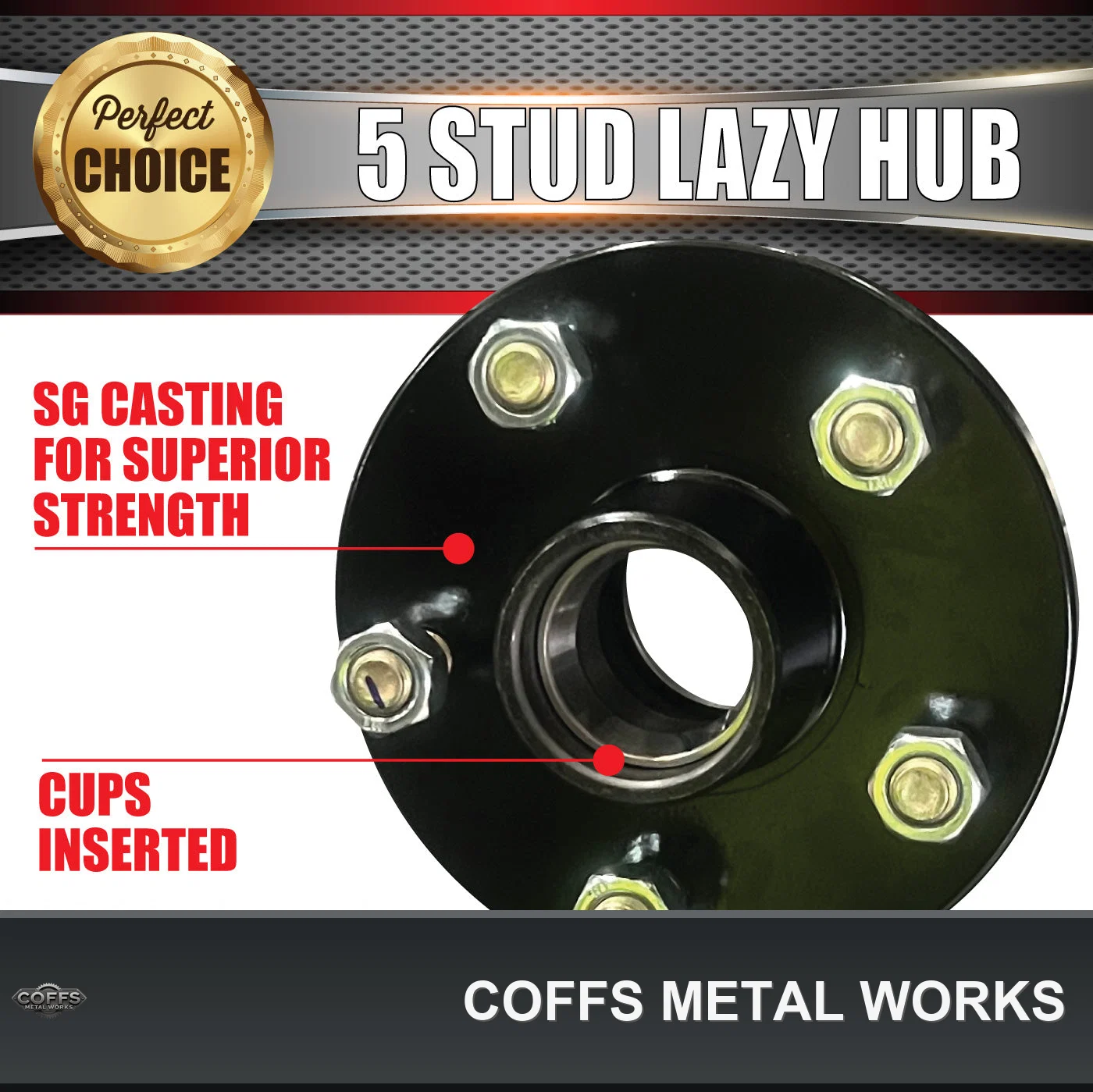

(SG casting. much stronger than grey iron casting)
2x 5 STUD HQ HOLDEN STEEL HUBS WITH STUDS AND NUTS
PCD: 5/120.65
7/16" STUDS AND NUTS
HUB DIAMETER: 152.4MM
MATERIAL: S.G CASTING

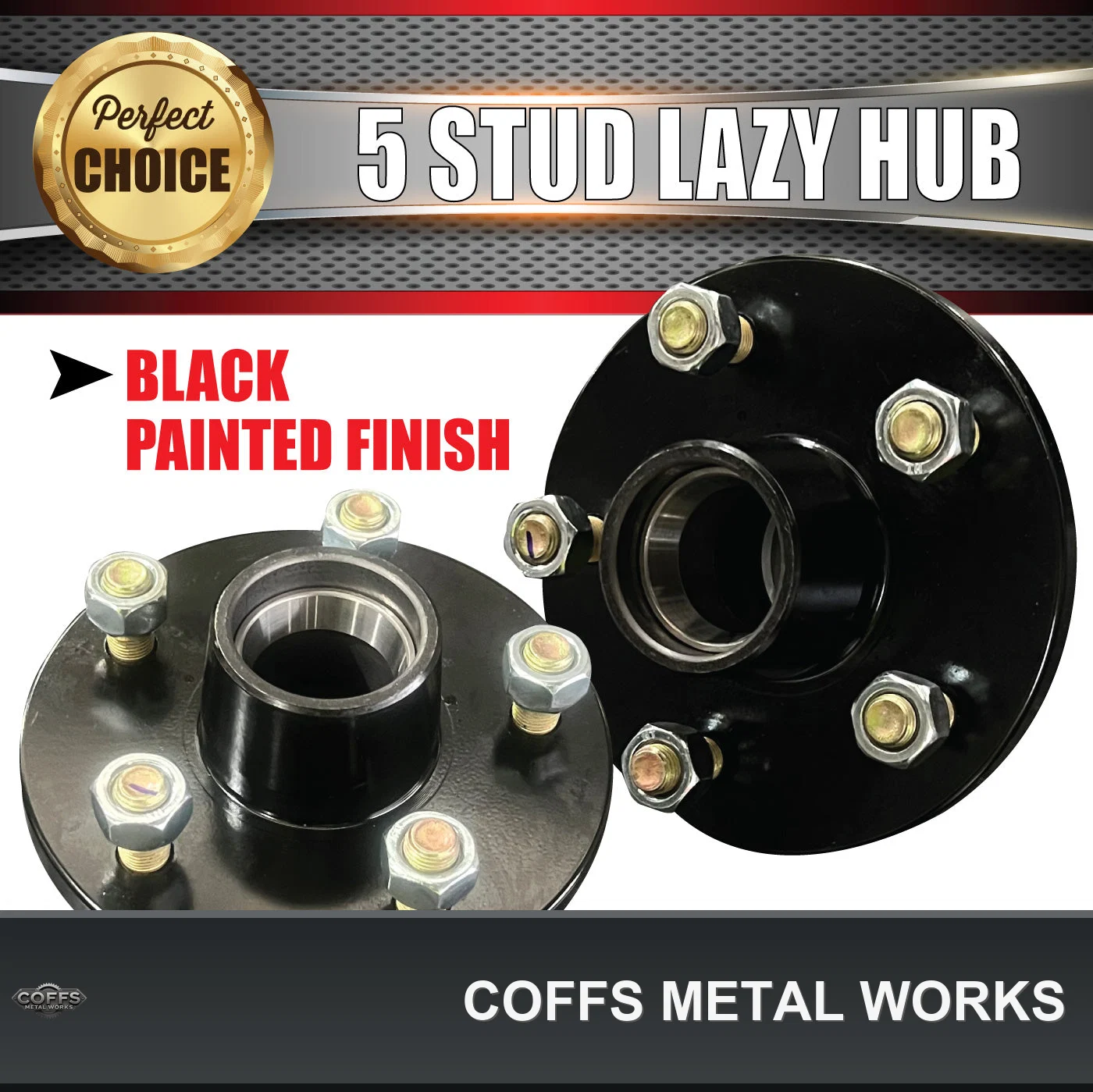

FINISH: BLACK PAINTED
70.91MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD
SUITS AXLES: 39MM AND 40MM
2X SL BEARING SETS
2X INNER BEARINGS ID:34.9MM (LM68149)
2X OUTER BEARINGS ID:19MM (LM12749)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X LM REAR SEALS (28550)
2X 45MM DUST CAPS

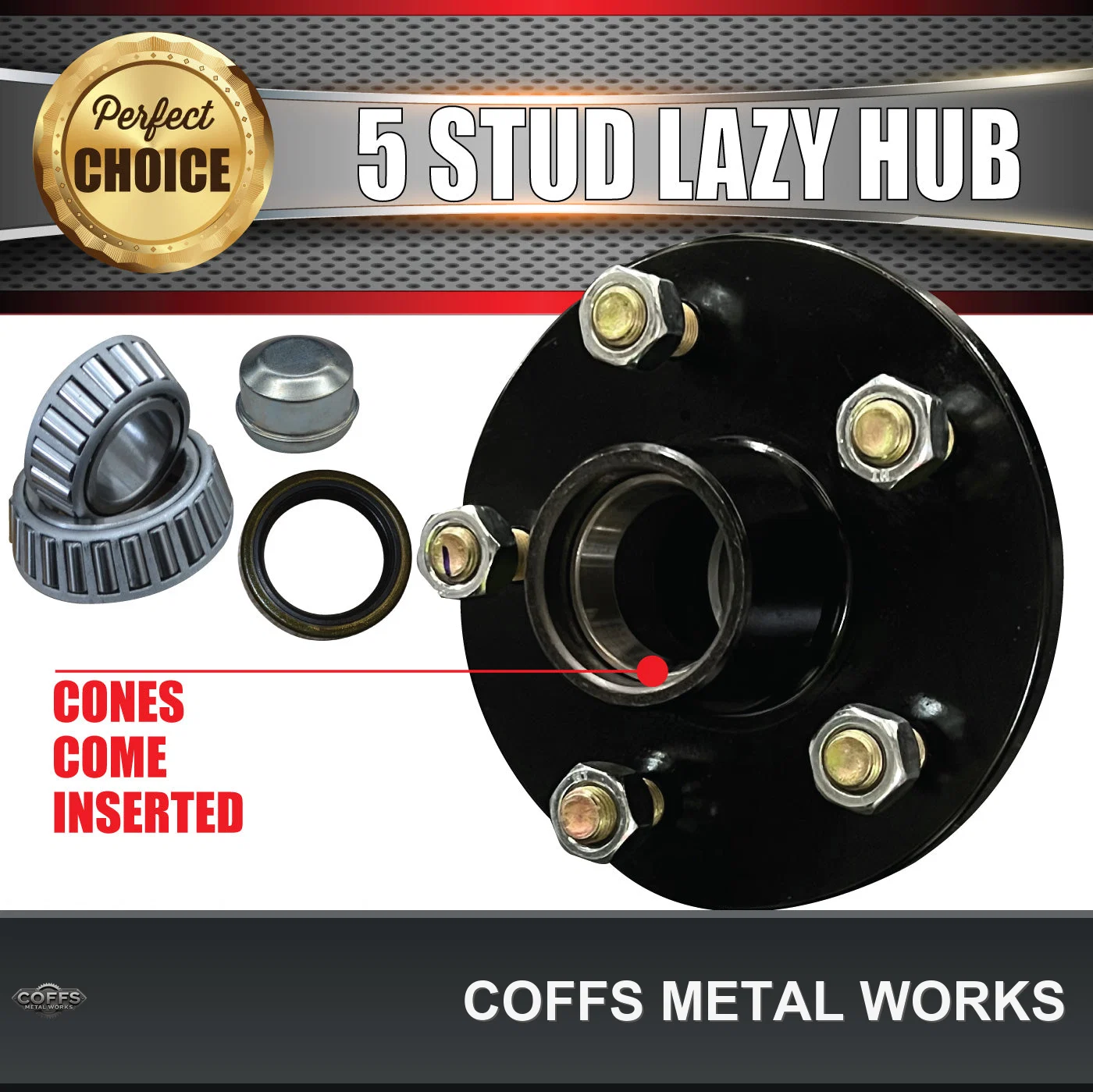

HUBS COME WITH CUPS INSERTED
