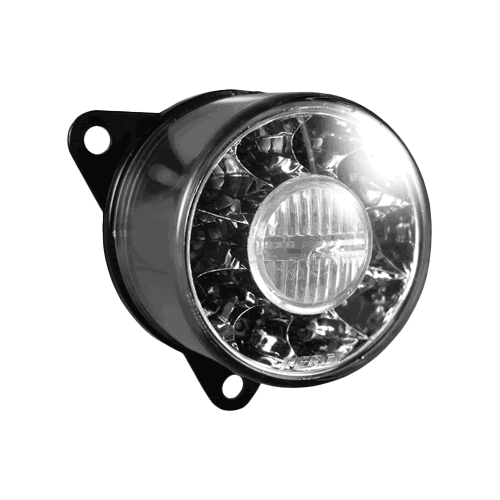

ZZ Series 55mm LED Clear Lens Flasher Ring Lamp (24V)
ZZ Series 55mm LED Clear Lens Flasher Ring Lamp (24V)
Regular price
$89.95 AUD
Regular price
Sale price
$89.95 AUD
Quantity
Couldn't load pickup availability
Description
ZZ Series lamps use state-of-the-art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm, and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position/indicator/reserve / DRL / park and fog making the applications almost limitless. The 95mm stop / rear position series features high-output LEDs for high reliability and compliance for rear positions. Suited to OEM and commercial applications.
Features
- State of the art design & optics to match modern vehicle styles
- Use individually or with 95mm and 122mm ZZ series lamps
- High reliability popular 55mm package
- Coloured or Clear lens options
- Emark & ADR Compliant
Specifications
| Voltage: | 12V, 24V or 9-33V | ||
| Power: | DI | 12V | 1.5W |
| 24V | |||
| 9-33V | 3.3W | ||
| REV | 12V | 3.2W | |
| 24V | |||
| STOP RED | 12V | 1.7W | |
| 24V | |||
| STOP CLEAR | 12V | 0.6W | |
| 24V | |||
| Lens: | PMMA | ||
| Housing: | ABS/Polycarbonate | ||
| Mounting: | Screw | ||
| Environmental: | IP67 Sealed |
Parts List
| CMW-FD101SZZ-5-2-AA | Front Indicator Amber Lens 10-33V |
| CMW-FD102SZZ-5-2-AA | Front Indicator Lamp Clear Lens 10-33V |
| CMW-FM055SZZ-2-2-AA | Front Position Lamp Clear Lens 12V |
| CMW-RD101SZZ-2-2-AA | Rear Indicator Amber Lens 12V |
| CMW-RD101SZZ-4-2-AA | Rear Indicator Amber Lens w/Connector 24V |
| CMW-RD101SZZ-4-2-BB | Rear Indicator Amber Lens w/Connector 24V |
| CMW-RD102SZZ-2-2-AA | Rear Indicator Clear Lens 12V |
| CMW-RD102SZZ-4-2-AA | LED Rear Indicator Clear Lens 24V |
| CMW-ST101SZZ-2-2-AA | Stop / Tail lamp Red Lens 12V |
| CMW-ST101SZZ-4-2-AA | Stop / Tail 24 volt Red Lens 24V |
| CMW-ST102SZZ-2-2-AA | Stop / Tail Clear Lens 12V |
| CMW-ST102SZZ-4-2-AA | Stop / Tail Clear Lens 24V |
| CMW-ST102SZZ-4-2-BB | Stop / Tail Clear Lens 24V |
| CMW-RF102SZZ-5-2-AA | Rear Fog Clear Lens 9-33V |
| CMW-RV102SZZ-5-2-AA | Rear Reverse Clear Lens 9-33V |
