Coffs Metal Works

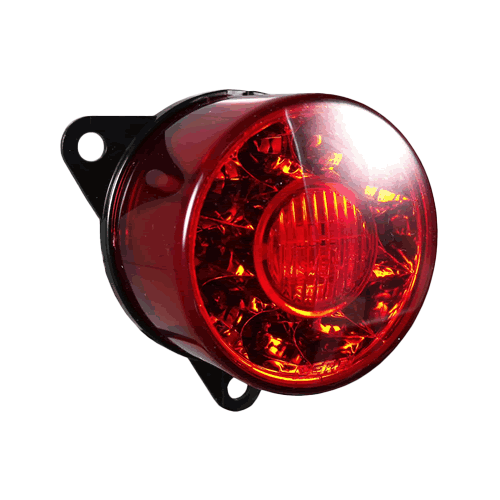

ZZ Series 55mm LED Red Lens Stop / Tail Lamp (12V)
ZZ Series 55mm LED Red Lens Stop / Tail Lamp (12V)
Regular price
$89.95 AUD
Regular price
Sale price
$89.95 AUD
Quantity
Couldn't load pickup availability
Description
ZZ Series lamps use state of the art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position / indicator / reverse / DRL / park and fog making the applications almost limitless. The 55mm stop / rear position series feature high output LED's for high reliability and compliance for rear positions. Suited to OEM and commercial applications.
Features
- State of the art design & optics to match modern vehicle styles
- Use individually or with 95mm and 122mm ZZ series lamps
- Compact high reliability 55mm package
- Coloured or Clear lens options
- Fully ADR Compliant
Specifications
| Applications | •Trucks •Rigid Bodies •Bus & Coach •Cars •Classic Cars •Custom Builds |
| Functions | Stop / Rear Position |
| Voltage | 9-33V DC VarivoltÆ / 12V Only / 24V Options |
| Wattage | Stop:1.7W@12VRear Position:0.6W@12V |
| Mounting | 3 Point Rear Mount |
| Materials | High Impact PMMA Lens Polycarbonate Body |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M |
| Dimensions | 55 x 38mm |
| ADR Compliance | Stop:49/00, Rear Position:49/00 |
| Homologation Certification | ECE (Emark) |
Parts List
| CMW-ST101SZZ-2-2-AA | Stop / Rear Position 55MM Round Red 12V 0.5M Box |
| CMW-ST101SZZ-4-2-AA | Stop / Rear Position 55MM Round Red 24V 0.5M Box |
| CMW-ST102SZZ-2-2-AA | Stop / Rear Position 55MM Round Clear 12V 0.5M Box |
| CMW-ST102SZZ-4-2-AA | Stop / Rear Position 55MM Round Clear 24V 0.5M Box |
| CMW-ST102SZZ-4-2-BB | LED Stop / Tail lamp (55mm dia 24 volt) Clear Lens |
