Coffs Metal Works

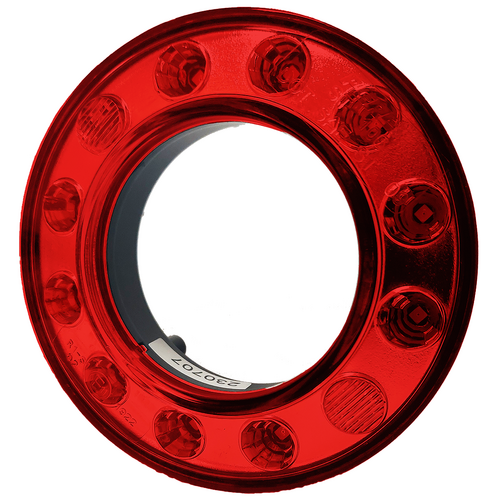

ZZ Series 95mm LED Red Lens Stop / Tail Lamp (12V)
ZZ Series 95mm LED Red Lens Stop / Tail Lamp (12V)
Regular price
$94.50 AUD
Regular price
Sale price
$94.50 AUD
Quantity
Couldn't load pickup availability
Description
ZZ Series lamps use state-of-the-art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm, and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position/indicator/reserve / DRL / park and fog making the applications almost limitless. The 95mm stop / rear position series features high-output leds for high reliability and compliance for rear positions. Suited to OEM and commercial applications.
Features
- State of the art design & optics to match modern vehicle styles
- Use individually or with 95mm and 122mm ZZ series lamps
- High reliability popular 55mm package
- Coloured or Clear lens options
- Emark & ADR Compliant
Specifications
| Voltage: | 12V, 24V or 9-33V | ||
| Power: | DRL | 12V | 4.4W |
| FRONT | 12V | 0.6W | |
| DI | 12V | 1.5W | |
| 24V | 2W | ||
| STOP | 12V | 1.5W | |
| 24V | 2W | ||
| TAIL | 12V | 1W | |
| 24V | |||
| Lens: | PMMA | ||
| Housing: | ABS/Polycarbonate | ||
| Mounting: | Screw | ||
| Environmental: | IP67 Sealed |
Parts List
| CMW-DL103SZZ-5-2-AA | Front Position Daytime Running Lamp 9-33V |
| CMW-ST105SZZ-2-2-AA | Stop / Tail Ring Clear Lens 12V |
| CMW-ST105SZZ-4-2-AA | Stop / Tail Ring Clear Lens 24V |
| CMW-ST106SZZ-2-2-AA | Stop /Tail Ring Red Lens 12V |
| CMW-ST106SZZ-4-2-AA | Stop /Tail Ring Red Lens 24V |
| CMW-RD105SZZ-2-2-AA | Rear Indicator Ring Clear Lens 12V |
| CMW-RD105SZZ-4-2-AA | Rear Indicator Ring Clear Lens 24V |
| CMW-RD106SZZ-2-2-AA | Rear Indicator Ring Amber Lens 12V |
| CMW-RD106SZZ-4-2-AA | Rear Indicator Ring Amber Lens 24V |
| CMW-RR095SZZ-8-2-AA | 122mm dia Reflex Reflector |
