10" Trailer Caravan Electric Drum Brake Kit & 45MM Sleeve Stub Axles.

10" ELECTRIC DRUM BRAKE KIT

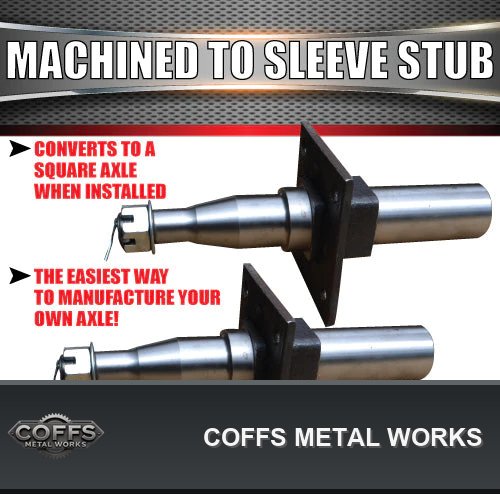

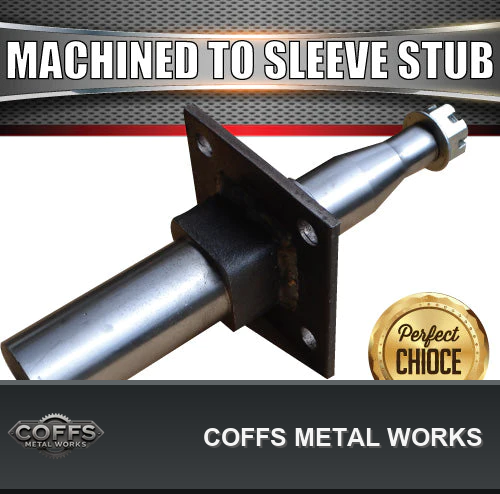

WITH 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION
RATED 1400KG

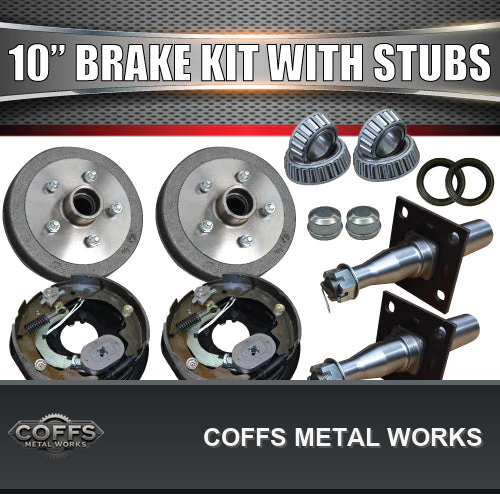

FULL KIT INCLUDES
2X 45MM X 250MM SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION WITH ELECTRIC BRAKE MOUNTS WELDED
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE IN 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, HQ OR 5 STUD HT)
S.G CASTING (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.

2X SL BEARING SETS
2X INNER BEARINGS ID:34.9MM (L68149)
2XOUTER BEARINGS ID:22MM (L12710)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X SLIMLINE REAR SEALS
2X DUST CAPS

INFORMATION REQUIRED
STUD PATTERN: (see options below)

FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE:
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ:
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER:
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER:
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches

6 STUD D40/NP300:
--- PCD: 6x114.3mm
--- Stud Thickness: 1/2" Inches

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0
