10" Trailer Caravan Electric Drum Brake Kit Including 40mm Stub Axles with Mounts Welded

10" ELECTRIC DRUM BRAKE KIT
& 40MM X 250MM STUB AXLE
RATED 1000KG

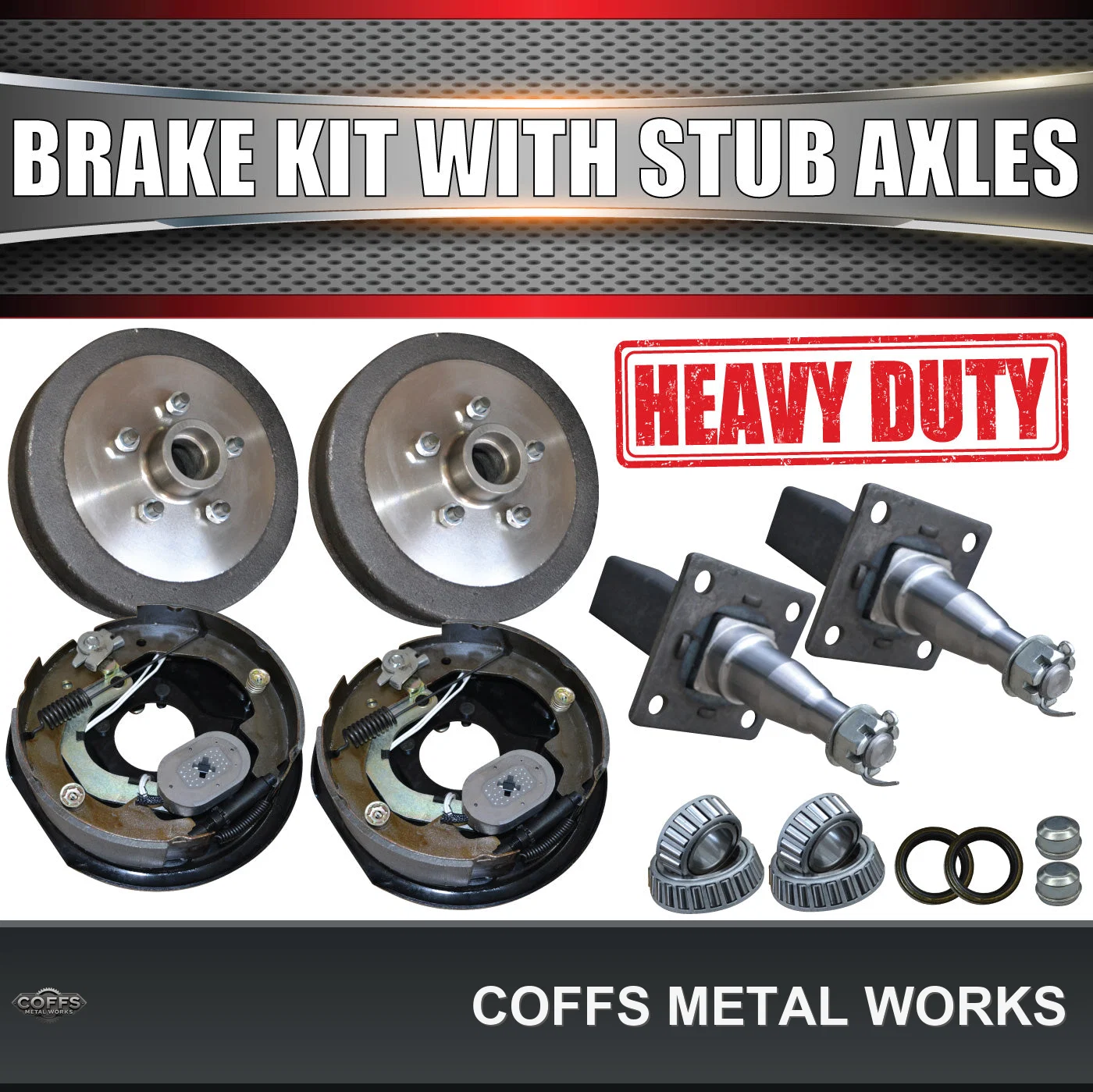

FULL KIT INCLUDES
2X 40X250MM STUB AXLES WITH ELECTRIC MOUNTS WELDED TO SUIT BRAKE KIT

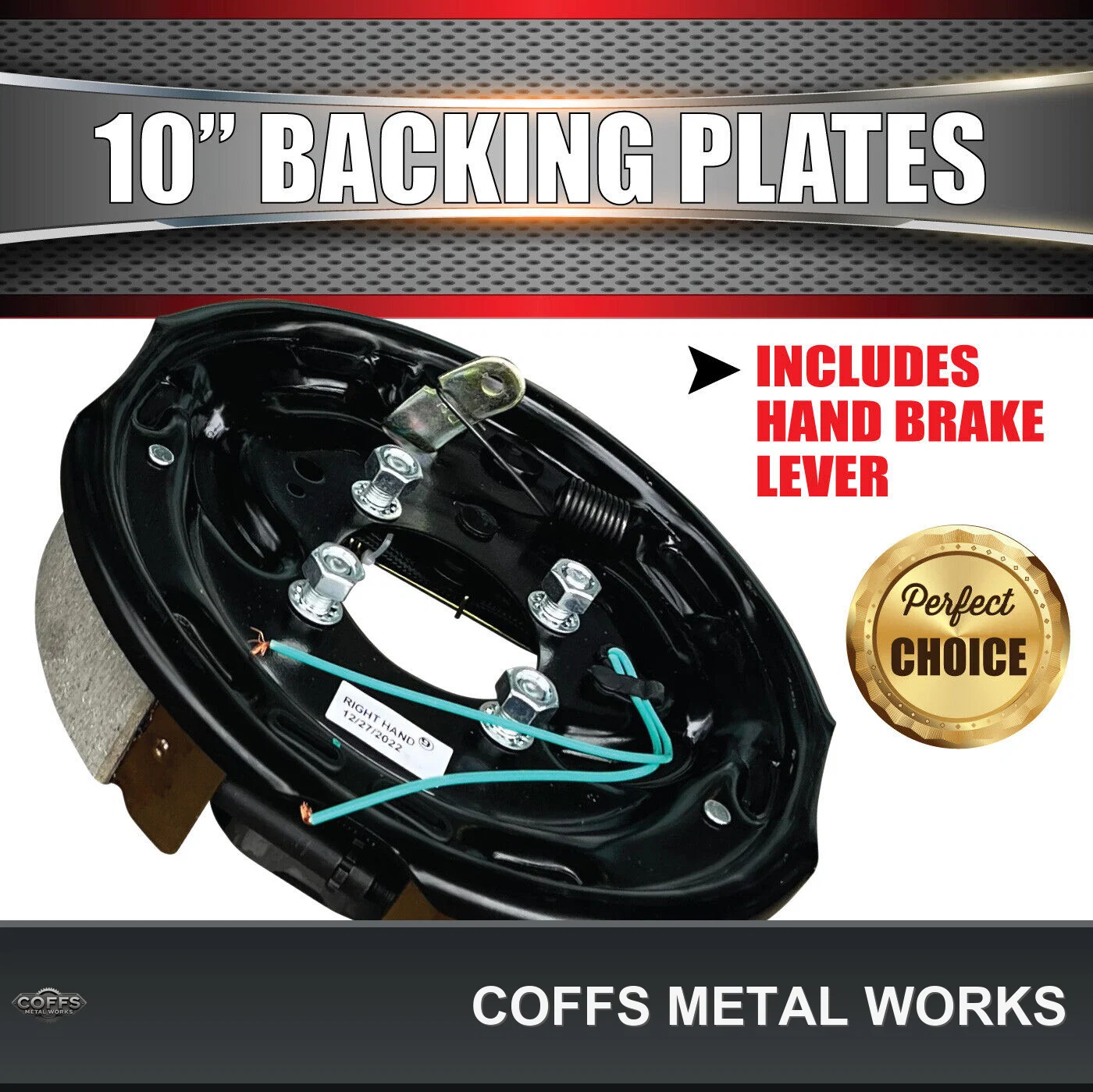

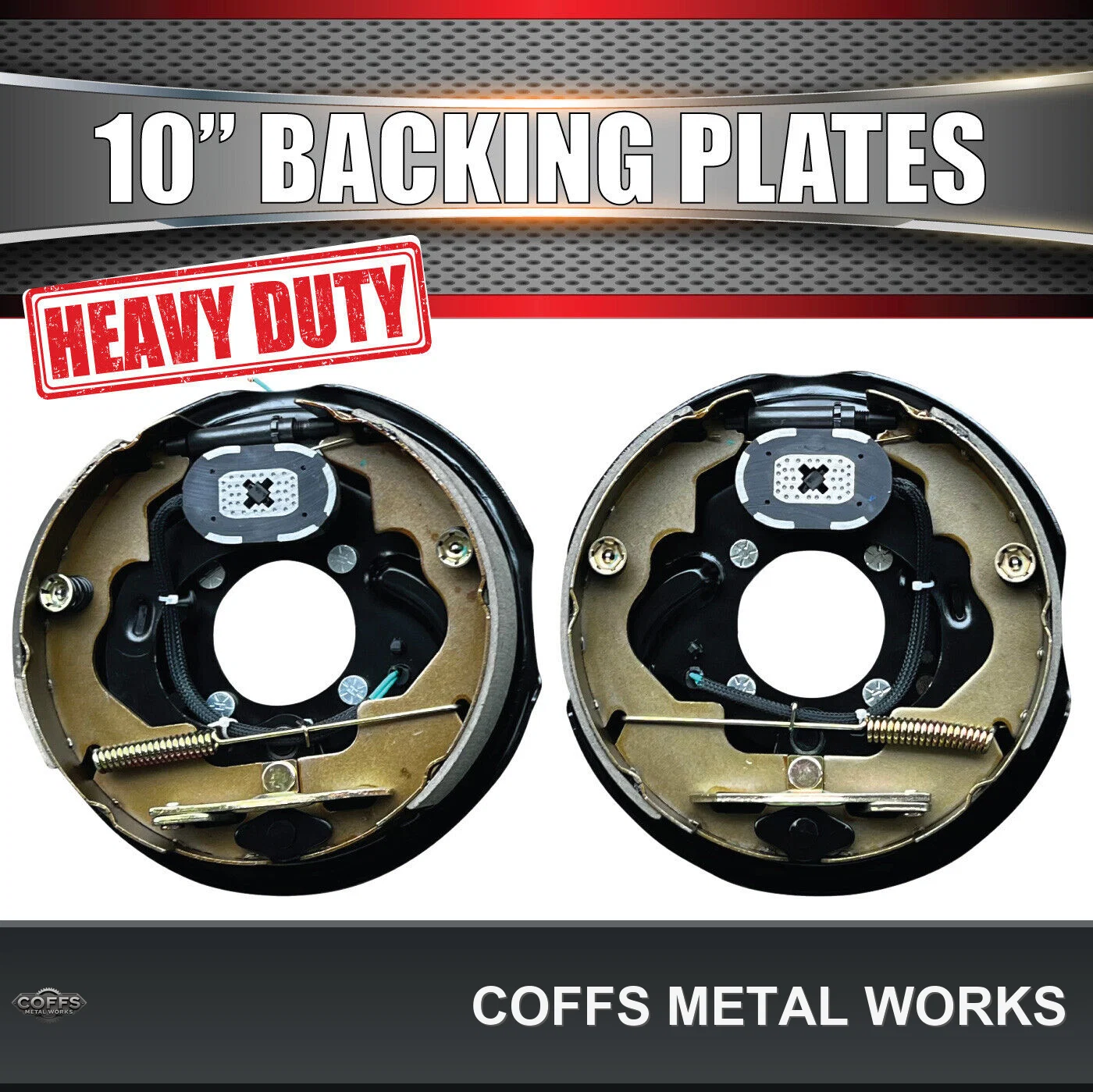

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

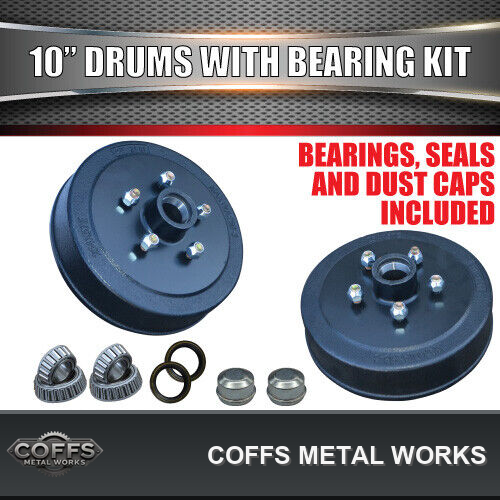

2X 10" HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, HQ OR 5 STUD HT)
S.G CASTING DRUMS (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.

2X LM BEARING SETS
2X INNER BEARINGS ID:31.7MM (LM67048)
2XOUTER BEARINGS ID:19MM (LM11949)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X LM REAR SEALS
2X DUST CAPS


INFORMATION REQUIRED
STUD PATTERN

STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6/139
--- Stud Thickness: 1/2" Inches

6 STUD D40/NP300
--- PCD: 6/114.3
--- Stud Thickness: 1/2" Inches

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0
