HEAVY DUTY 10" JOCKEY WHEEL OFF ROAD STYLE SOLID TYRE
10" SOLID WHEEL SWING UP JOCKEY WHEEL THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

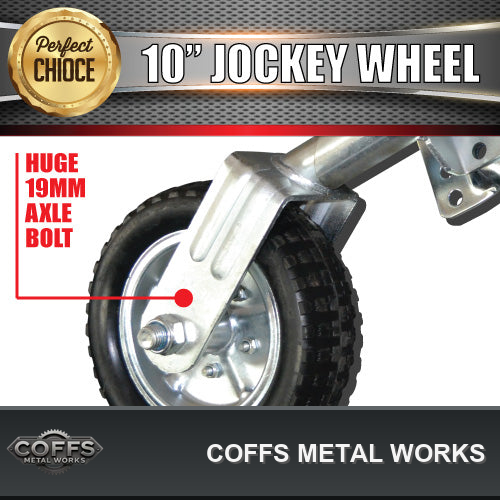

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm A- Frames) 5MM FORK HUGE 19MM AXLE BOLT PLASTIC HANDLE PLASTIC HAND GRIP CAN BE WELDED OR SUPPLIED WITH U-BOLTS SOLID OFF ROAD TYRES 250MM EXTENSION TYRE WIDTH: 80MM RATED: 1000KG (ball weight) COMES WITH GREASE NIPPLE TO LUBRICATE BEARINGS

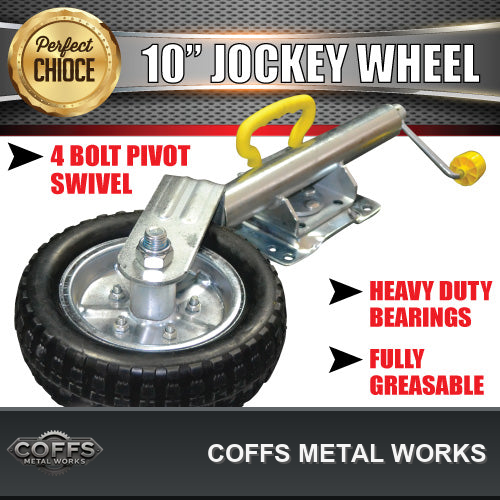

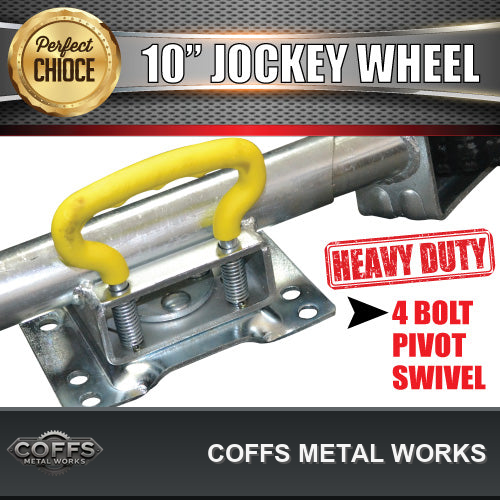

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE Coffs Metal Works BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
height from centre of bracket to bottom of tyre fully closed 420mm fully extended 680mm
Height from middle of bracket to top of handle: 215mm Overall Length closed: 630mm Travel: 260mm
