12'' 2000Kg Boat Trailer 5 or 6 Stud Hydraulic Disc Brake + Coupling & Line Kit.

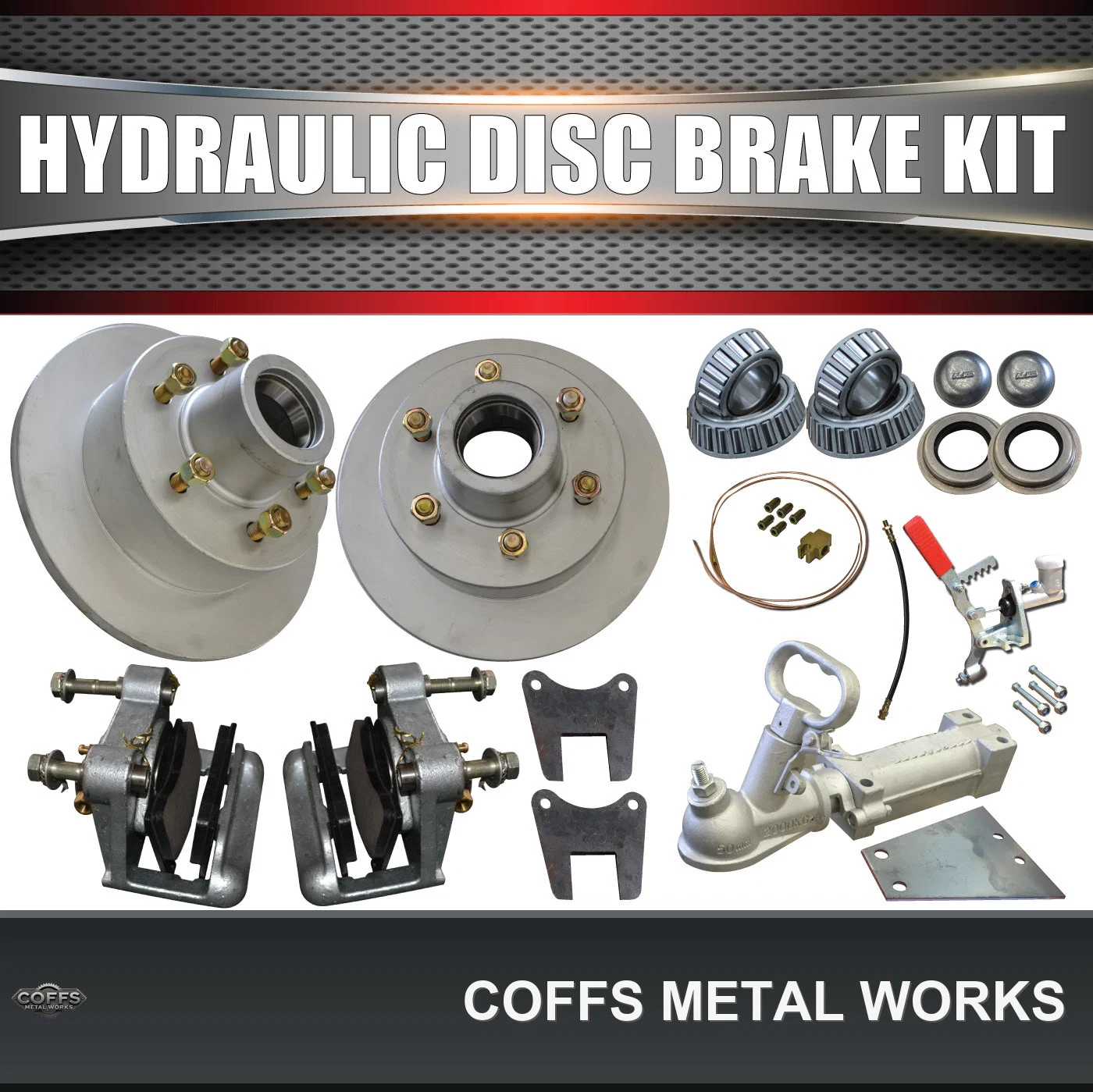

2000KG TRAILER HYDRAULIC DISC BRAKE KIT
STAINLESS STEEL PISTONS


STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)


FULL KIT INCLUDES

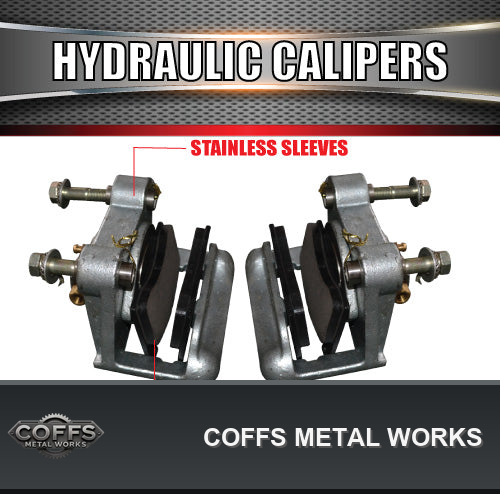

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COME WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

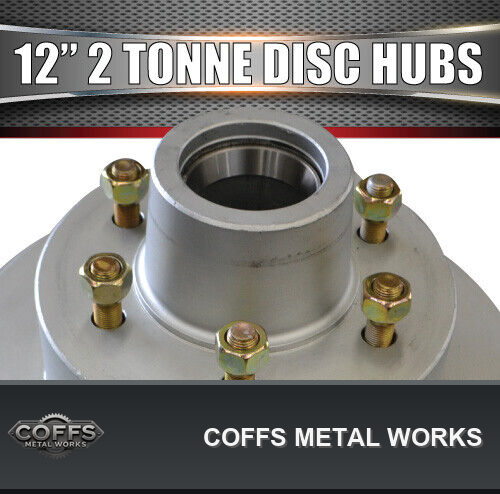

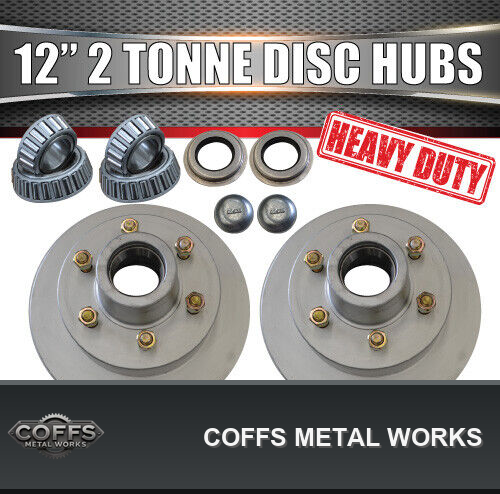

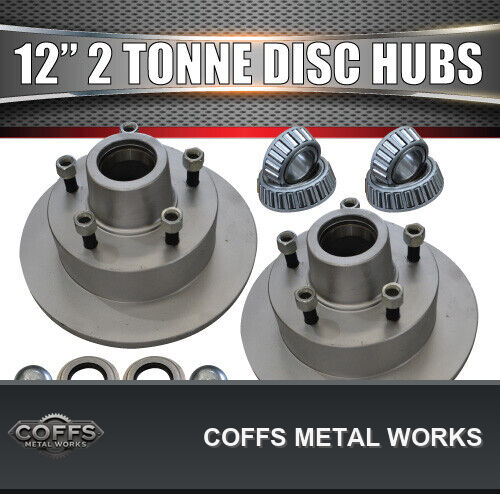

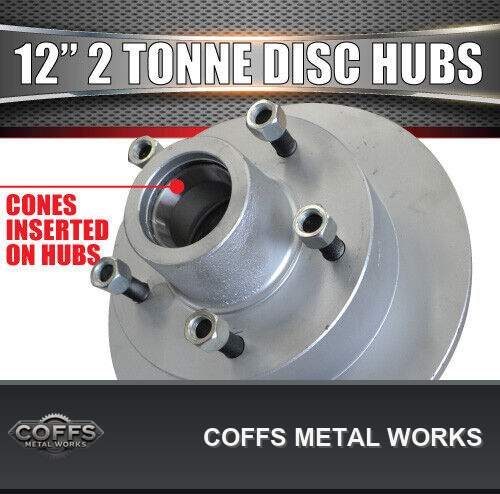

2 X GALVANISED DACROMET 12" 2000KG 5 OR 6 STUD DISC HUBS WITH BEARING CUPS INSERTED. COMES WITH WHEEL NUTS

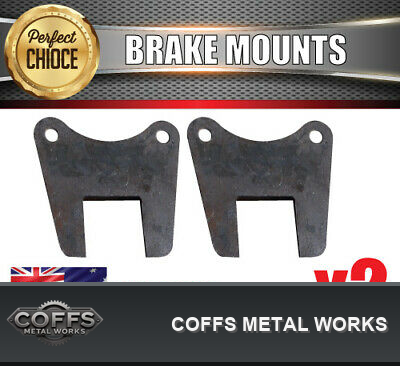

2X NATURAL FINISH 50M SQUARE 12" L/C SIZE MOUNTING PLATES

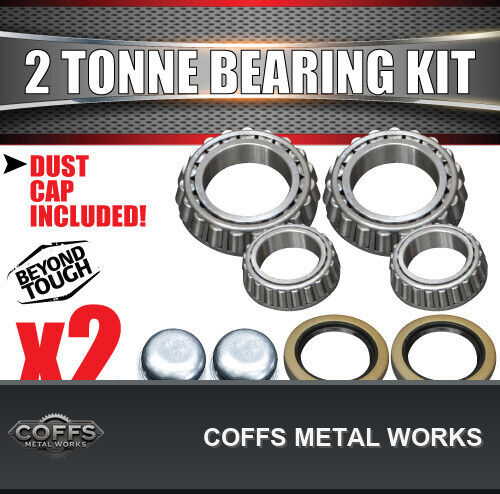

2X 2000KG BEARING KITS BEARING SETS (2X 30210 INNER BEARINGS, 2X L15123 OUTER BEARINGS, 2X S MARINE SEALS, 2X 63MM DUST CAPS)
1X OVERRIDE 2000Kg 50mm BALL COUPLING
1x MASTER CYLINDER BRACKET
1X 3/4" MASTER CYLINDER AND STAINLESS MOUNTING BOLTS (7/8" available upon request +$15)
1 X 4 HOLE WELD ON COUPLING PLATE
1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (let us know if longer is required)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING

upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $90
16ft set up Item number: 171178278490 $95

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $90.0

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
