1400Kg Galvanised Bare Gullwing Boat Trailer Axle

GALVANISED GULLWING TRAILER AXLE
MINIMUM LENGTH: 1950MM TIP TO TIP
MAXIMUM LENGTH: 3000MM TIP TO TIP

TO SUIT BEARINGS
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)

RATED 1400KG

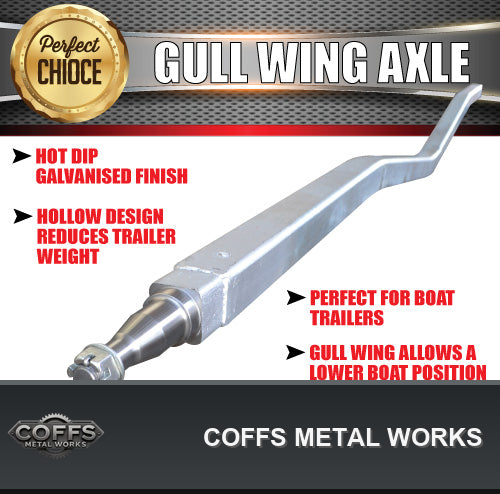

ADVANTAGES OF GULLWING AXLES

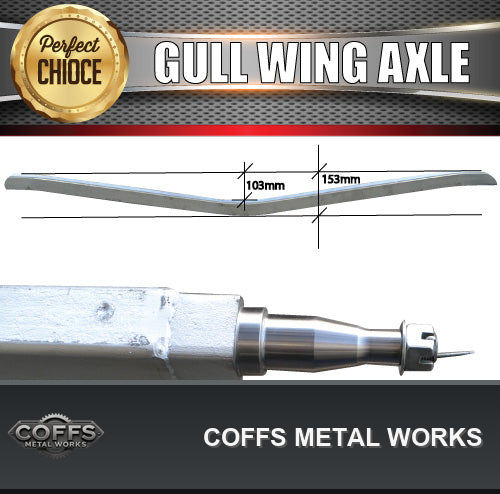

LOWER YOUR CENTRE OF BOAT POSITION BY 103MM
CENTRE OF GRAVITY BECOMES SIGNIFICANTLY LOWER
ROLLERS ARE LOWERED WHEN ROLLER BRACKET ARE BOLTED TO THE V'S
HOLLOW GALVANISED TUBE LOWERS OVERALL WEIGHT OF TRAILER

OPTIONS FOR THESE AXLES
COMPLETE WITH GALVANISED DACROMET LAZY HUBS
COMPLETE WITH GALVANISED MECHANICAL DISC BRAKES
COMPLETE WITH GALVANISED HYDRAULIC DISC BRAKES
COMPLETE WITH STAINLESS HYDRAULIC DISC BRAKES

THIS AXLE USED BY MANY TRAILER MANUFACTURERS AUSTRALIA WIDE
IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 100MM AND THAT WILL GIVE YOUR OVER ALL LENGTH MEASUREMENT

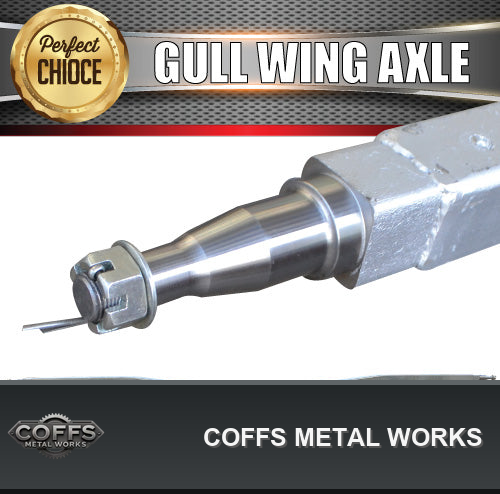

COMES WITH AXLE NUT AND SPLIT PIN

Please note
These 50mm x 5mm Tube is hot dipped galvanised. They are then cut down to the required length and specially machined stub axles are inserted and welded in. Cold galvanise is then applied to the welded stub end.
