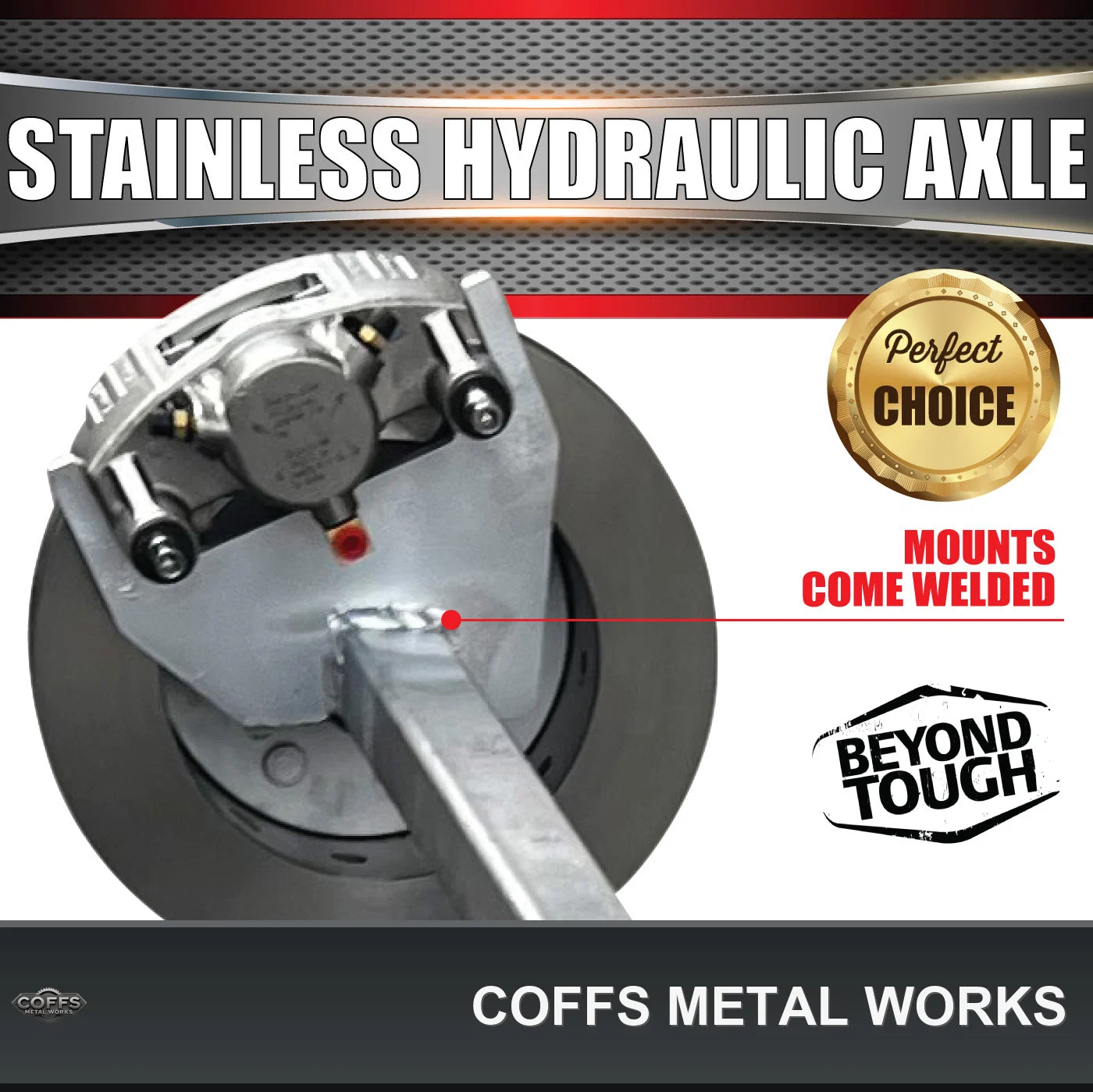

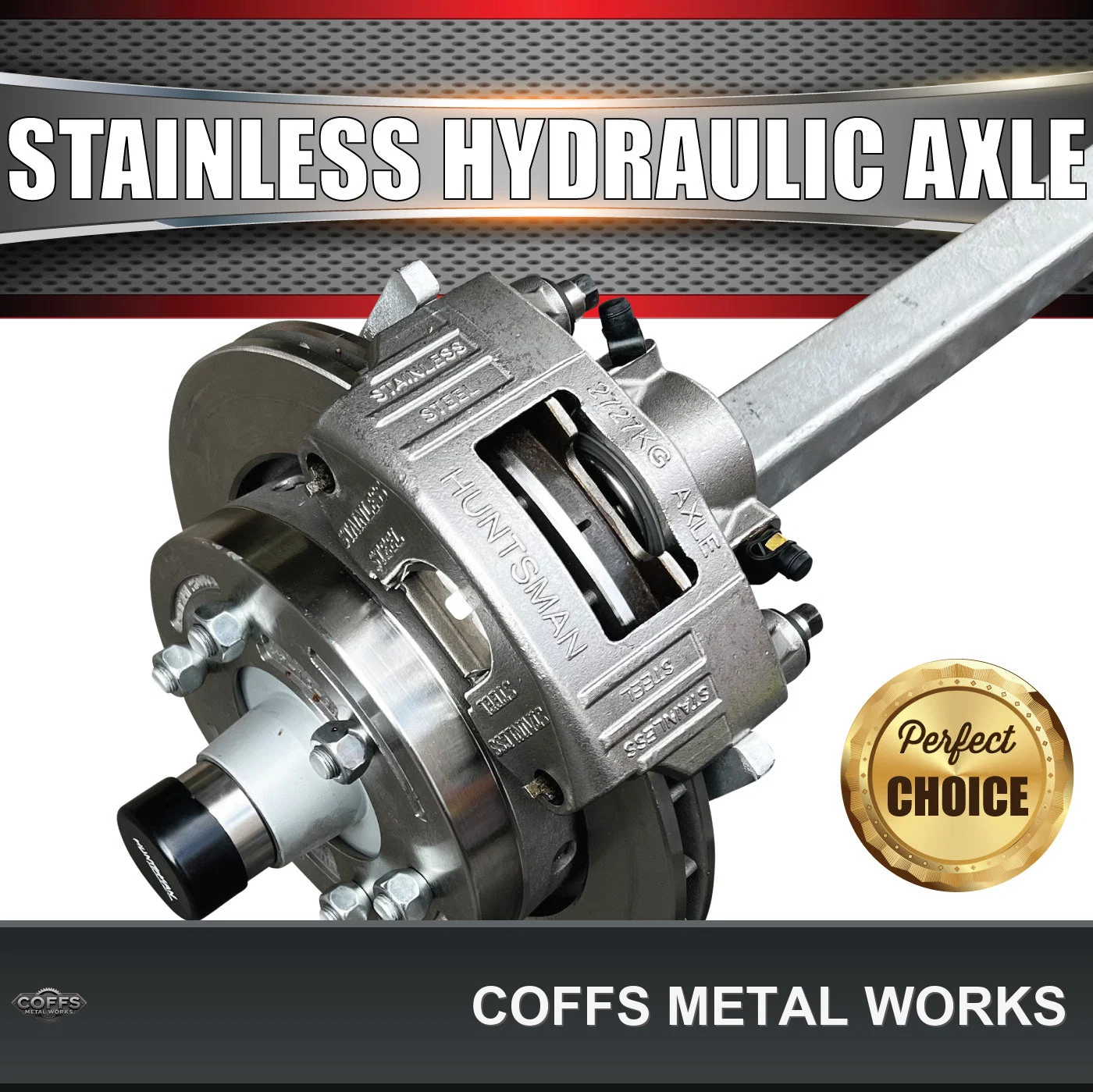

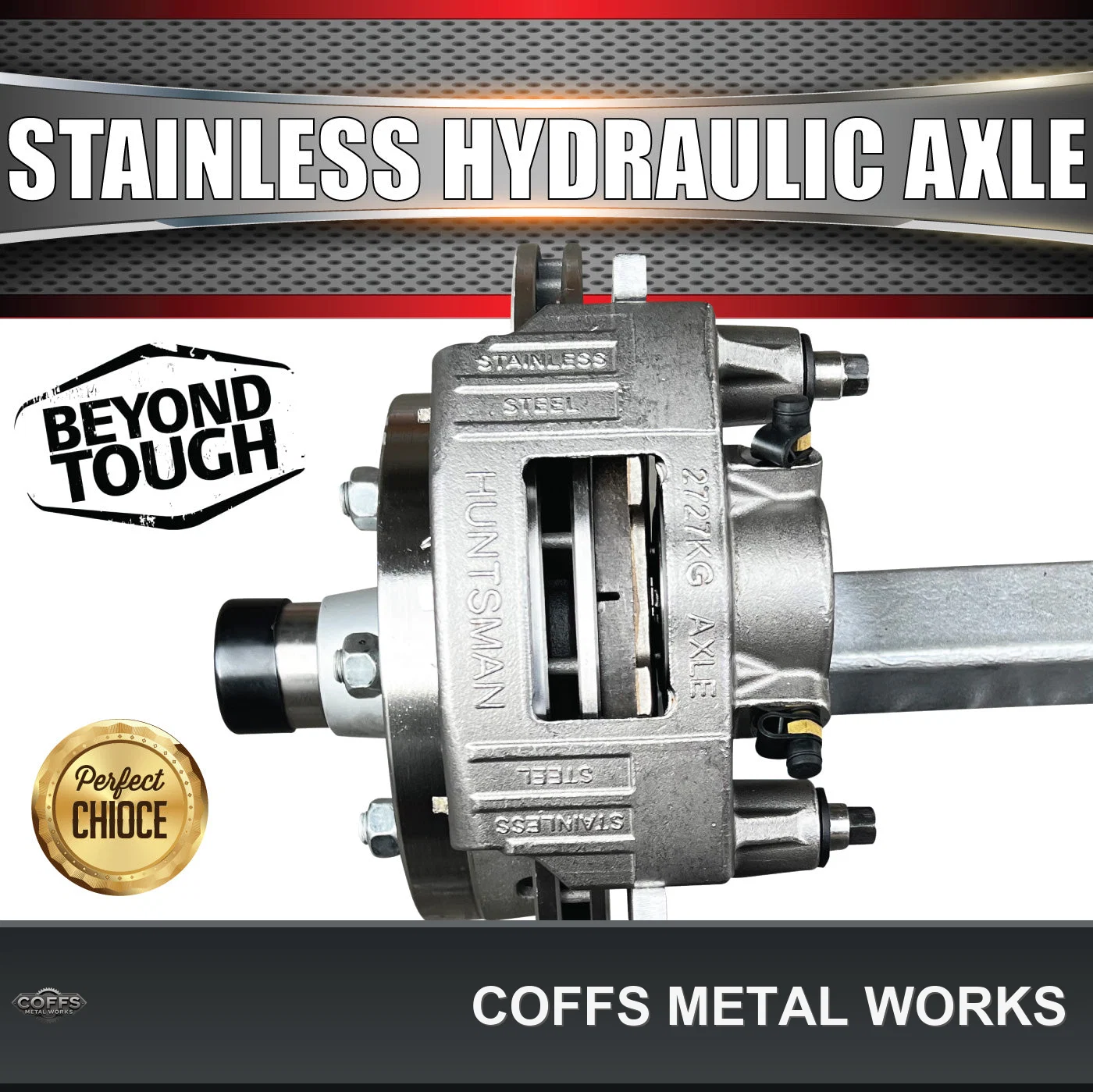

1400Kg Galvanised Stainless Hydraulic Disc Caravan Boat Trailer Axle

GALVANISED 45MM SQUARE SOLID COMPLETE HYDRAULIC DISC BRAKED AXLE
WITH STAINLESS STEEL CALIPERS AND DISCS.
JAPANESE SLIMLINE BEARINGS!!

(1400KG RATED)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)

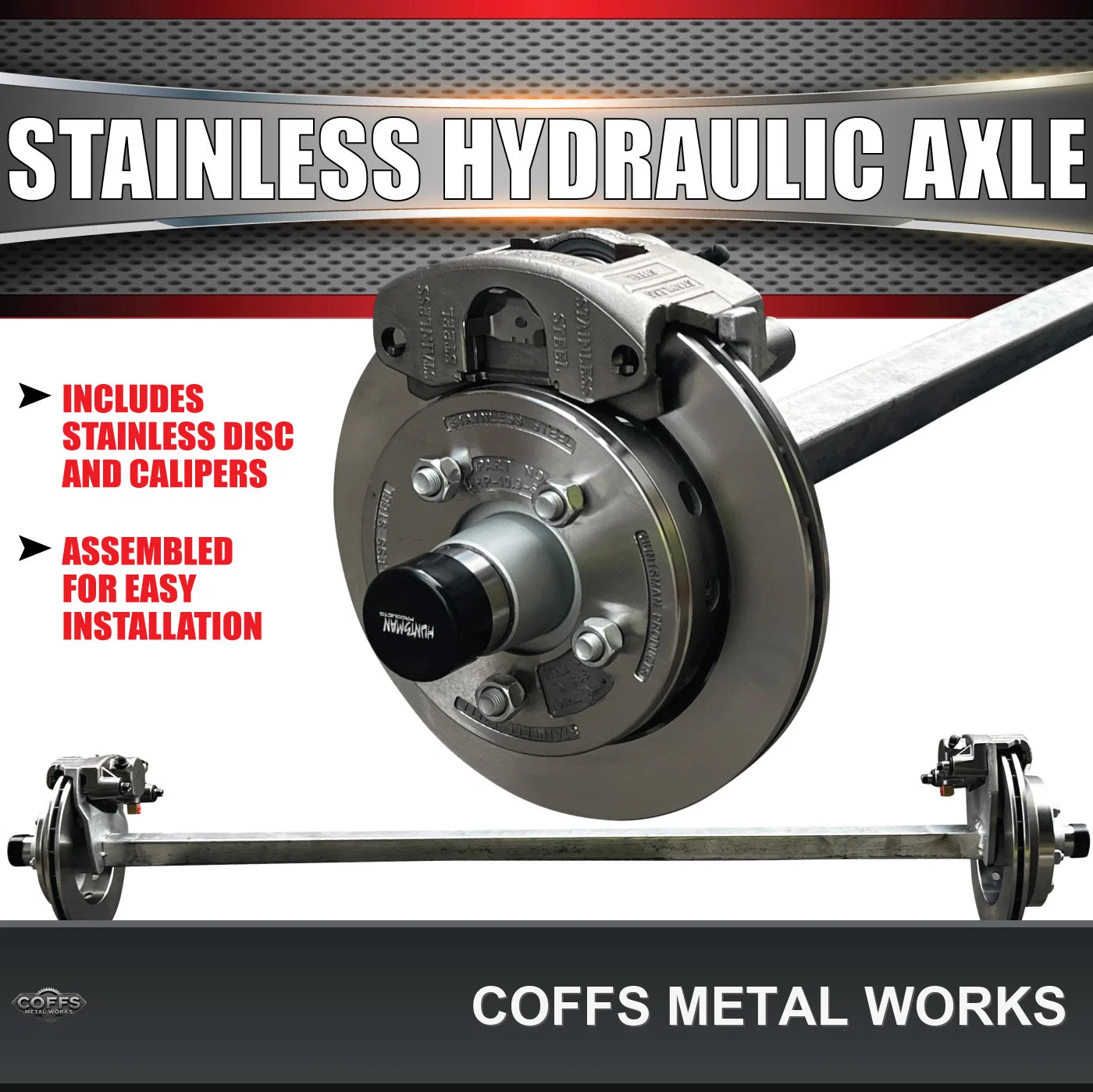

AXLE COMES COMPLETELY ASSEMBLED
5 STUD DACROMET LAZY HUBS
JAPANESE MANUFACTURED BEARINGS

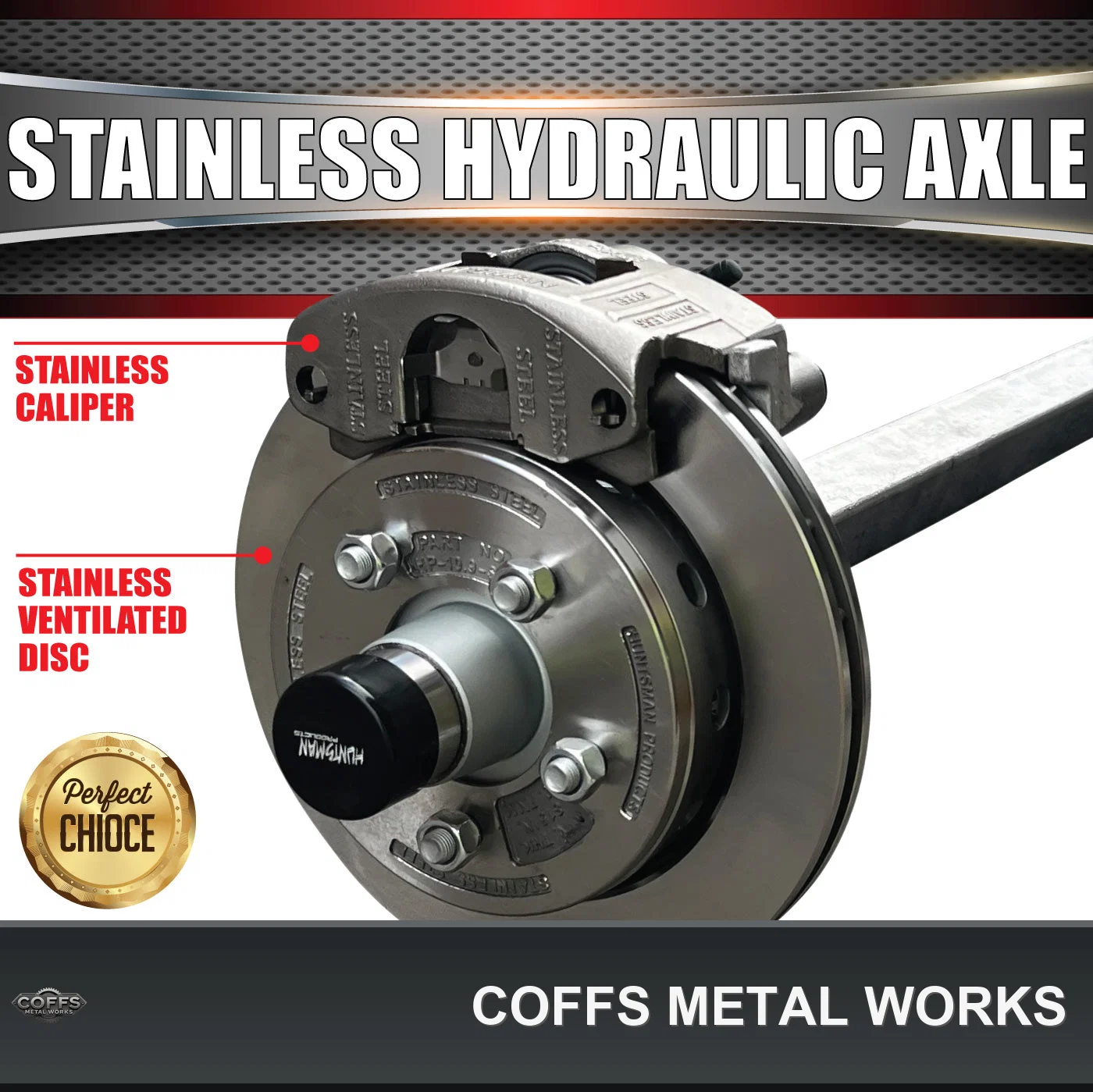

STAINLESS STEEL VENTILATED SLIP OVER DISCS
STAINLESS STEEL Coffs Metal Works CALIPERS WITH STAINLESS BACKING PLATES

DUAL BLEEDER NIPPLES
CERAMIC BRAKE PADS
COMES WITH FREE STAINLESS STEEL BEARING BUDDYS!!!!

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
