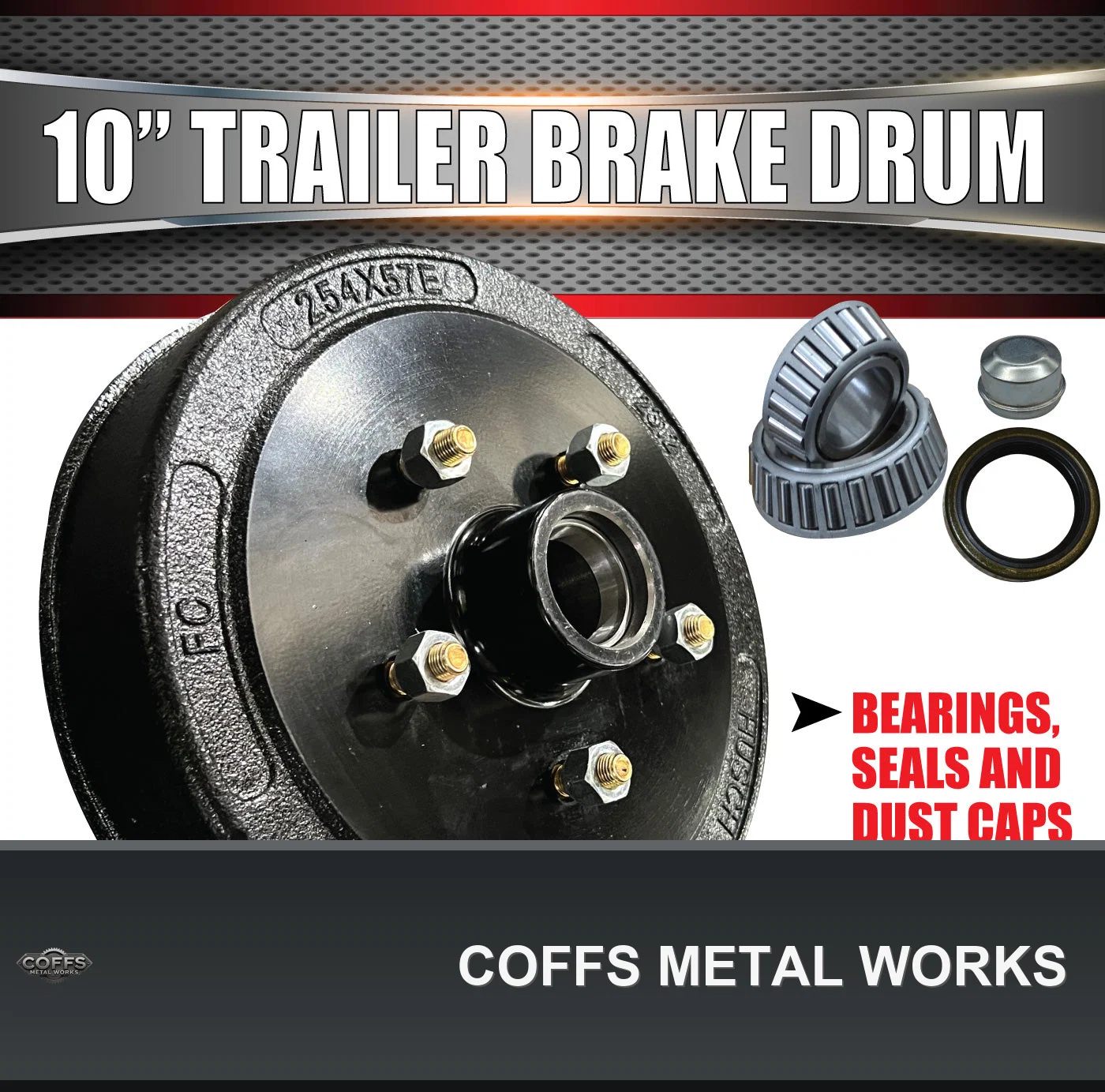

1x 10" Trailer Caravan Electric Drum Suit HT Holden 5/108 PCD & LM Holden Bearing Set

1X 10" 5 STUD ELECTRIC BRAKED DRUM SUIT HT HOLDEN PATTERN
& LM (HOLDEN) SIZE BEARING KIT

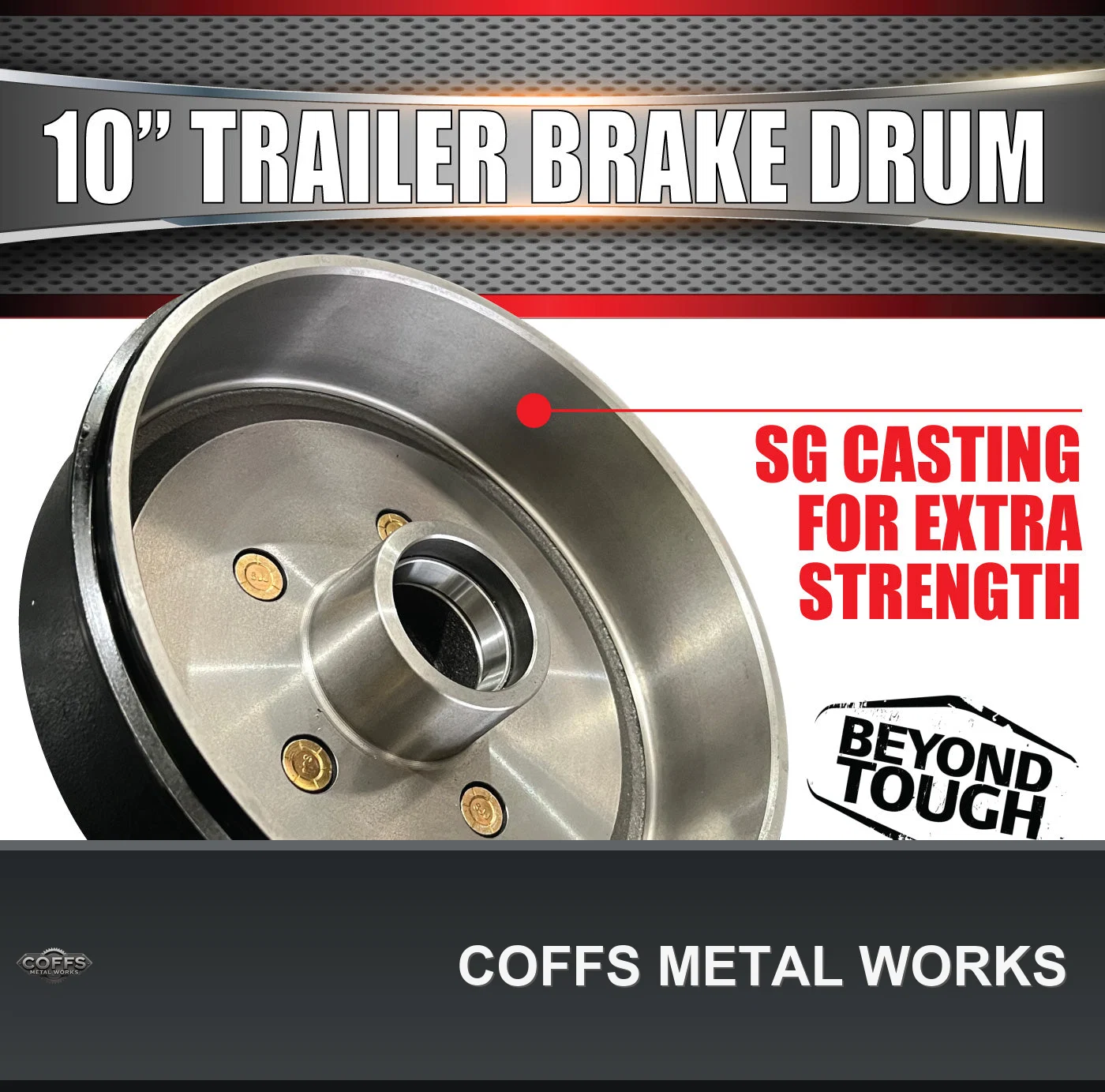

(SG casting. much stronger than grey iron casting)

1x 10" 5 STUD HT PATTERN STEEL DRUM WITH STUDS AND NUTS

PCD: 5/108

7/16" STUDS AND NUTS

DRUM DIAMETER: 254MM

MATERIAL: S.G CASTING

FINISH: BLACK PAINTED

67.18MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD

SUITS AXLES: 39MM AND 40MM

1X LM BEARING SET

1X INNER BEARING ID:31.7MM (LM67048)

1X OUTER BEARING ID:19MM (LM11949)

1X OUTER BEARING CUP (already inserted)

1X INNER BEARING CUP (already inserted)

1X LM REAR DUST SEAL

1X 45MM DUST CAPS

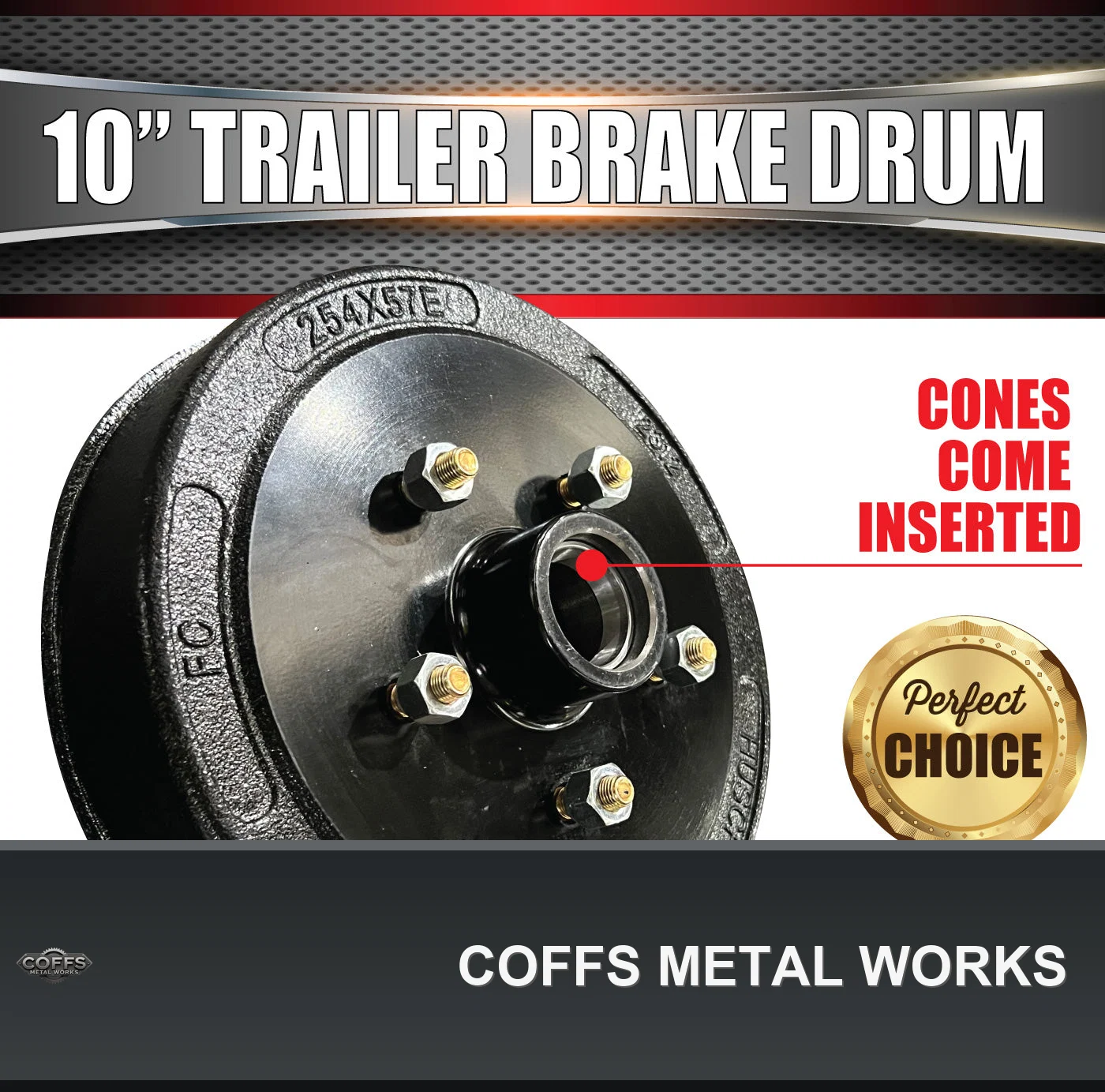

HUB COMES WITH CUPS INSERTED
