2000KG 0VERRIDE RING TYPE COUPLING WITH MASTER CYLINDER AND BRACKET
3" (75mm ID, 116mm OD)
CTA APPROVAL NUMBER: CTA-061288
2000KG OVERRIDE RING TYPE COUPLING

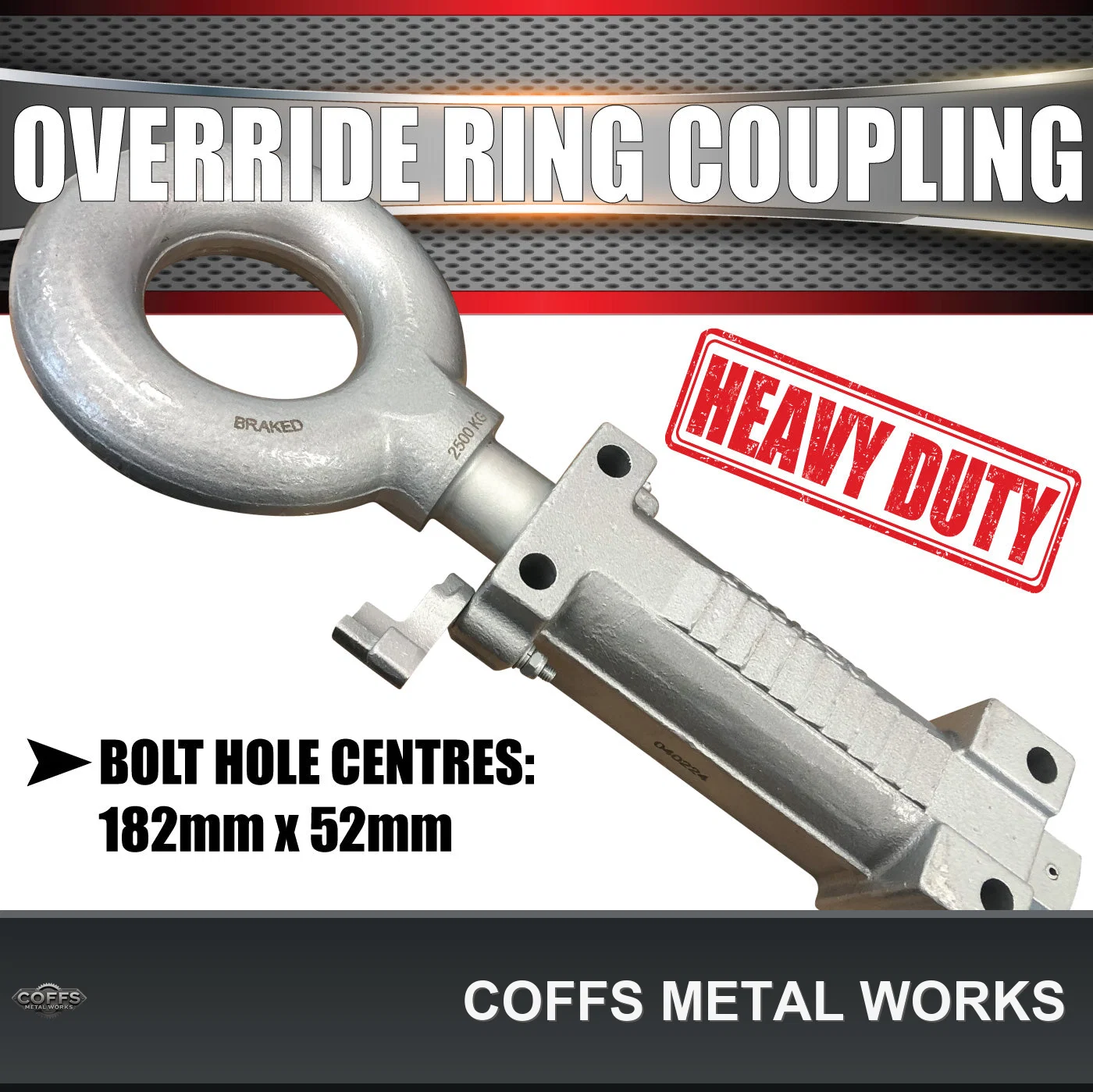

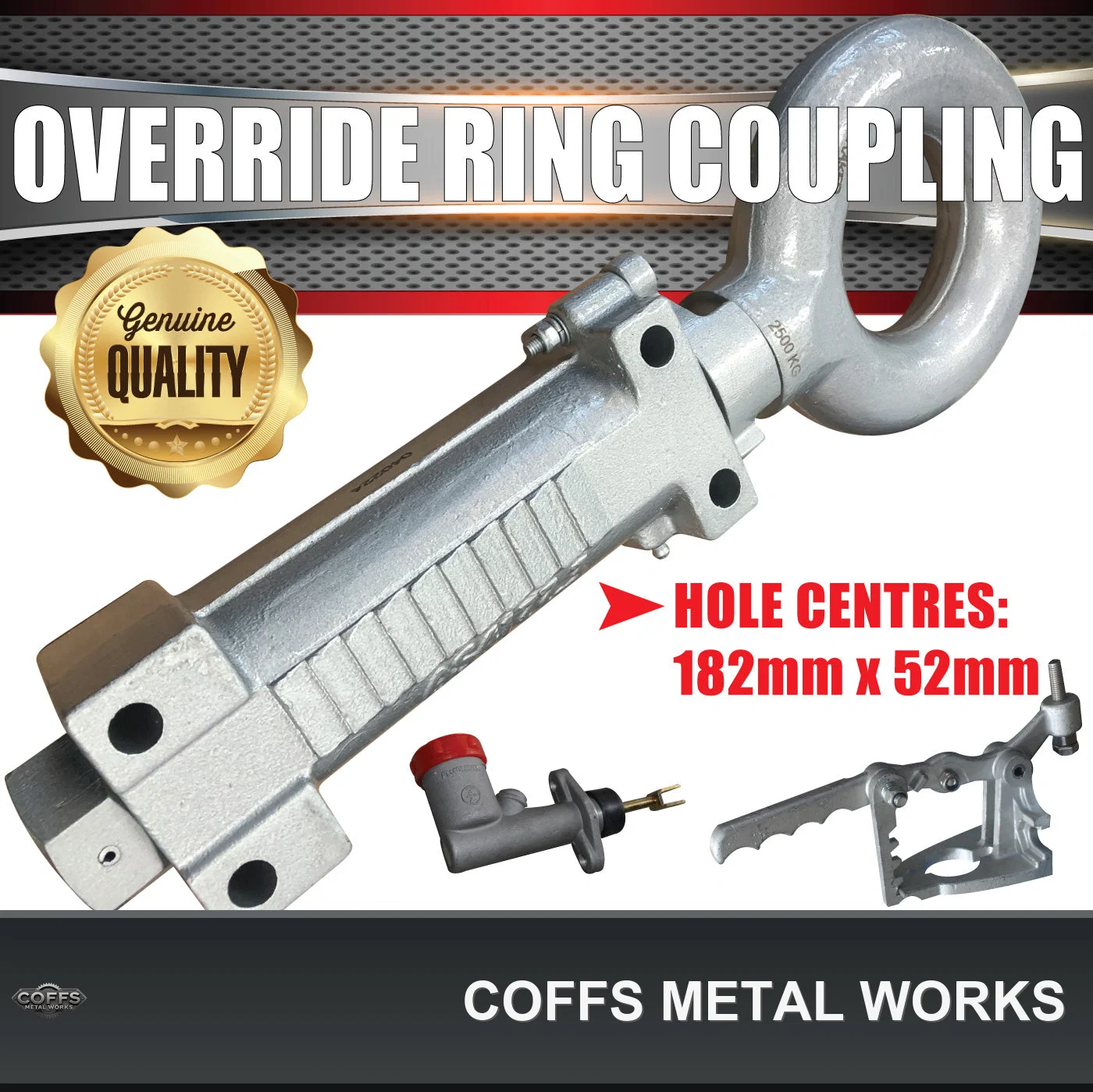

HOLE CENTRES: 182mm x 52mm

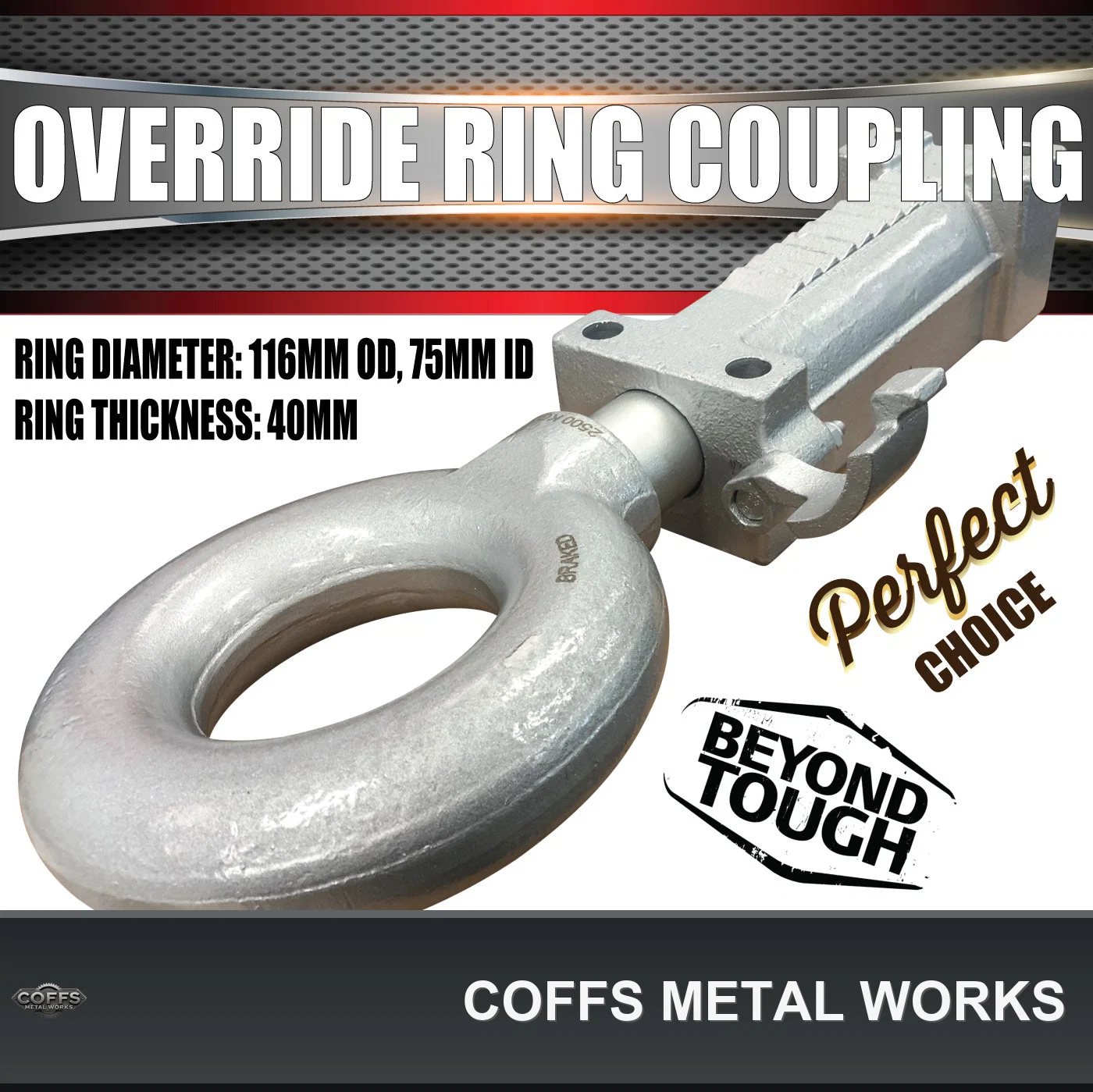

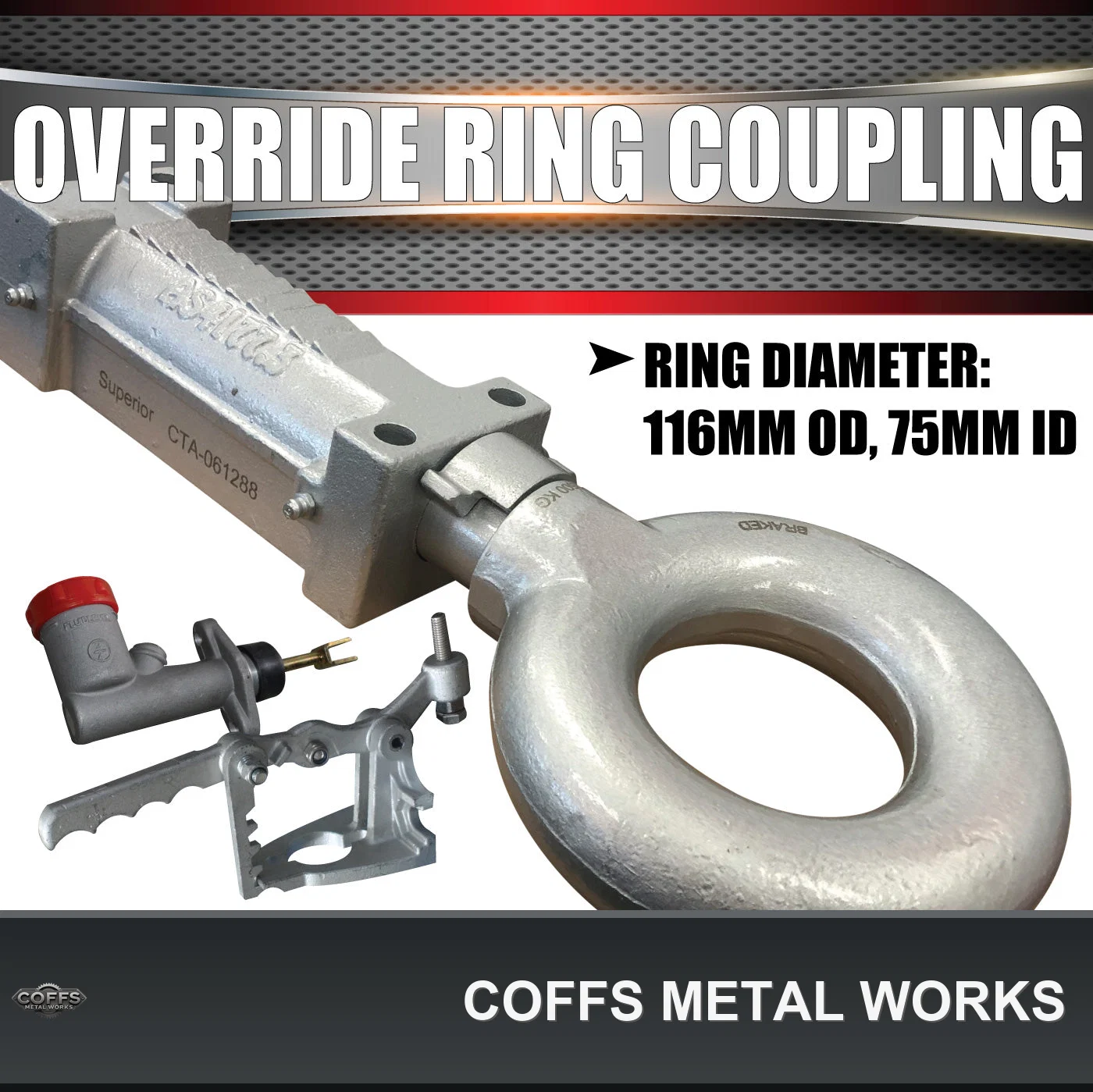

RING DIAMETER: 116MM OD, 75MM ID
RING THICKNESS: 40MM
BOLT HOLES: SUIT M12 BOLTS
MARINE DACROMET FINISH
TESTED TO 2500KG
K10-45 SHAFT
REVERSE LOCKING CLIP
SUITED FOR HYDRAULIC AND MECHANICAL BRAKES

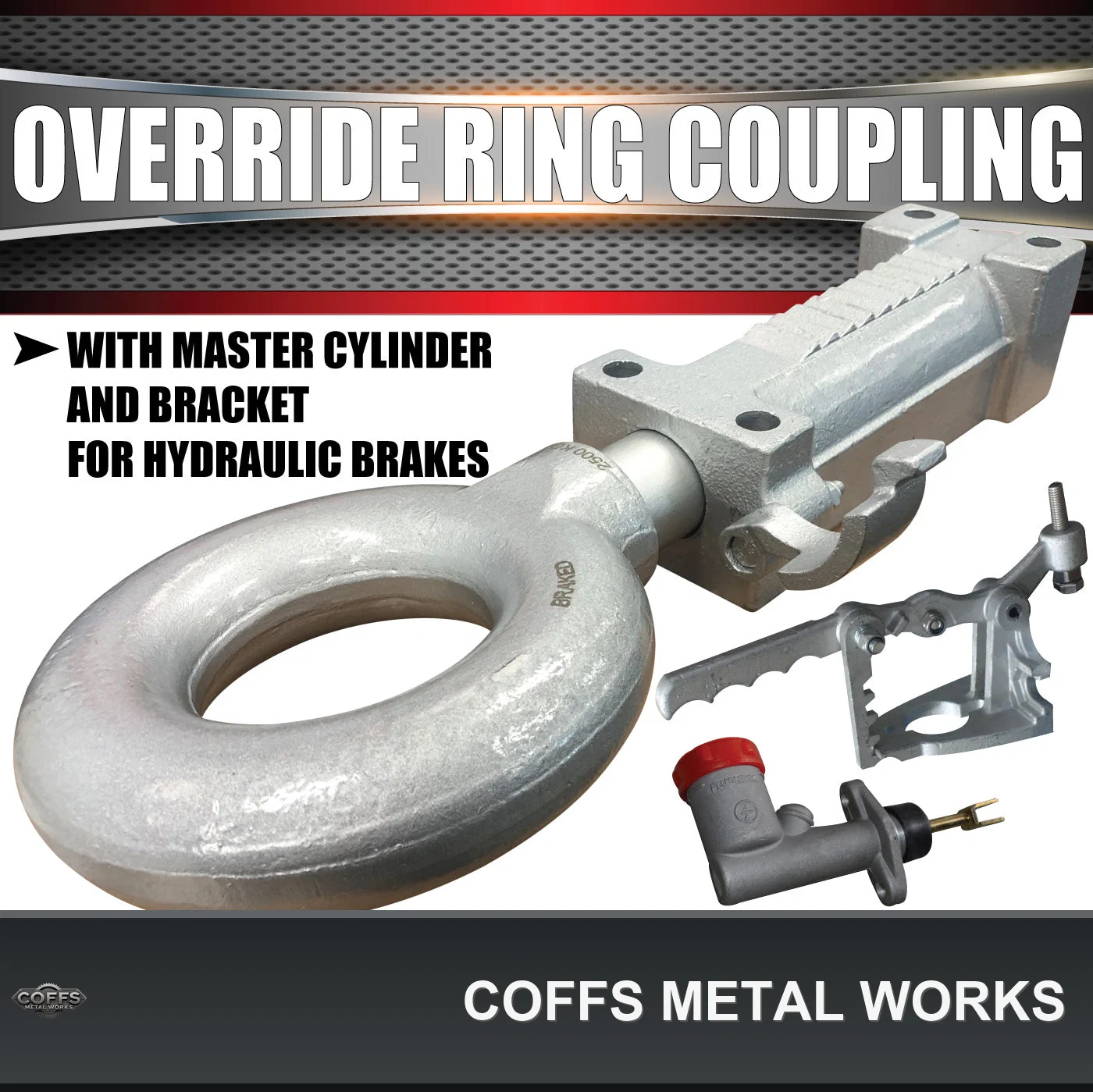

FULL KIT INCLUDES
2000KG OVERRIDE RING COUPLING
3/4" MASTER CYLINDER WITH BOLTS TO MOUNT TO BRACKET
DACROMET MASTER CYLINDER BRACKETS
