2000Kg Trailer Caravan Stainless Ventilated Hydraulic Disc Torsion Bar Axle.

2000KG TORSION BAR INDEPENDENT AXLE
INTERNAL RUBBER SUSPENSION, STAINLESS VENTILATED HYDRAULIC DISC BRAKES
PLEASE NOTE: WE WILL SEND THIS AXLE FULLY ASSEMBLED SAVING YOU MUCH TIME AND HEADACHE

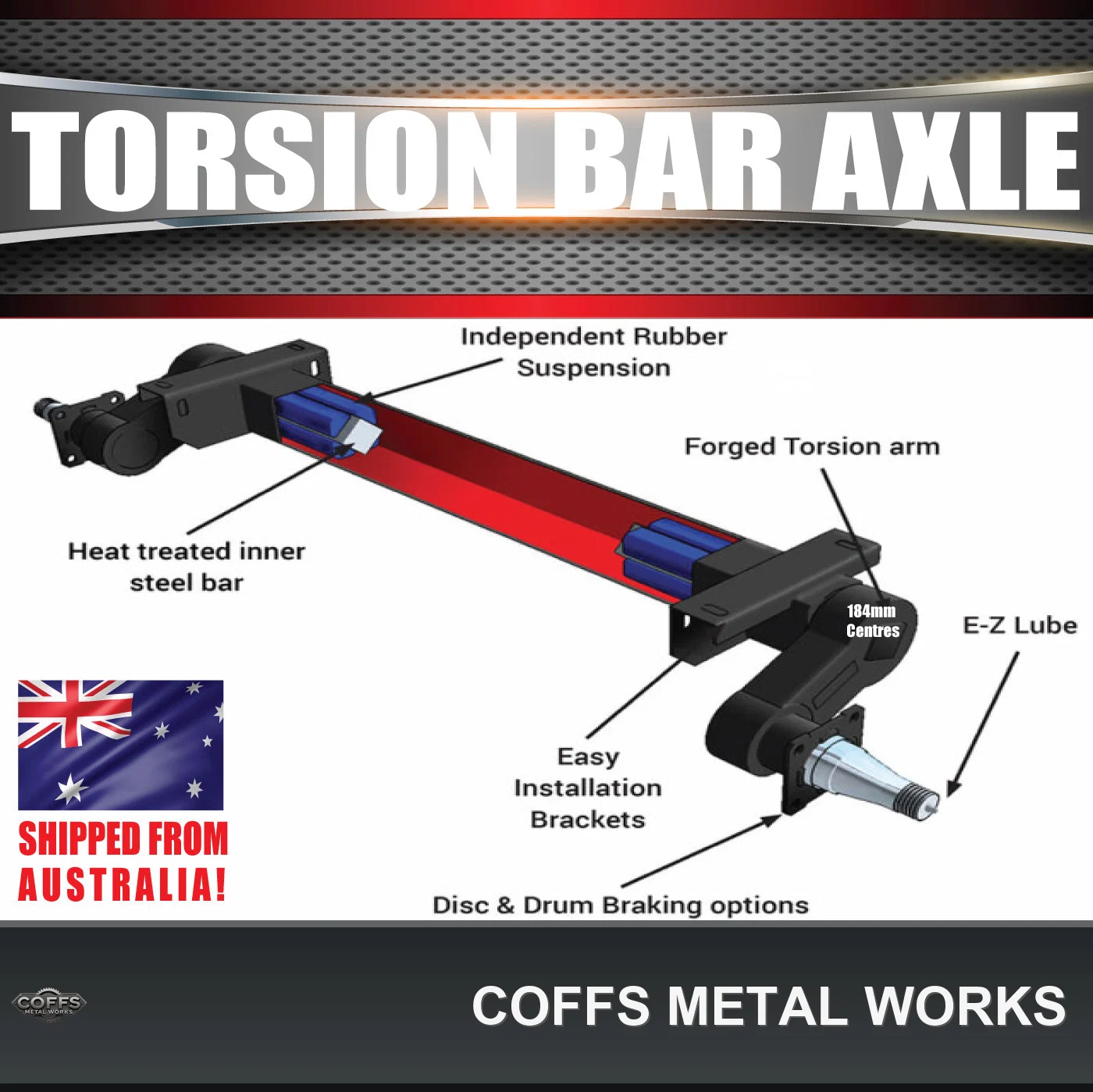

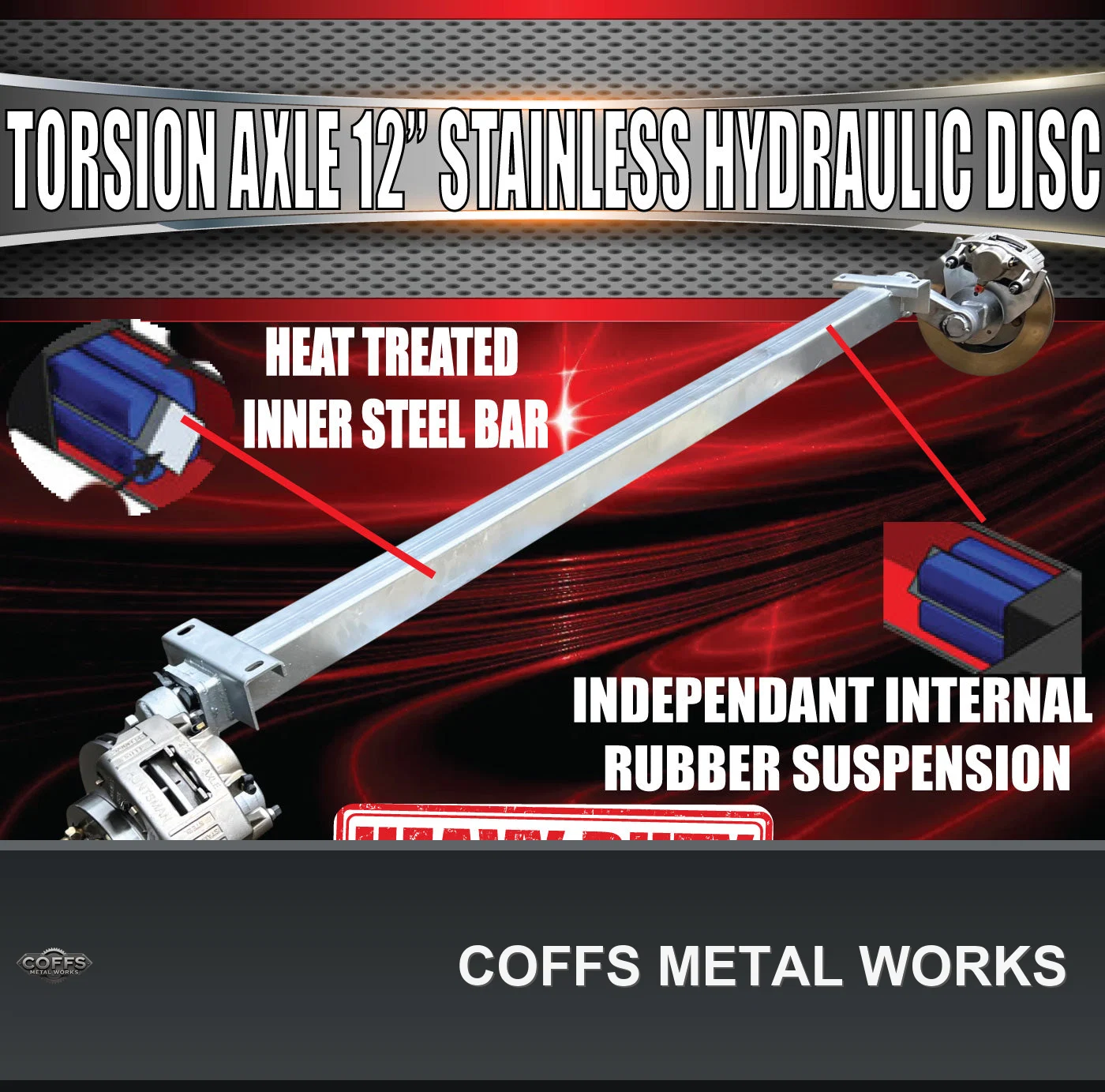

Torsion axles work by using rubber cords or cartridges inside the axle tube to handle suspension travel and shock absorption. Torsion axles do not use leaf springs, but instead the compression of the rubber to supply the suspension support needed. Each wheel works independently from one another. Torsion axles are also bolted or welded directly to the trailer frame, which adds stability and structure to the trailer frame.

AVAILABLE PATTERNS
LANDCRUISER 6 STUD (6/139.7 PCD, 1/2" STUDS)
OR
LANDCRUISER 5 STUD (5/150 PCD, 9/16" STUDS)

TORSION AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 200mm
Hub face to back of electric backing plate per side: 155mm
2100MM TIP TO TIP (hub face to hub face 1935mm)
2200MM TIP TO TIP (hub face to hub face 2035mm)
2300MM TIP TO TIP (hub face to hub face 2135mm)
2400MM TIP TO TIP (hub face to hub face 2235mm)

LANDCRUISER SIZE BEARINGS (30210 INNER, 15123 OUTER)

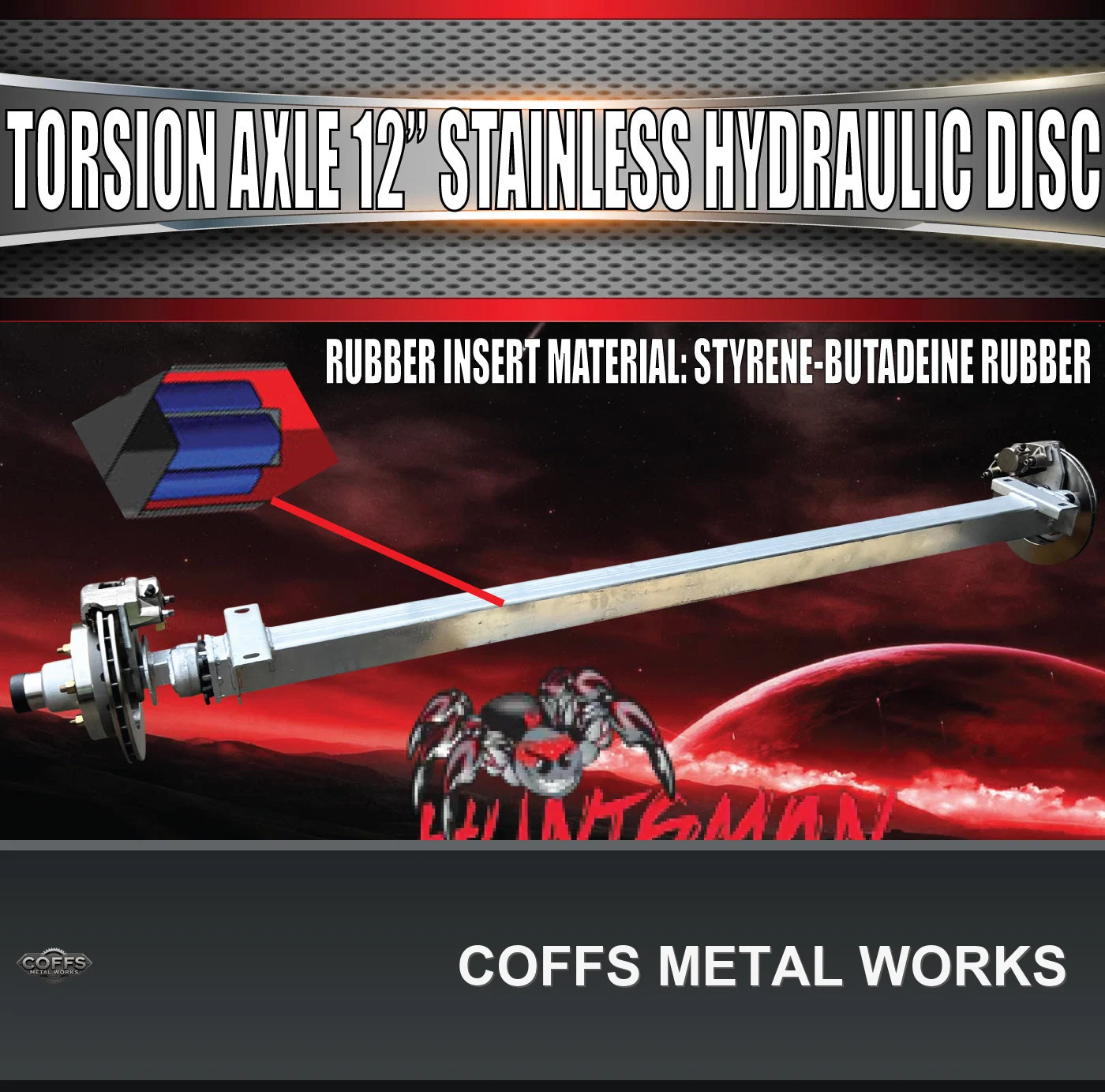

RUBBER INSERT MATERIAL: STYRENE-BUTADEINE RUBBER
INTERNAL AXLE THICKNESS: 28MM X 28MM X 360MM LONG
CENTRE OF STUB AXLE TO BOTTOM CHASSIS: APPROX 130MM
CENTRE ARM TO CENTRE OF STUB AXLE: 152.4MM
DEGREES OF INDEPENDENT ARM: 22.5 DEGREE DOWN

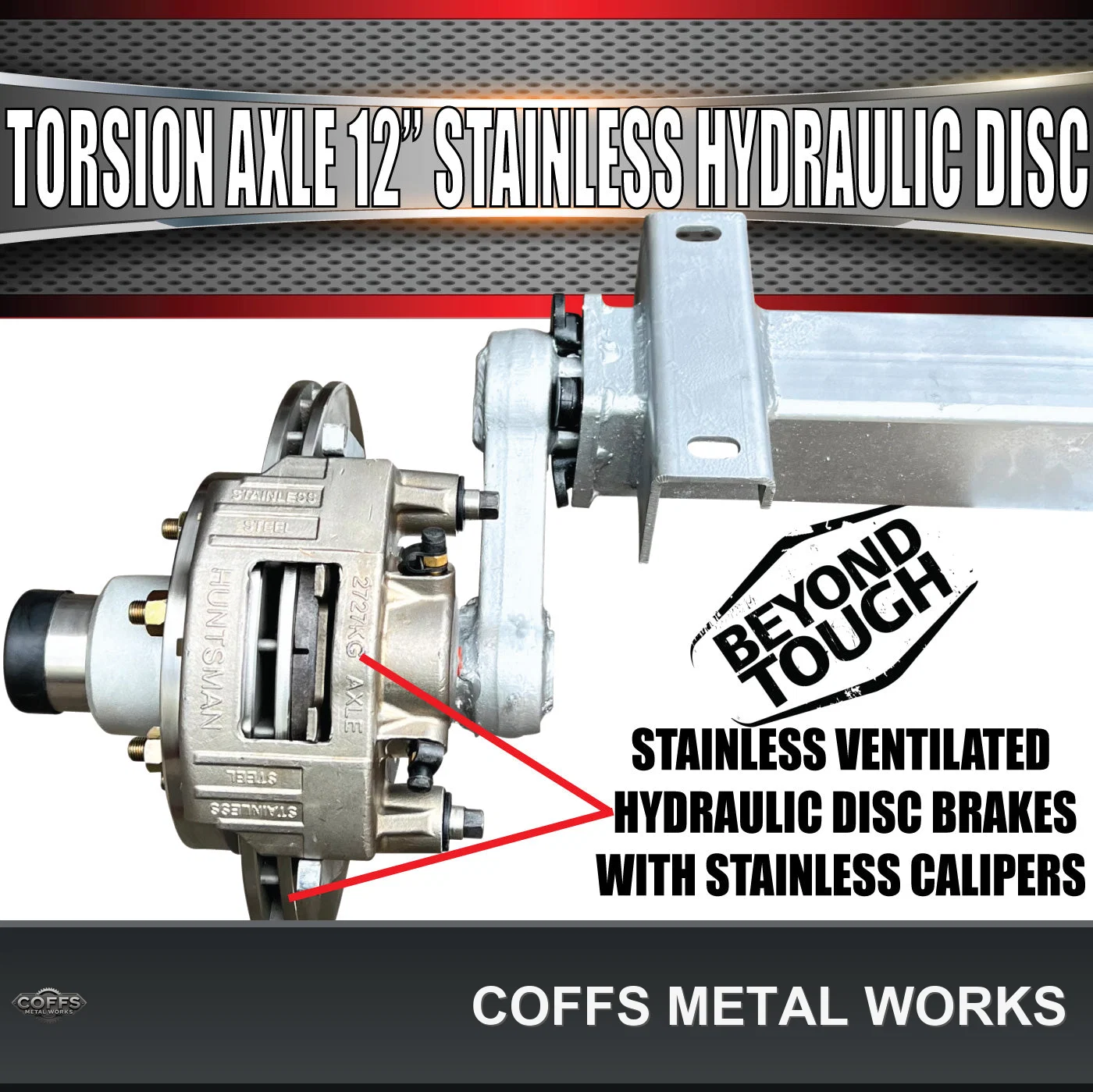

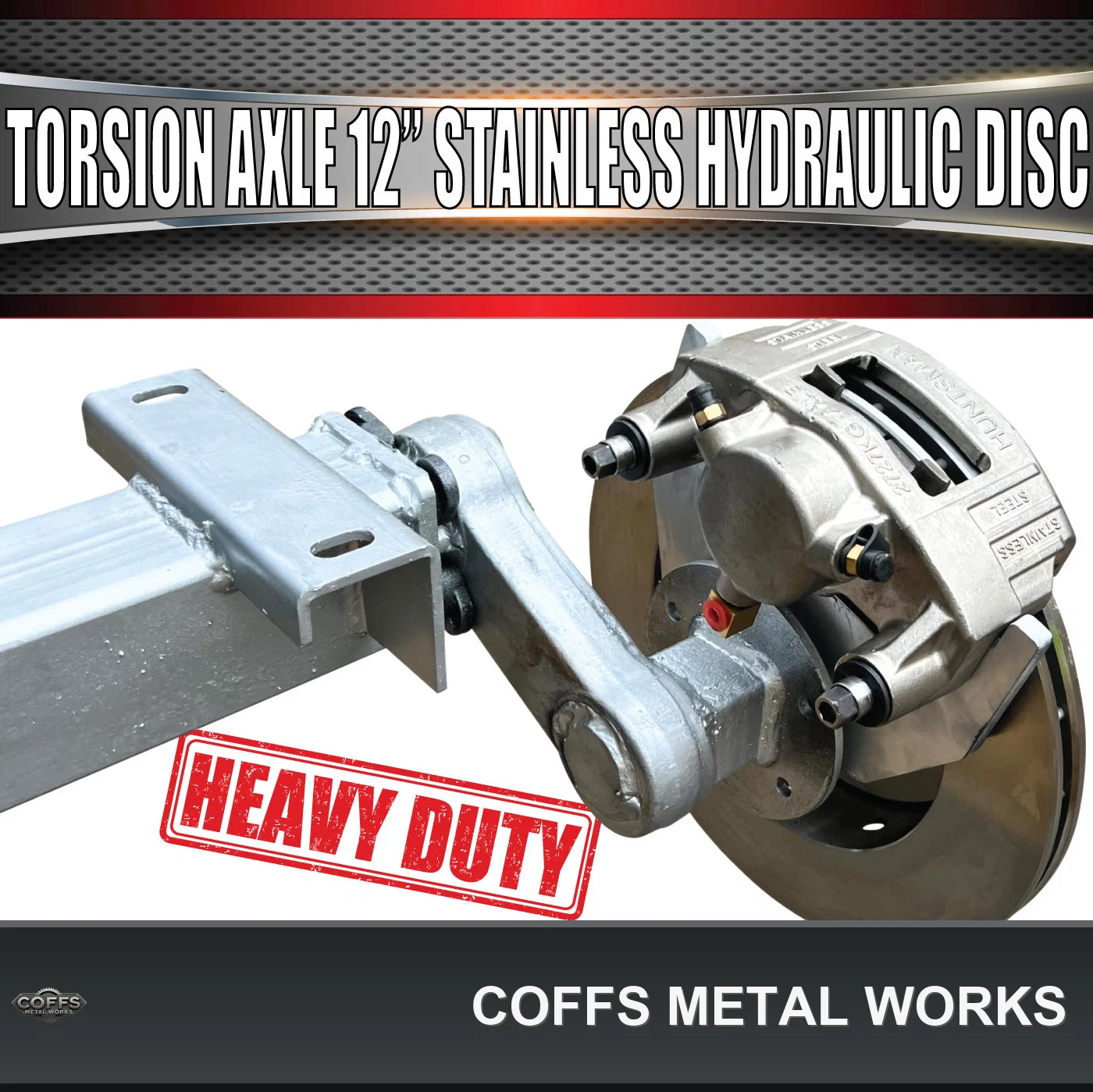

BRAKE SETUP ON STUB AXLES
2X STAINLESS STEEL DISC BRAKE CALIPERS WITH STAINLESS BRAKE PADS
2X 12" STAINLESS STEEL VENTILATED DISCS
2X 50MM SQUARE SLIP OVER WELD ON 12" DISC MOUNTS (welded to stub axles)
2X DACROMET 2 TONNE LAZY HUBS (hubs are machined to fit into the slip over discs)
2X COMPLETE BEARING KITS WITH MARINE SEALS
2X FREE ALL STAINLESS STEEL 63MM BEARING BUDDY'S
