Coffs Metal Works

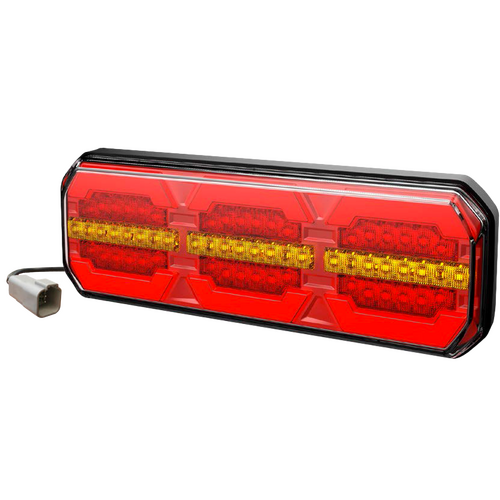

285 Series LED Combo Lamp - Stop / Tail / Running Indicator with Deutsch
285 Series LED Combo Lamp - Stop / Tail / Running Indicator with Deutsch
Regular price
$195.95 AUD
Regular price
Sale price
$195.95 AUD
Quantity
Couldn't load pickup availability
Description
The new CRL285 series is the next generation in multifunction rear combination signal lamps.Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.
Features
- All in one solution for rear lighting
- Highly styled, modern design
- Diffused rear position•
- Sequential indicator
- Heavy duty Smart Clip™ base
- Fully ADR compliant
Specifications
| Applications | •Trucks •Rigid Bodies •Buses & Coaches •Utes •Custom Builds |
| Functions | Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector |
| Voltage | 9-33V DC VarivoltÆ |
| Wattage | Stop:3.5W Rear Position:2.5W Indicator:2.6W Reverse:2.3W |
| Mount | Front or Rear Stud Mount |
| Materials | Polycarbonate Lens & Base |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M Standard |
| Dimensions | 283 x 100 x 33mm |
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00 |
| CRN | Pending |
Parts List
| CMW-CRL285LED | 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BOX |
| CMW-CRL285LEDB | 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BLISTER |
| CMW-CCRL285RLED | 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BOX |
| CMW-CCRL285RLEDB | 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BLISTER |
