2x Galvanised Dacromet 60mm x 6mm Trailer Caravan 5 Leaf Eye to Eye Shackle Springs. 1380kg Rated.

2X 60MM X 6MM 5 LEAF DACROMET FINISH EYE TO EYE SPRINGS
1380KG PER PAIR

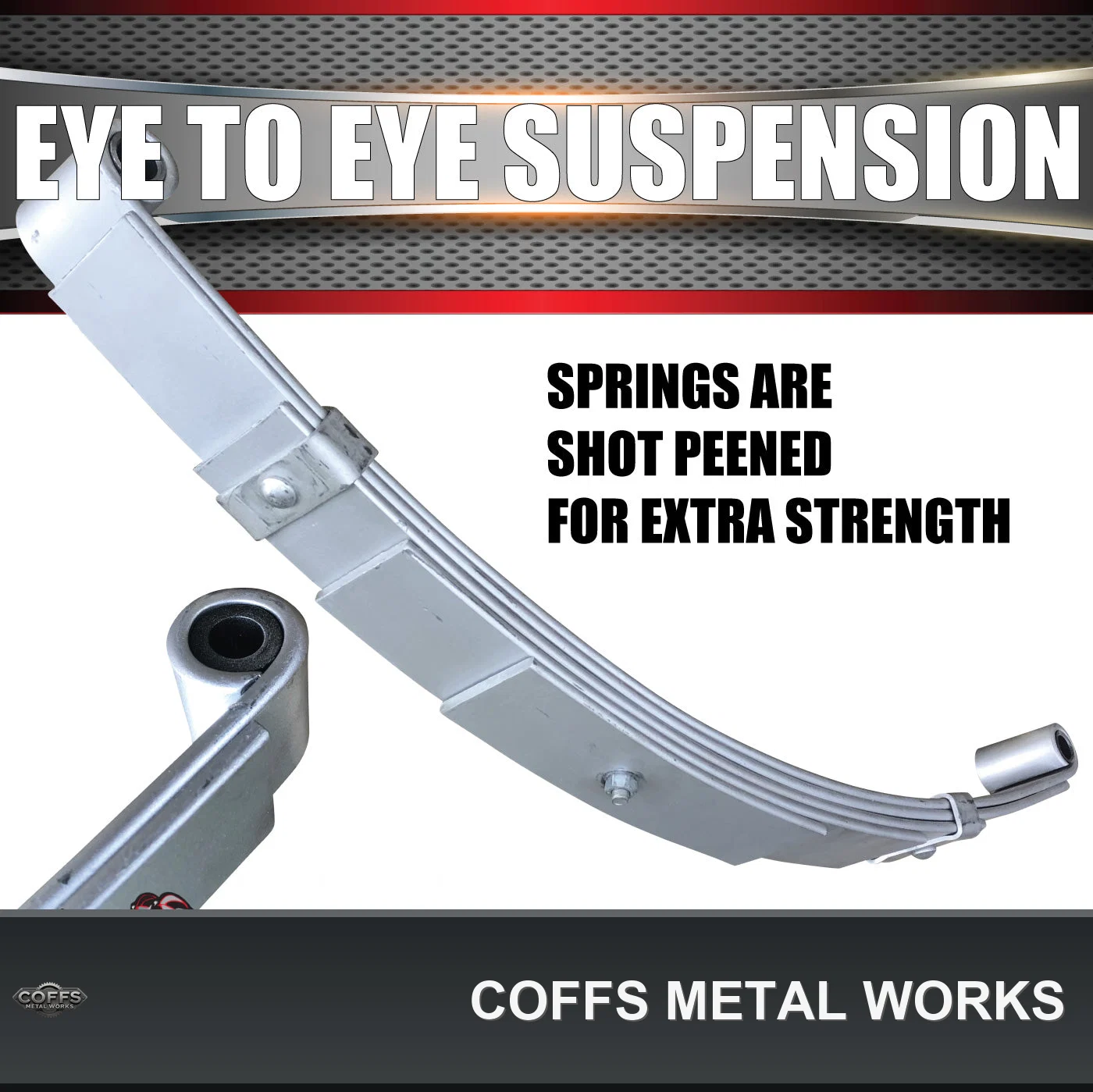

SPRINGS ARE SHOT PEENED


2X 60MM X 6MM 5 LEAF GALVANISED / DACROMET FINISH EYE TO EYE SPRINGS
RATED TO 1380KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
SPRING LENGTH 715MM OVERALL
CENTER OF EYE TO EYE OF SPRING LENGTH 680MM
CAMBER ARC HEIGHT 135MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)

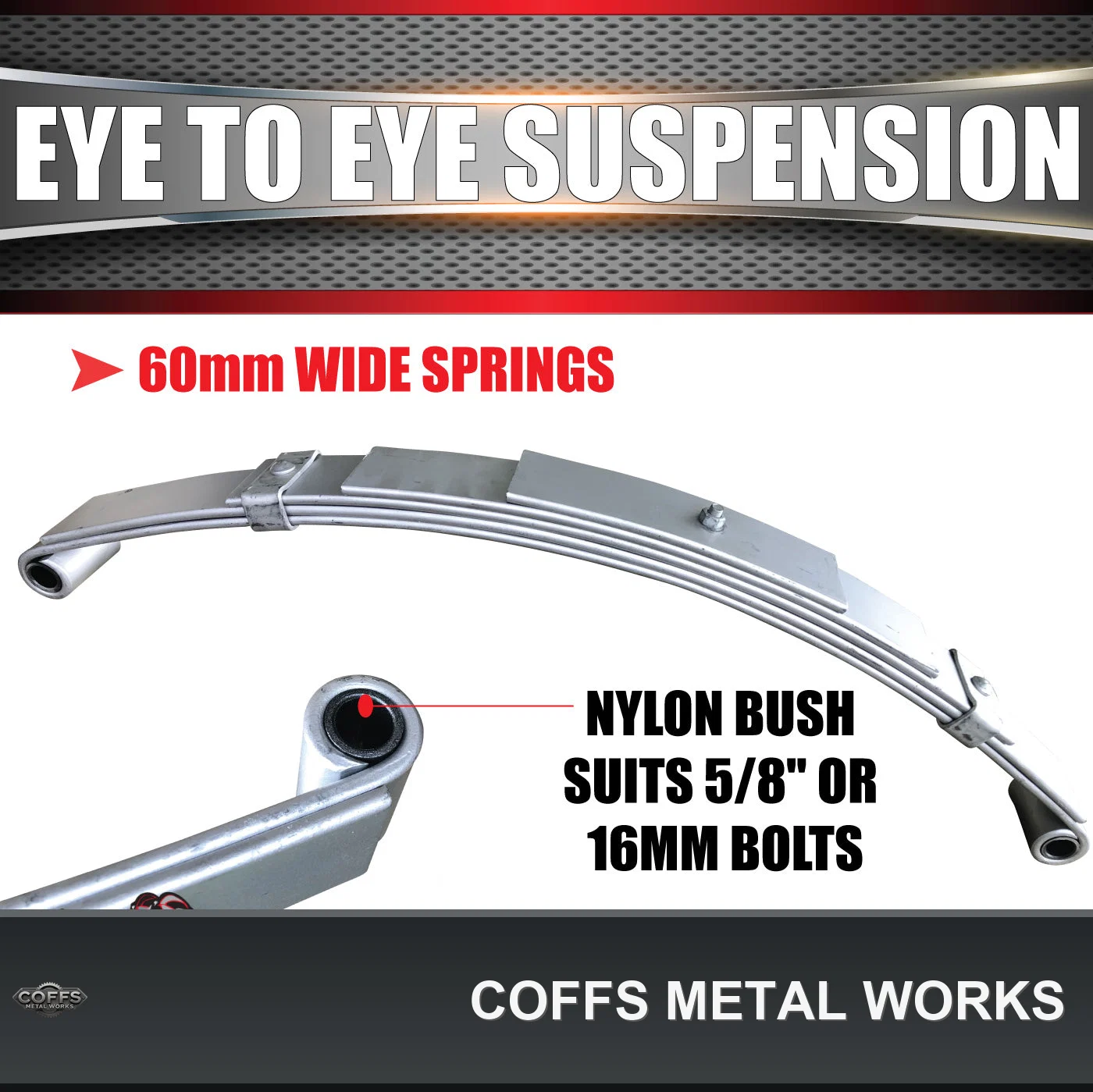

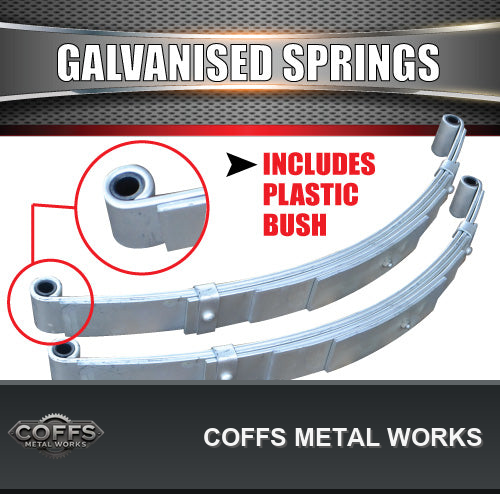

NYLON BUSH INSERTED
NYLON BUSH SUITS 5/8" OR 16MM BOLTS

EYE TO EYE SPRING SETUP BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
