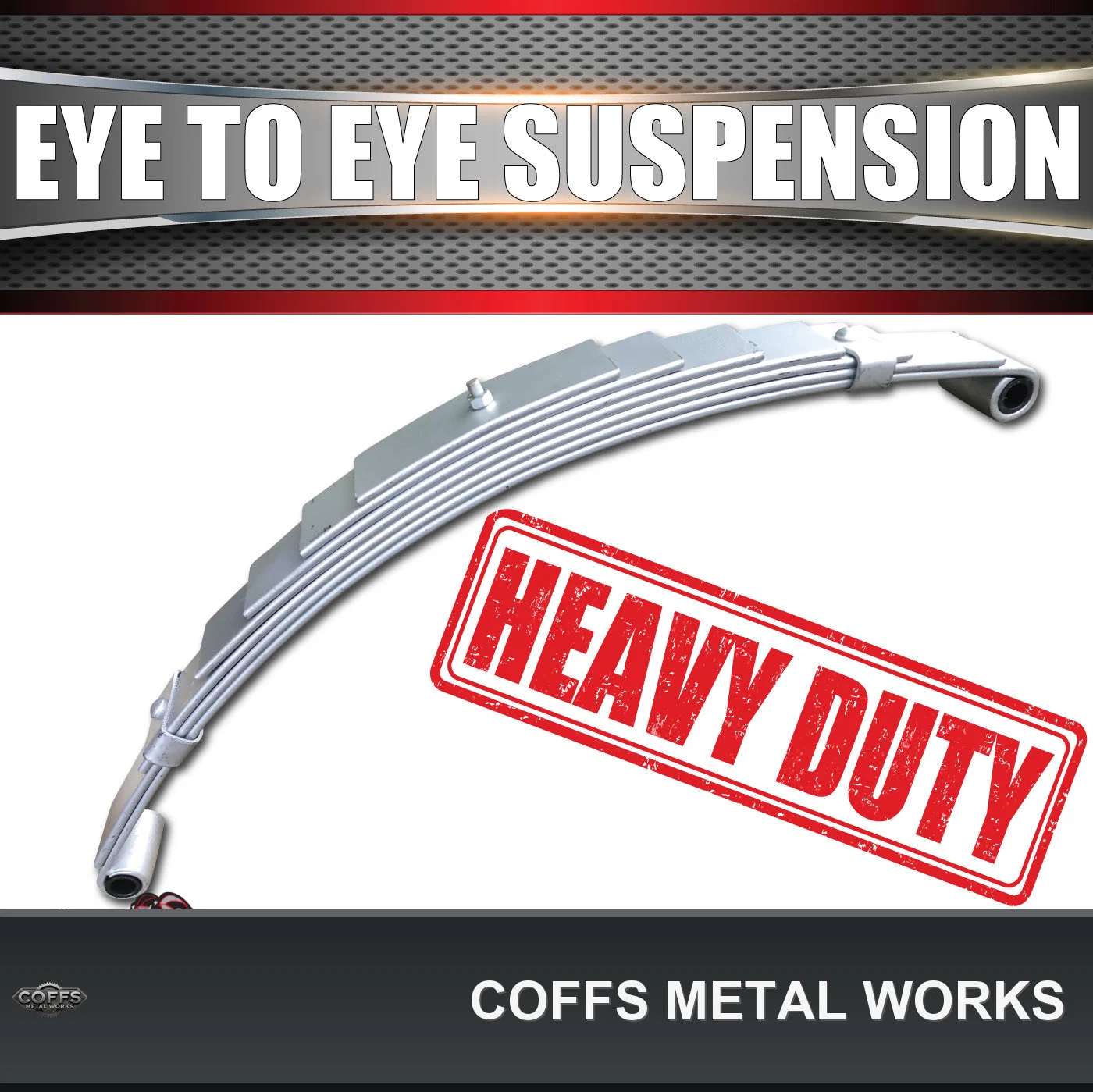

2x Galvanised Dacromet 60mm x 6mm Trailer Caravan 7 Leaf Eye to Eye Shackle Springs 1600kg Rated.

DACROMET FINISH 7 LEAF EYE TO EYE SPRINGS
RATED 1600KG PER PAIR

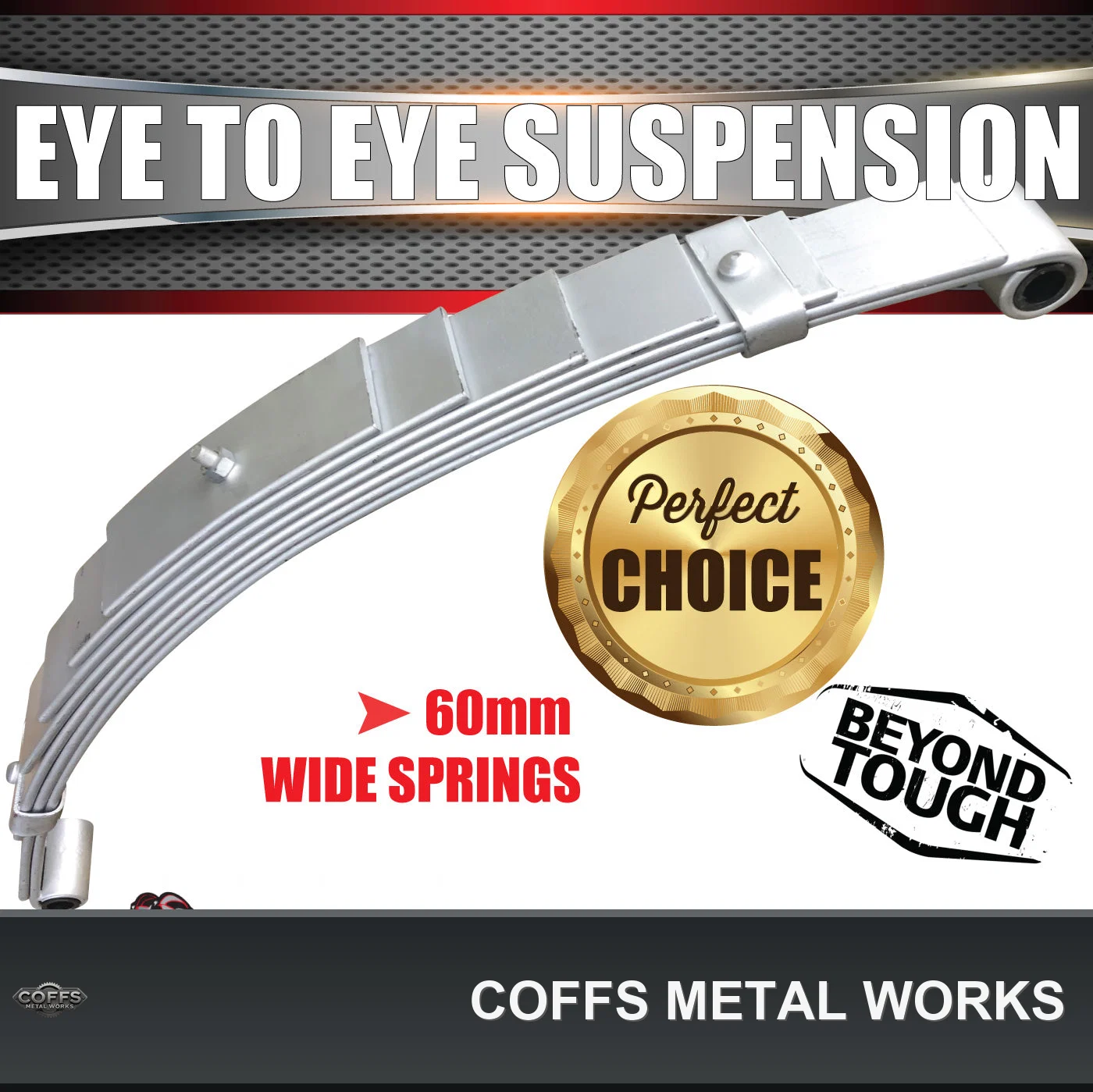

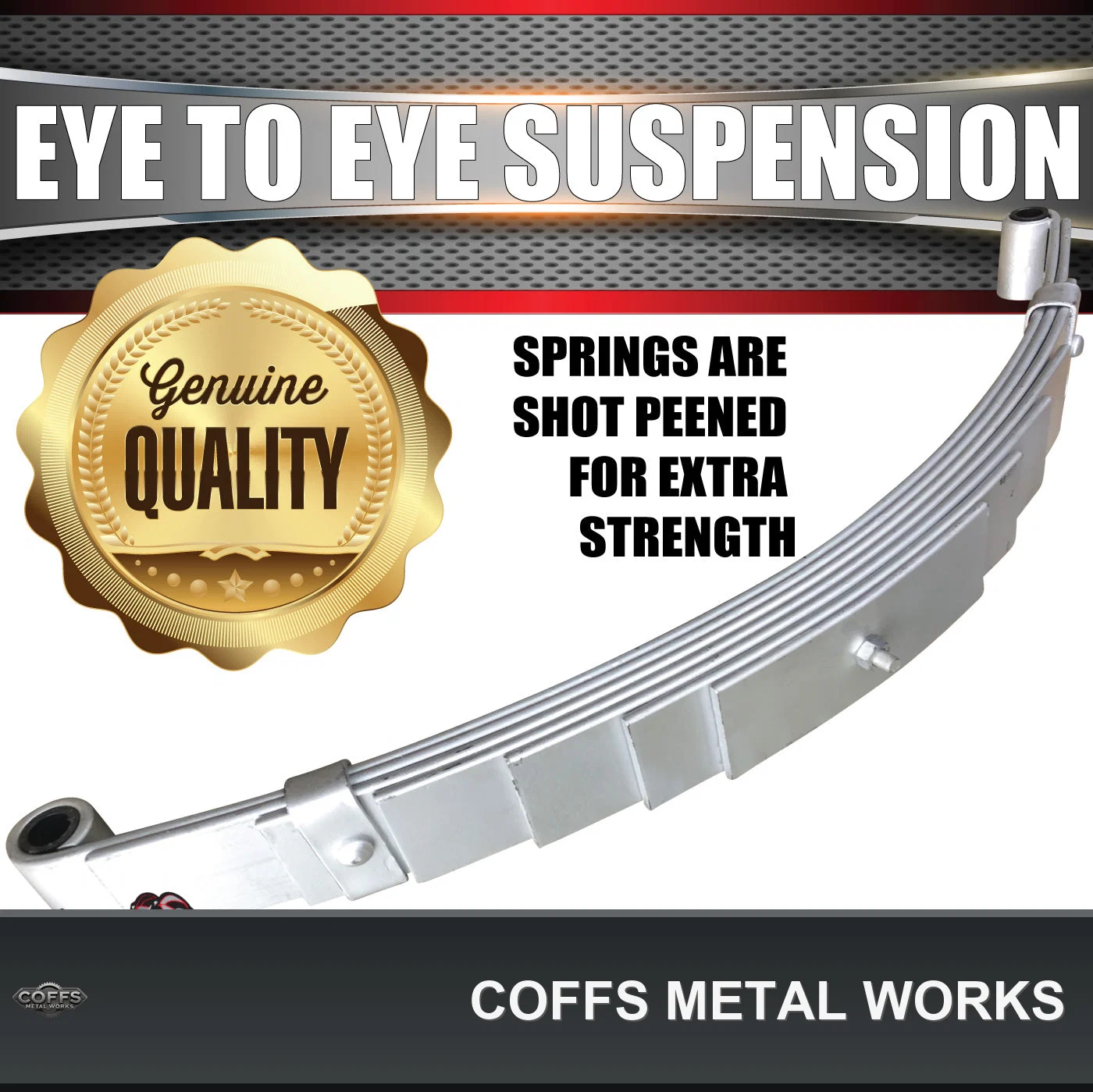

2X 60MM X 6MM 7 LEAF GALVANISED DACROMET FINISH EYE TO EYE SPRINGS (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
SPRINGS RATED TO 1600KG PER PAIR
SPRING LENGTH 715MM OVERALL
CENTRE OF EYE TO EYE OF SPRING LENGTH 680MM
CAMBER ARC HEIGHT 135MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)
PLEASE NOTE THESE SPRINGS HAVE AN OFFSET CENTRE LOCATION OF 60MM

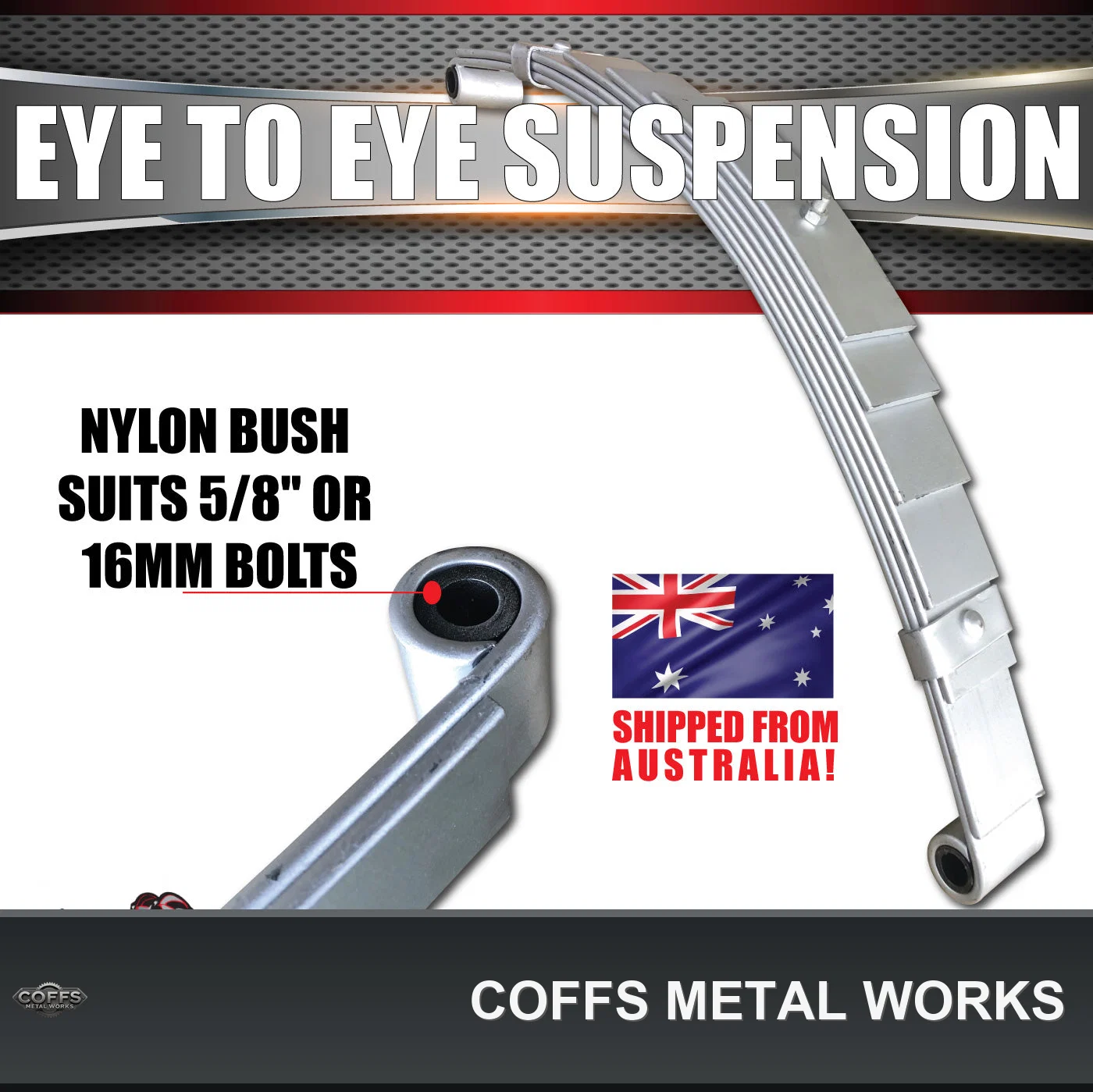

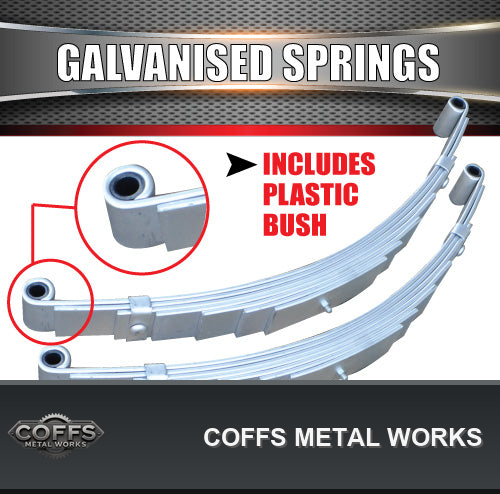

NYLON BUSH INSERTED
NYLON BUSH SUITS 5/8" OR 16MM BOLTS

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

EYE TO EYE SPRING SETUP BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
