x2 405 x 150 NEWTON GAS STRUTS
x4 10MM BALL GAS STRUT BRACKETS
these struts are generally used under tool box lids and caravan shutters
lifts approx 15kg per pair
European seals

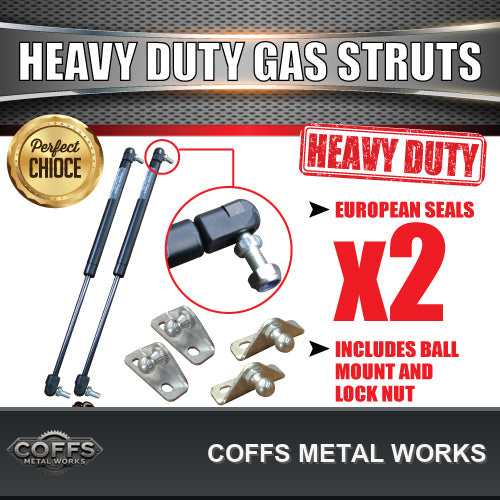

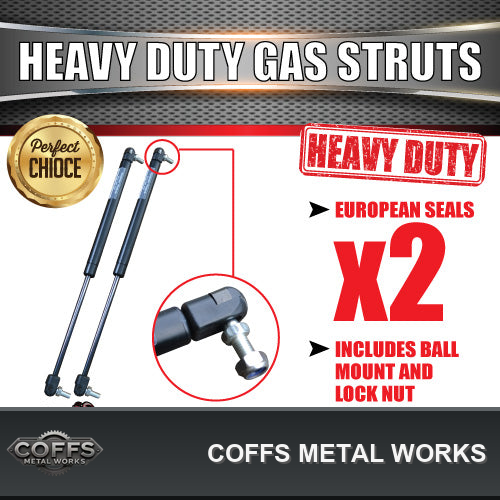

2x 150 newton x 405mm open shaft gas struts

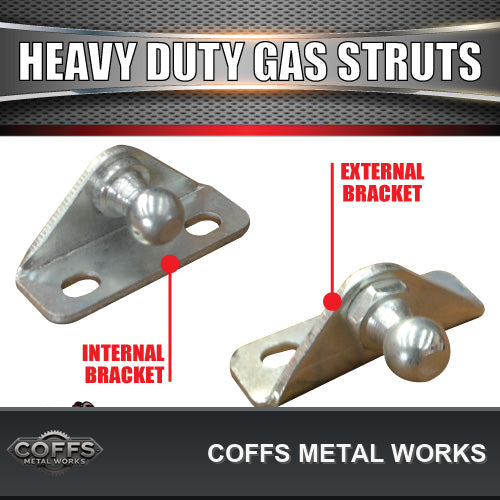

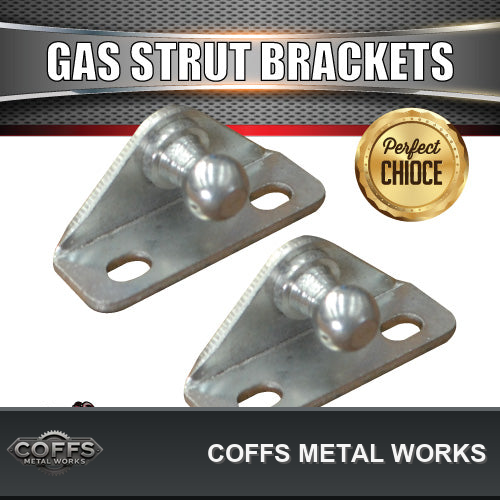

2x internal mount brackets (let us know on ordering if you require all internal or all external brackets)

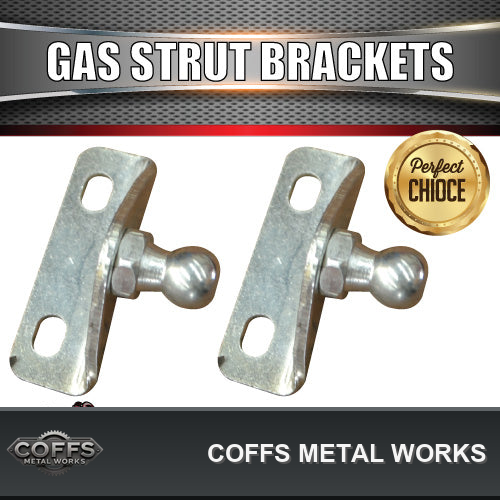

2x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 8mm
ball diameter 10mm

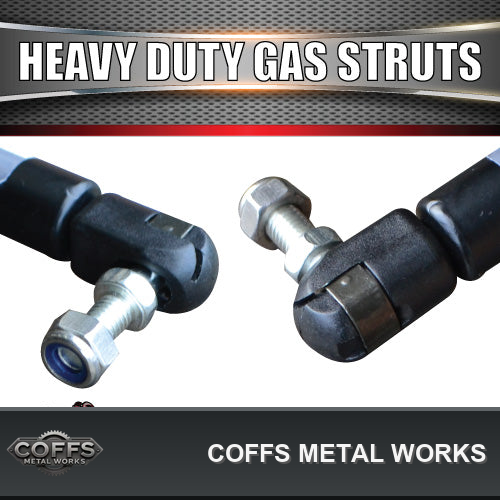

comes with mount ball bolts and nyloc nuts
STROKE LENGTH (A) MM = 165
EXTENDED LENGTH (B) MM = 405
PISTON ROD (D1) MM = 8
PISTON CYLINDER (D2) MM = 18
FORCE RANGE NEWTON = 150
What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
