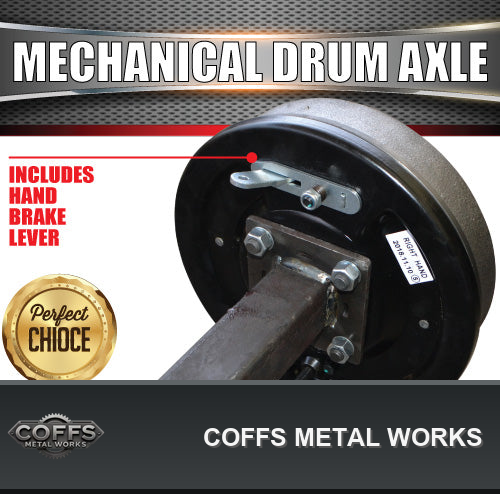

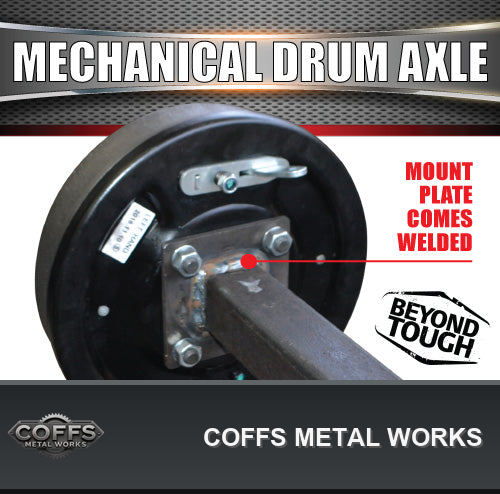

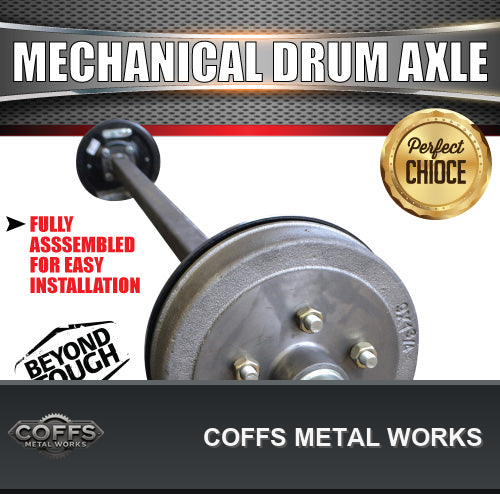

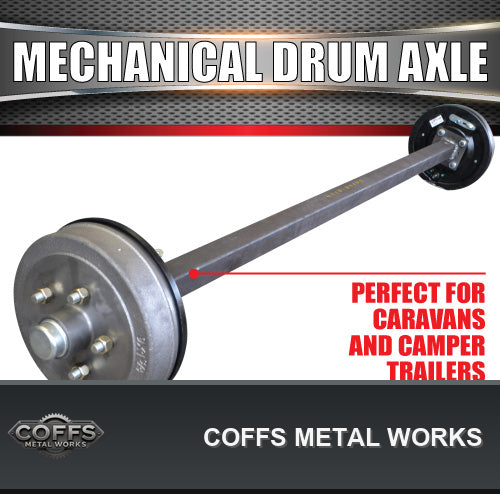

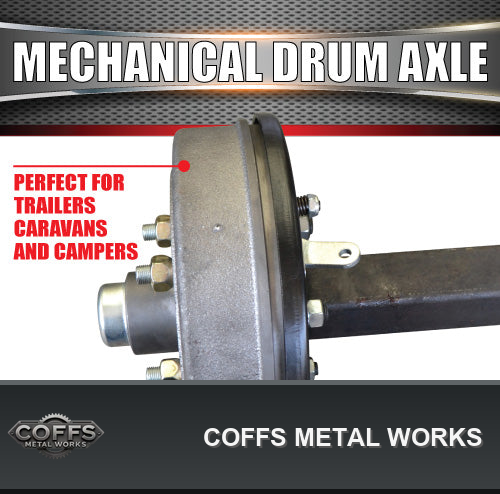

40mm Square Trailer Caravan Mechanical Drum Braked Axle. 1000Kg rated 63"-77"

40MM SQUARE SOLID COMPLETE MECHANICAL DRUM BRAKED AXLE
(1000KG RATED)
available axle lengths 60" - 77" (for longer axles SKU: 174252663867)


AVAILABLE LENGTHS
60", 1525MM TIP TO TIP (1425MM HUB FACE TO HUB FACE)
63", 1600MM TIP TO TIP (1500MM HUB FACE TO HUB FACE)
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)

AVAILABLE PATTERNS
FORD 5 STUD (5/114.3 PCD, 1/2" STUDS AND NUTS)
HOLDEN HT 5 STUD (5/108 PCD, 7/16" STUDS AND NUTS)
HOLDEN HQ 5 STUD (5/120.65 PCD, 7/16" STUDS AND NUTS)
HOLDEN COMMODORE 5 STUD (5/120 PCD, 7/16" STUDS AND NUTS)
6 STUD LANDCRUISER PCD 6/139.7 (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER 5/150 (5/150 PCD, 9/16" STUDS AND NUTS)

40MM SOLID AXLE
ASSEMBLED WITH LM BEARINGS AND AUTO GREASE
S.G CASTING DRUMS (MUCH STRONGER THEN GREY IRON)
