50mm Ball Mechanical Brake Boat Trailer Coupling Kit With 75mm Marine Lever

MECHANICAL BRAKED 50mm BALL COUPLING
WITH MARINE 75MM LEVER KIT
2000KG RATED

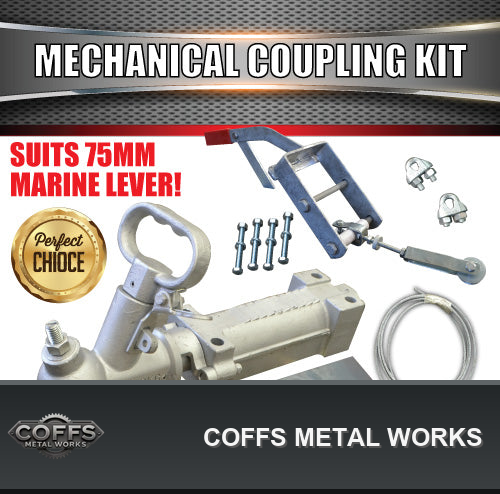

FULL KIT INCLUDES
1X 2000KG 4 HOLE OVERRIDE DACROMET FINISH 50mm BALL COUPLING (CRN 51628)
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
1X 4 HOLE WELD ON COUPLING BASE PLATE
1X GALVANISED MECHANICAL MARINE LEVER ( TO SUIT 75MM DRAW BAR, PLEASE DOUBLE CHECK )
1X 8 METRES 4MM BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT

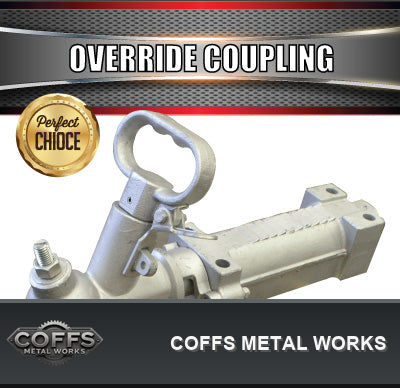

Coffs Metal Works OVERRIDE COUPLING
ADR COMPLIED 4177.3
CRN APPROVED: CRN NUMBER 51628
ROVER APPROVAL NUMBER: CTA-051628
HOLE CENTERS APPROX: 183MM (front to rear) X 55MM (left to right)
RATED: 2000KG MAXIMUM
SUITS BALL: 50MM
QUICK RELEASE LOCKABLE SAFETY TRIGGER
ADJUSTABLE TOW BALL ANTI RATTLE SCREW
COMES WITH 2 GREASE NIPPLES TO LUBRICATE OVERRIDE SHAFT AND SPRING
FINISH: MARINE DACROMET
SUITED FOR: MECHANICAL OVERRIDE DRUM OR DISC BRAKES

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder
