50mm Ball Override Hydraulic Brake Trailer Coupling + 3/4" Master Cylinder Kit-3

Coffs Metal Works OVERRIDE BALL COUPLING
WITH 3/4 MASTER CYLINDER & HAND BRACKET
(2 TONNE RATING)

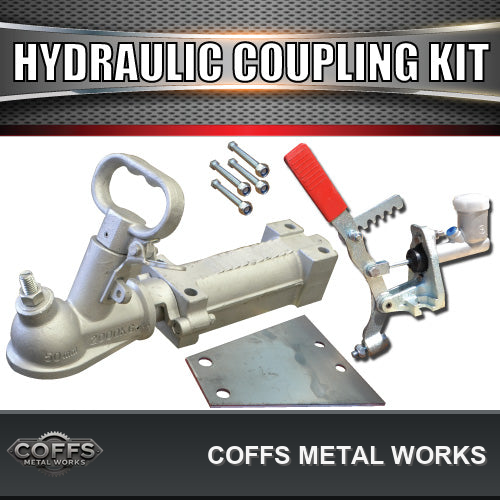

WITH THIS KIT YOU WILL RECEIVE:
1X 2000Kg GALVANISED DACROMET FINISH OVERRIDE 50MM BALL COUPLING (CRN 51628)

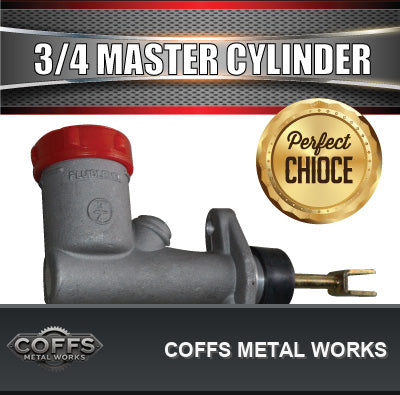

1X 3/4 MASTER CYLINDER

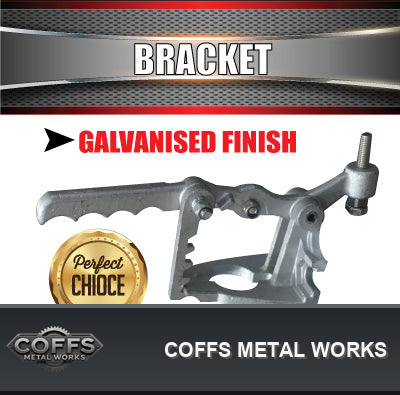

1X MASTER CYLINDER HAND BRAKE BRACKET
4X M12 X 100MM 8.8 HIGH TENSILE COUPLING BOLTS
4X NYLOC NUTS
2X STAINLESS STEEL MASTER CYLINDER BOLTS AND STAINLESS NYLOC NUTS
1X 4 HOLE WELD ON MOUNTING PLATE

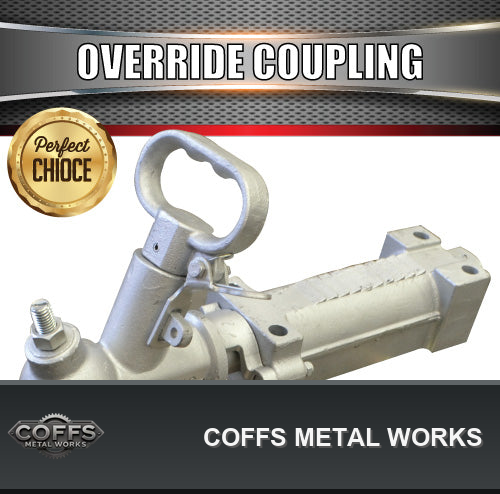

Coffs Metal Works OVERRIDE COUPLING
ADR COMPLIED 4177.3
CRN APPROVED: CRN NUMBER 51628
ROVER APPROVAL NUMBER: CTA-051628
HOLE CENTERS APPROX: 183MM (front to rear) X 55MM (left to right)
RATED: 2000KG MAXIMUM
SUITS BALL: 50MM
QUICK RELEASE LOCKABLE SAFETY TRIGGER
ADJUSTABLE TOW BALL ANTI RATTLE SCREW
COMES WITH 2 GREASE NIPPLES TO LUBRICATE OVERRIDE SHAFT AND SPRING
FINISH: MARINE DACROMET
SUITED FOR: HYDRAULIC OVERRIDE DRUM OR DISC BRAKES

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder
