50mm Hydraulic Override Trailer Coupling & 7/8" Master Cylinder Bracket & Bolts

Coffs Metal Works GALVANISED DACROMET OVERRIDE BALL COUPLING
WITH 3/4" MASTER CYLINDER, HIGH TENSILE BOLTS & HAND BRAKE BRACKET
(2000KG RATING)

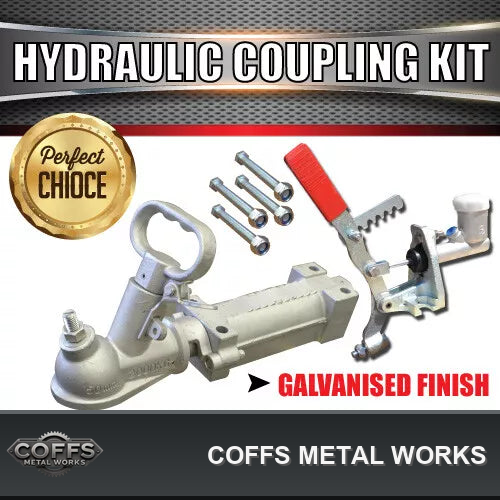

WITH THIS KIT YOU WILL RECEIVE:

1X 2000KG GALVANIZED DACROMET FINISH OVERRIDE BALL COUPLING (CRN 51628)

1X 7/8 MASTER CYLINDER

1X MASTER CYLINDER HAND BRAKE BRACKET

4X M12 X 100MM 8.8 HIGH TENSILE COUPLING BOLTS

4X NYLOC NUTS

2X STAINLESS STEEL MASTER CYLINDER BOLTS AND STAINLESS NYLOC NUTS

Coffs Metal Works OVERRIDE COUPLING
ADR COMPLIED 4177.3
CRN APPROVED: CRN NUMBER 51628
ROVER APPROVAL NUMBER: CTA-051628
HOLE CENTERS APPROX: 183MM (front to rear) X 55MM (left to right)
RATED: 2000KG MAXIMUM
SUITS BALL: 50MM
QUICK RELEASE LOCKABLE SAFETY TRIGGER
ADJUSTABLE TOW BALL ANTI RATTLE SCREW
COMES WITH 2 GREASE NIPPLES TO LUBRICATE OVERRIDE SHAFT AND SPRING
FINISH: MARINE DACROMET
SUITED FOR: HYDRAULIC OVERRIDE DRUM OR DISC BRAKES

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminium flake in an inorganic binder
