X2 585mm x 300 NEWTON GAS STRUTS

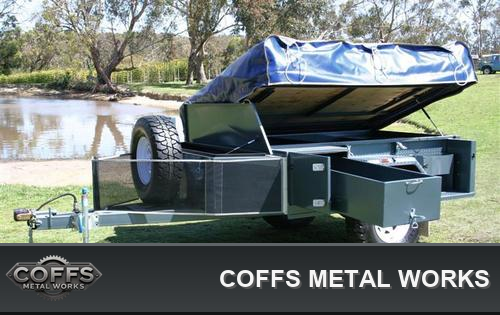

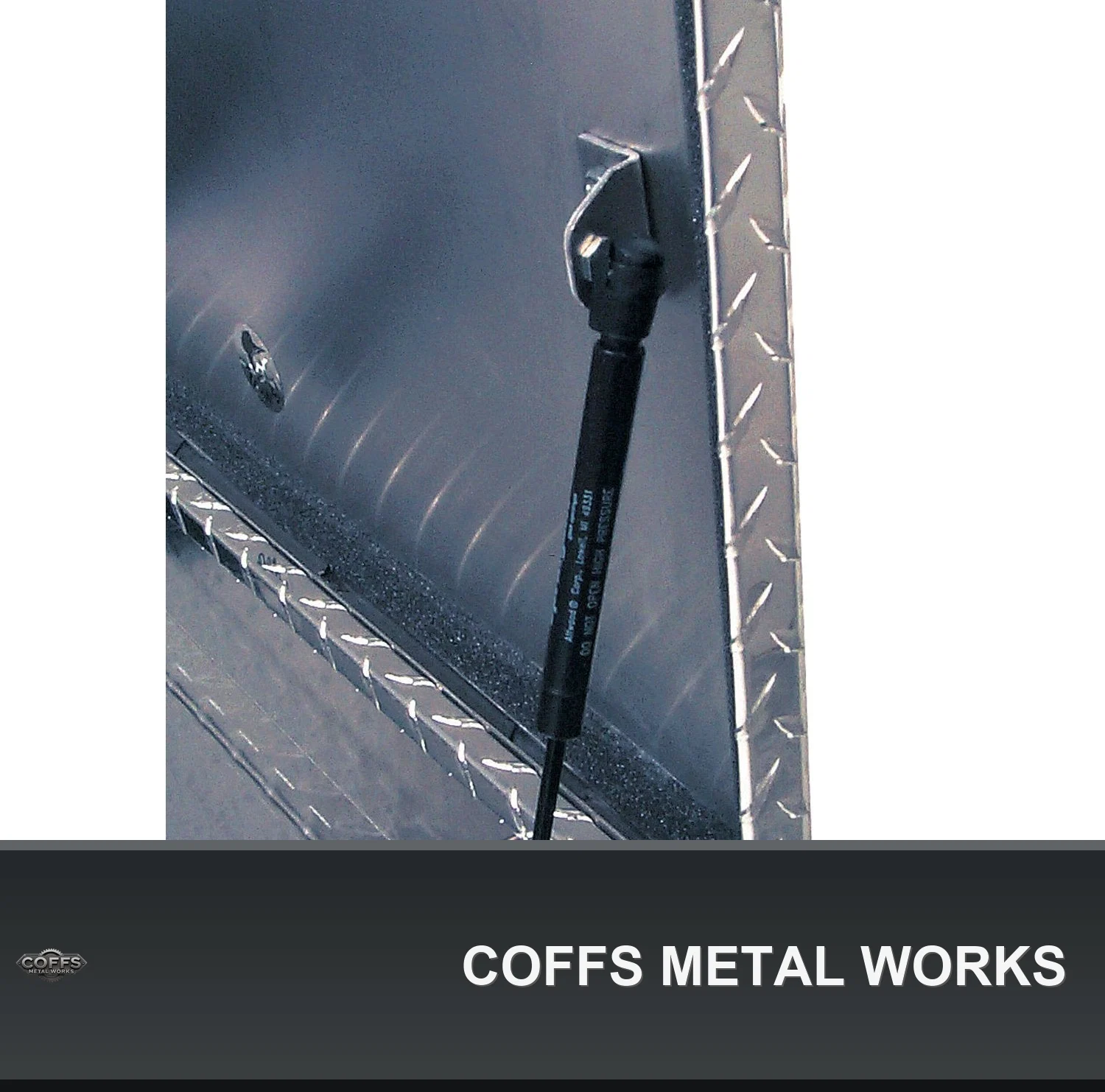

these struts are generally used under on tradesman trailer side and rear doors that are framed
lifts approx 30kg per pair
European seals
2x 300 newton x 585mm open shaft gas struts
shaft width 10mm
ball diameter 13mm

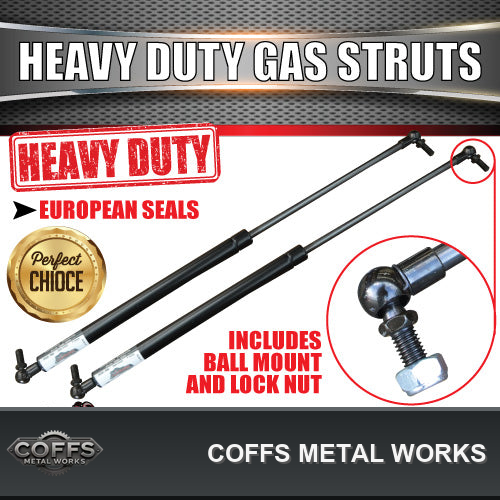

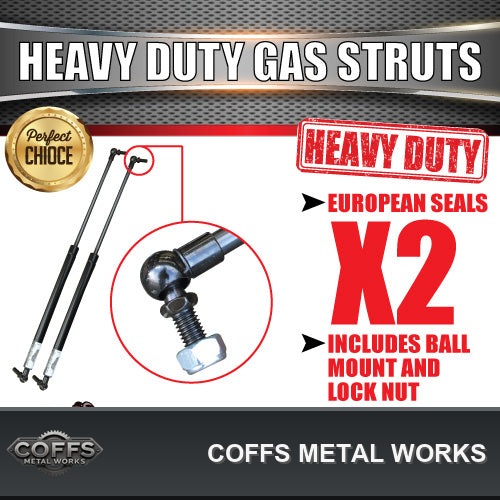

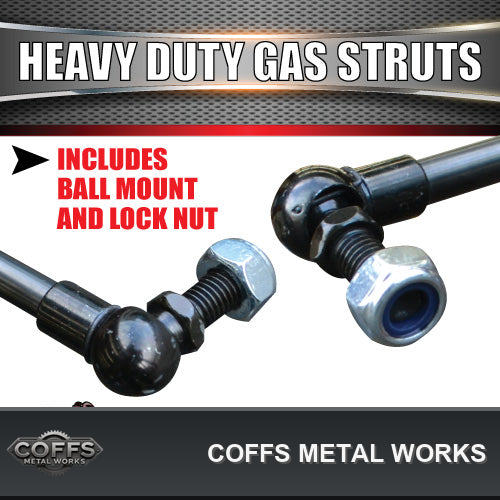

comes with mount ball bolts and nyloc nuts
STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 585
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 300
STRUT BRACKETS AVAILABLE IN OUR STORE
What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
