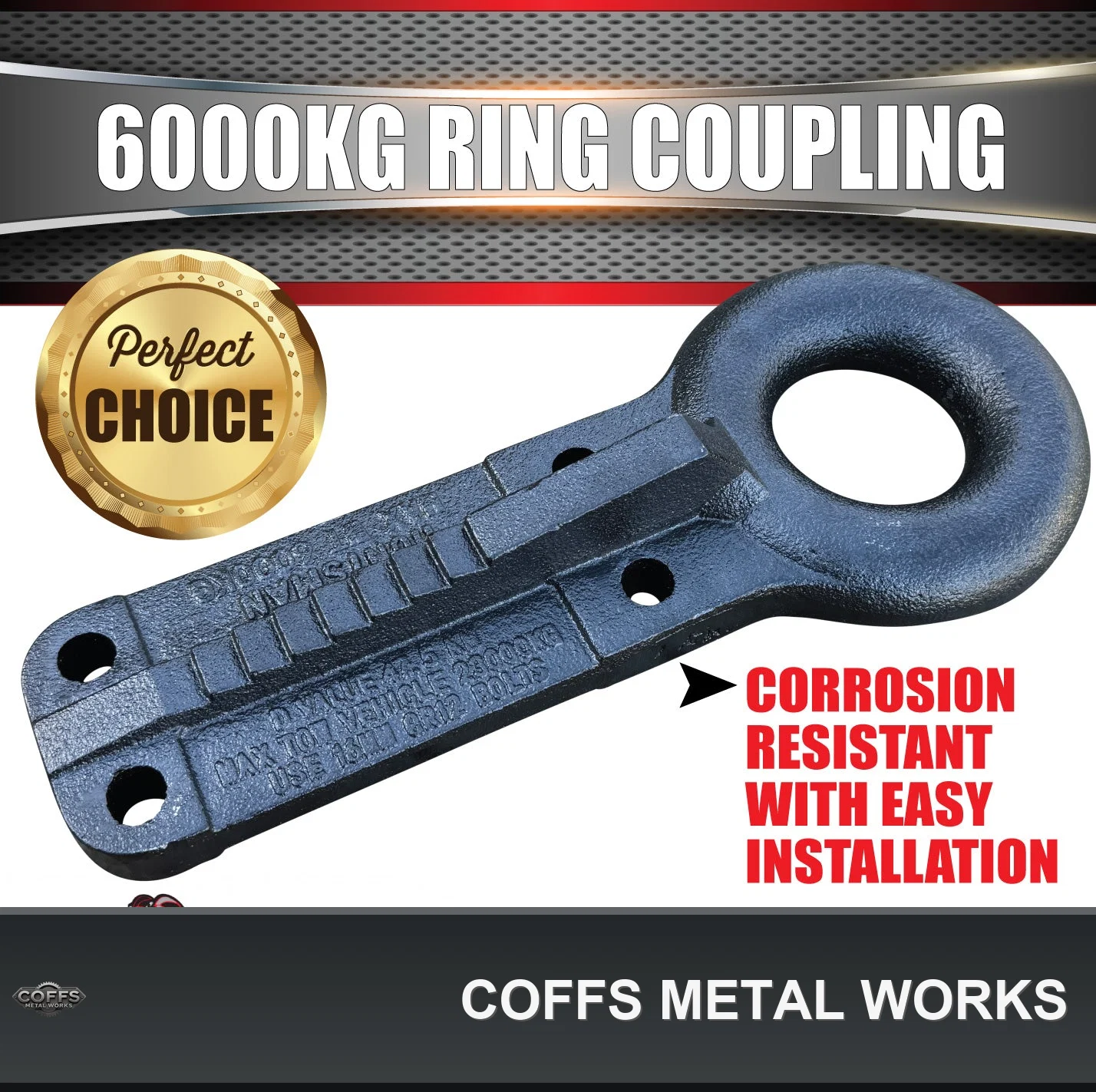

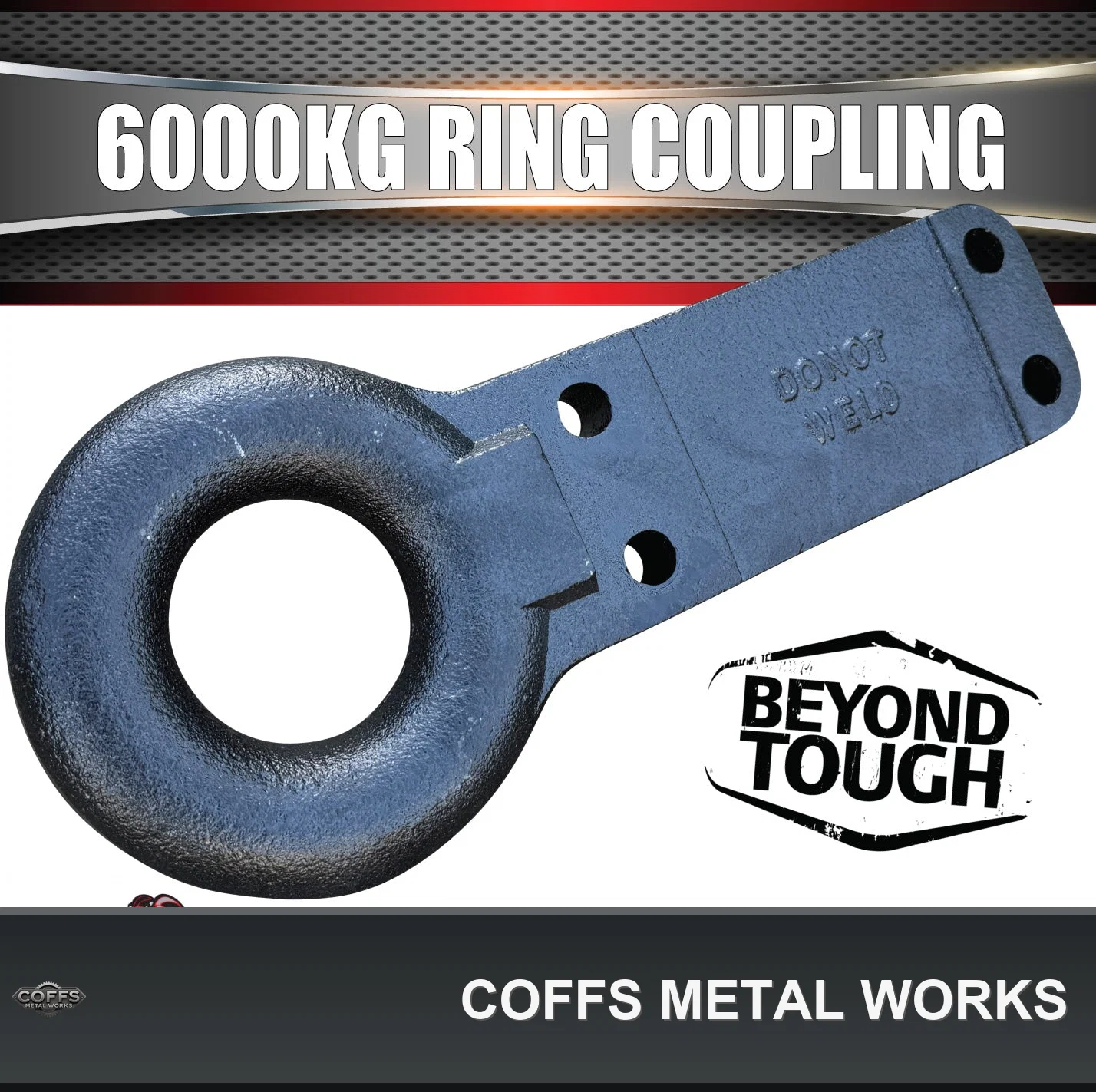

6000kg Trailer Ring Coupling & Handbrake Kit Suit Pintle Hook 3". Black E Coat

6000Kg 6T Fixed Ring Type Coupling & Handbrake Kit

3" (75mm ID, 116mm OD)

Black E Coat Finish

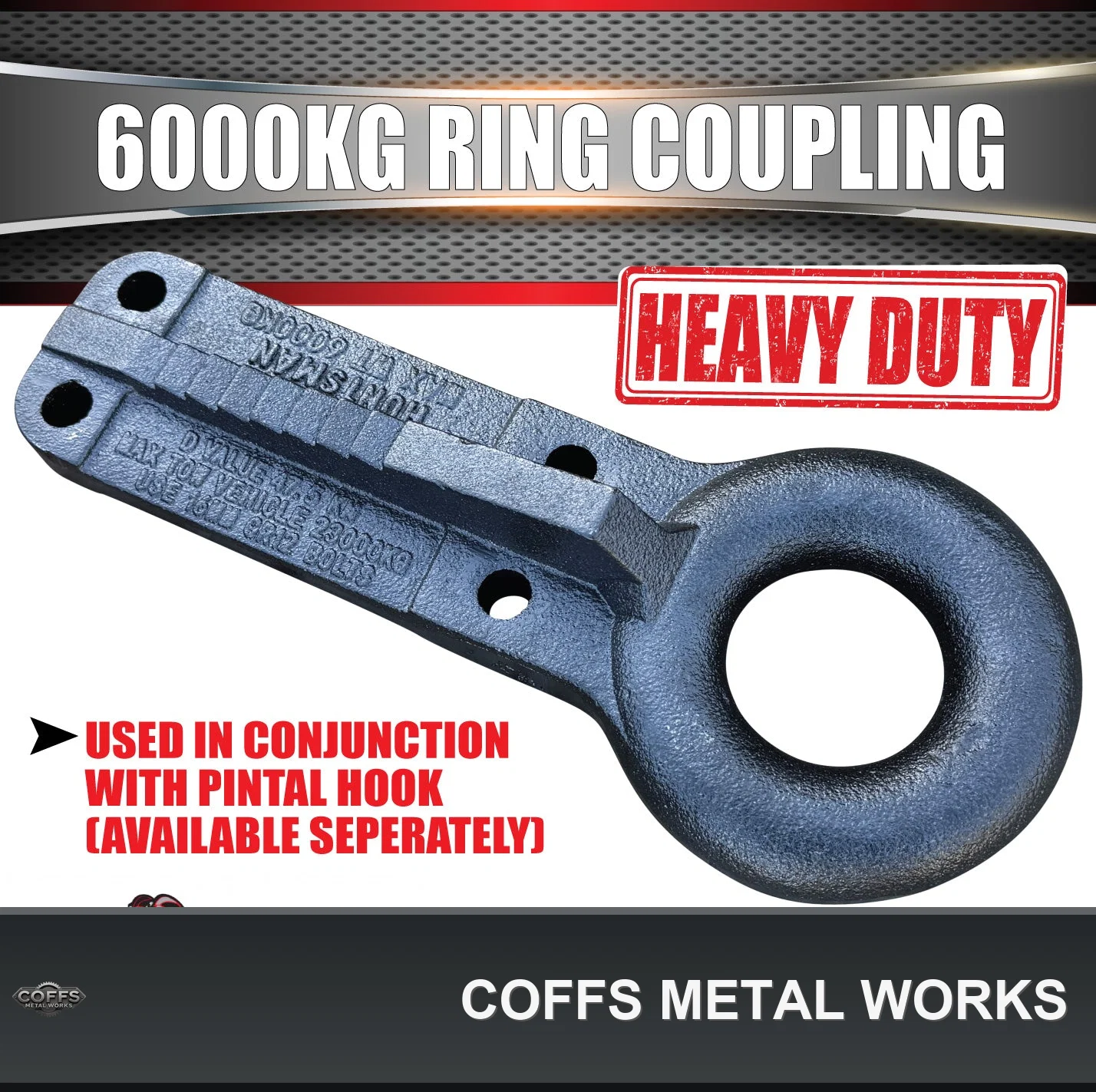

*  This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.

* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.

*As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.

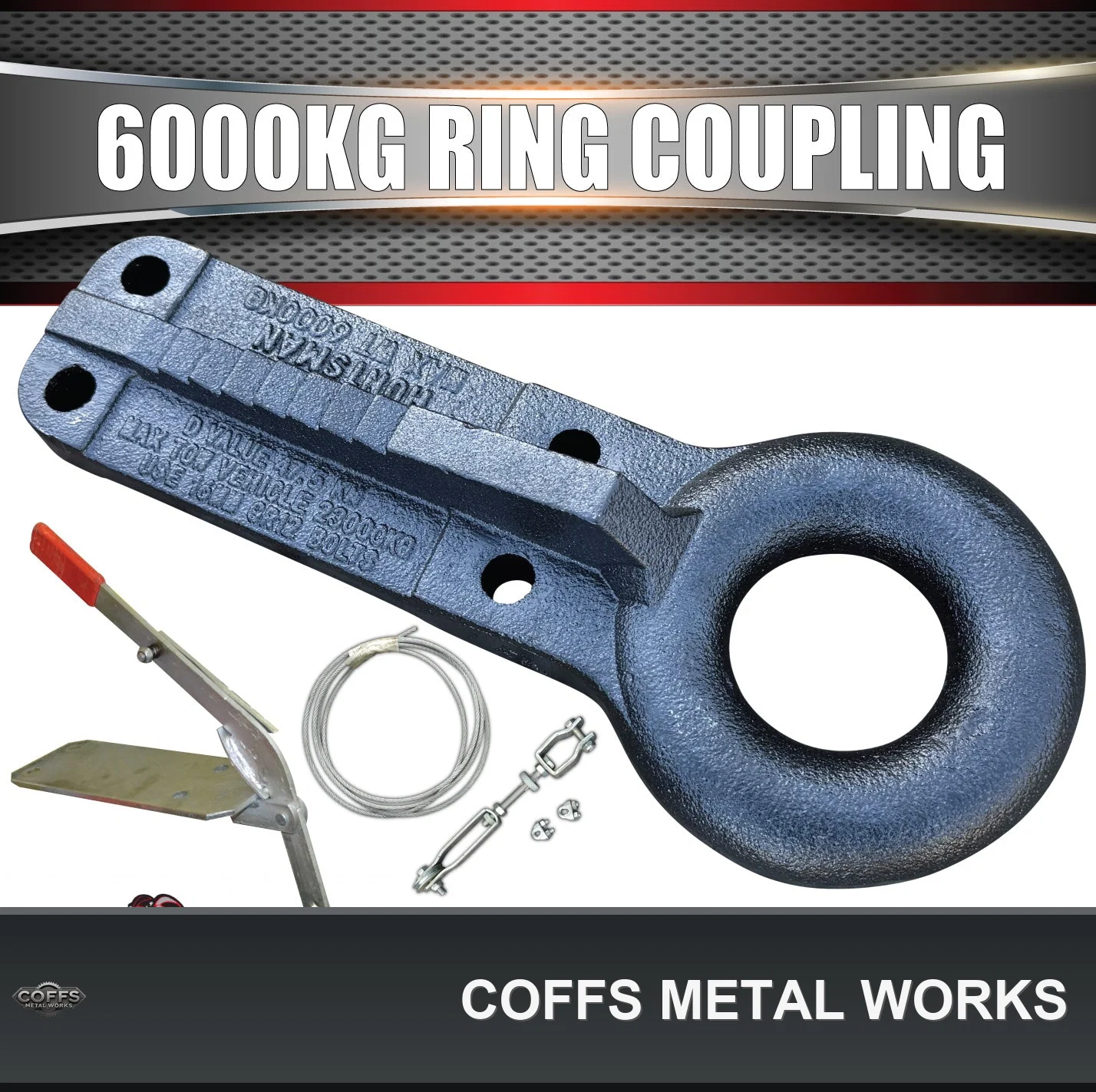

IN THIS KIT

1X 6000KG RING COUPLING

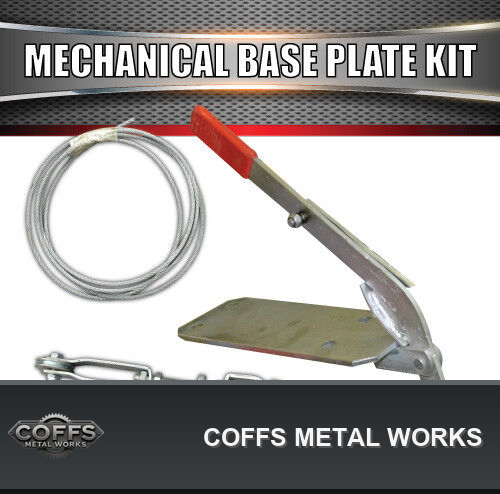

1X BASE PLATE WITH HANDBRAKE LEVER

8 METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)

1X CABLE ADJUSTER

2X CABLE CLAMPS

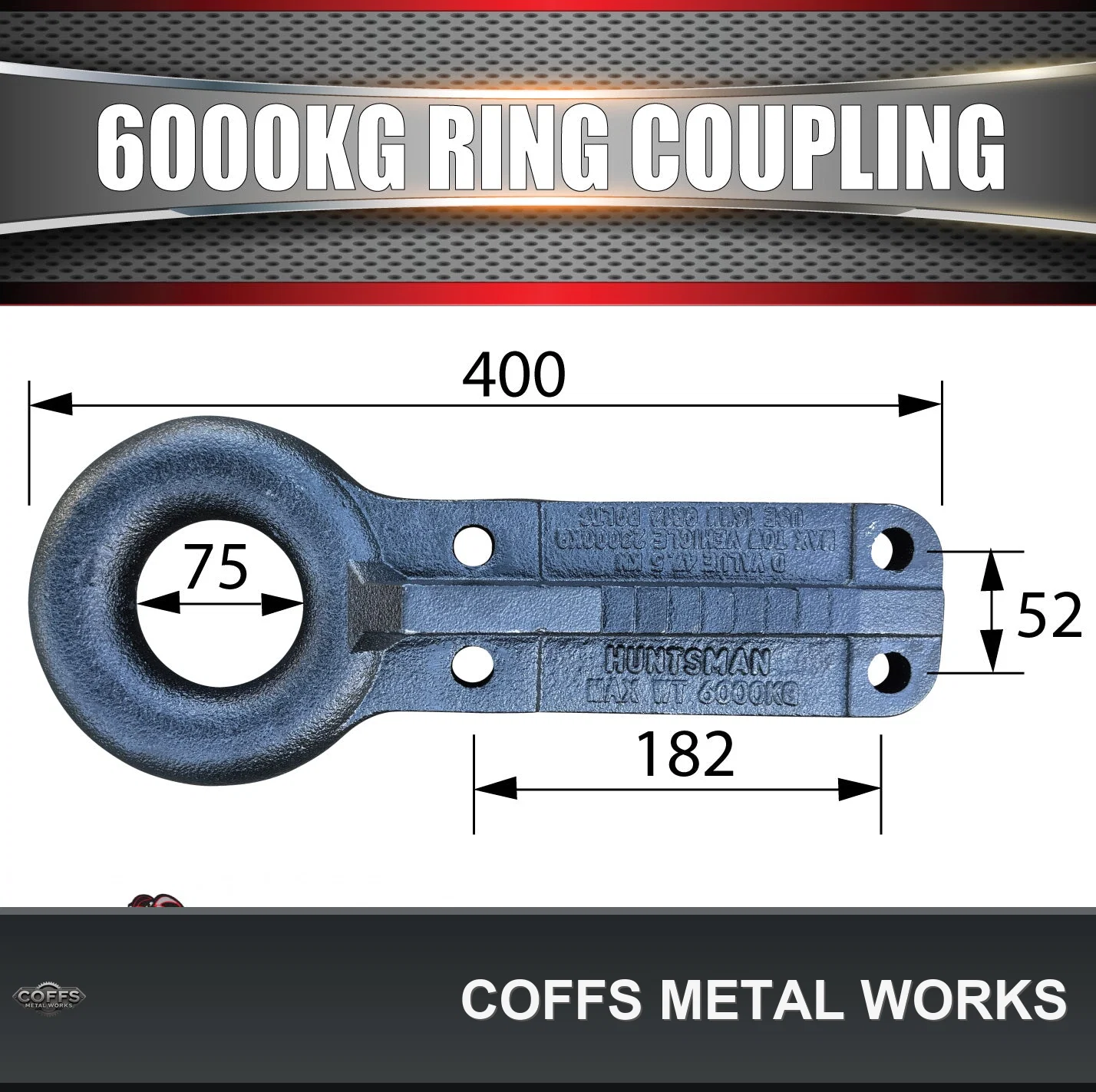

Fixed Ring Coupling, 6000kg 75mm,  4 hole Plated finish Suit Pintle.

Rating: 6000kg

Ring Size: 75mm (3")

Mounting Hole: 182mm (L) x 52mm (W)

Mounting Hole Diameter: 16.8mm

Surface Finish: Black E Coat Finish

Ring centre to first mounting hole (Nominal): 116mm

D Value: 47.5KN

Electro-deposition Coating

Most Original Equipment Manufacturer (OEM) parts come from the factory with a primer called e-coat. E-coat stands for Electro-deposition Coating. The part is dipped into a primer bath and the e-coat adheres to the part with the help of an electrical process.
