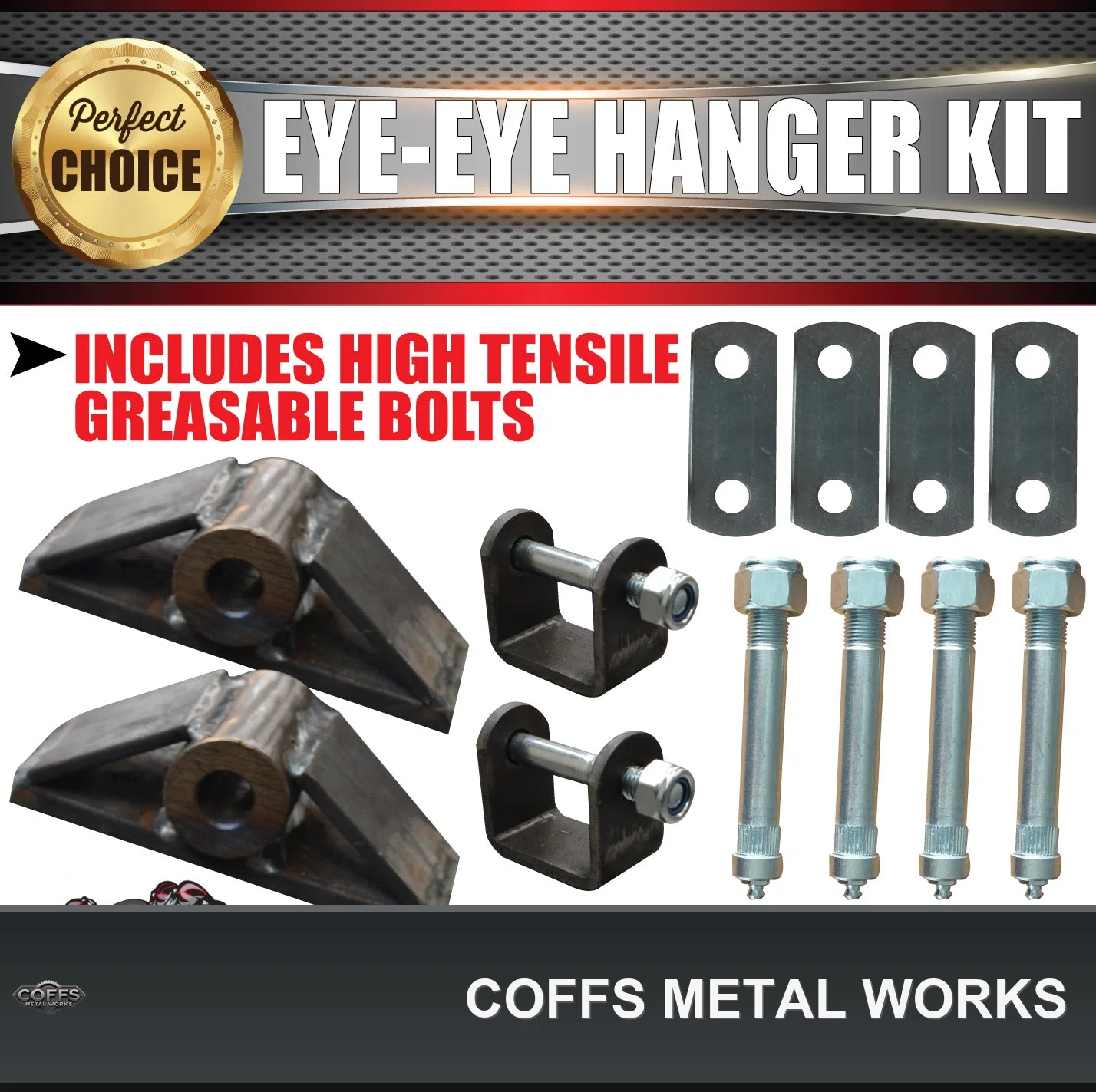

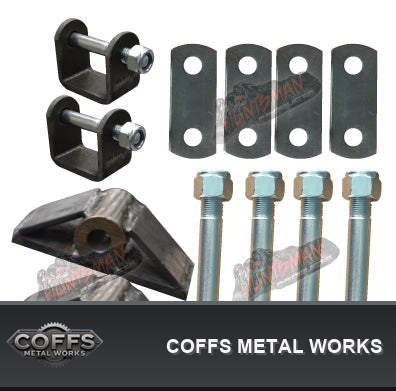

HANGER KIT TO SUIT 60mm EYE TO EYE SPRINGS
ALL HIGH TENSILE GREASABLE BOLTS
IN THIS KIT
2X REAR SHACKLE HANGERS. 60mm wide WITH DOUBLE STRENGTH PLATES WELDED. 5/8"5MM THICK SOLID EYE BUSH
2X FRONT EYE HANGERS. 8MM THICK. 40MM WIDE. APPROX 61MM ID. 5/8" BOLT HOLES. APPROX 62MM HIGH

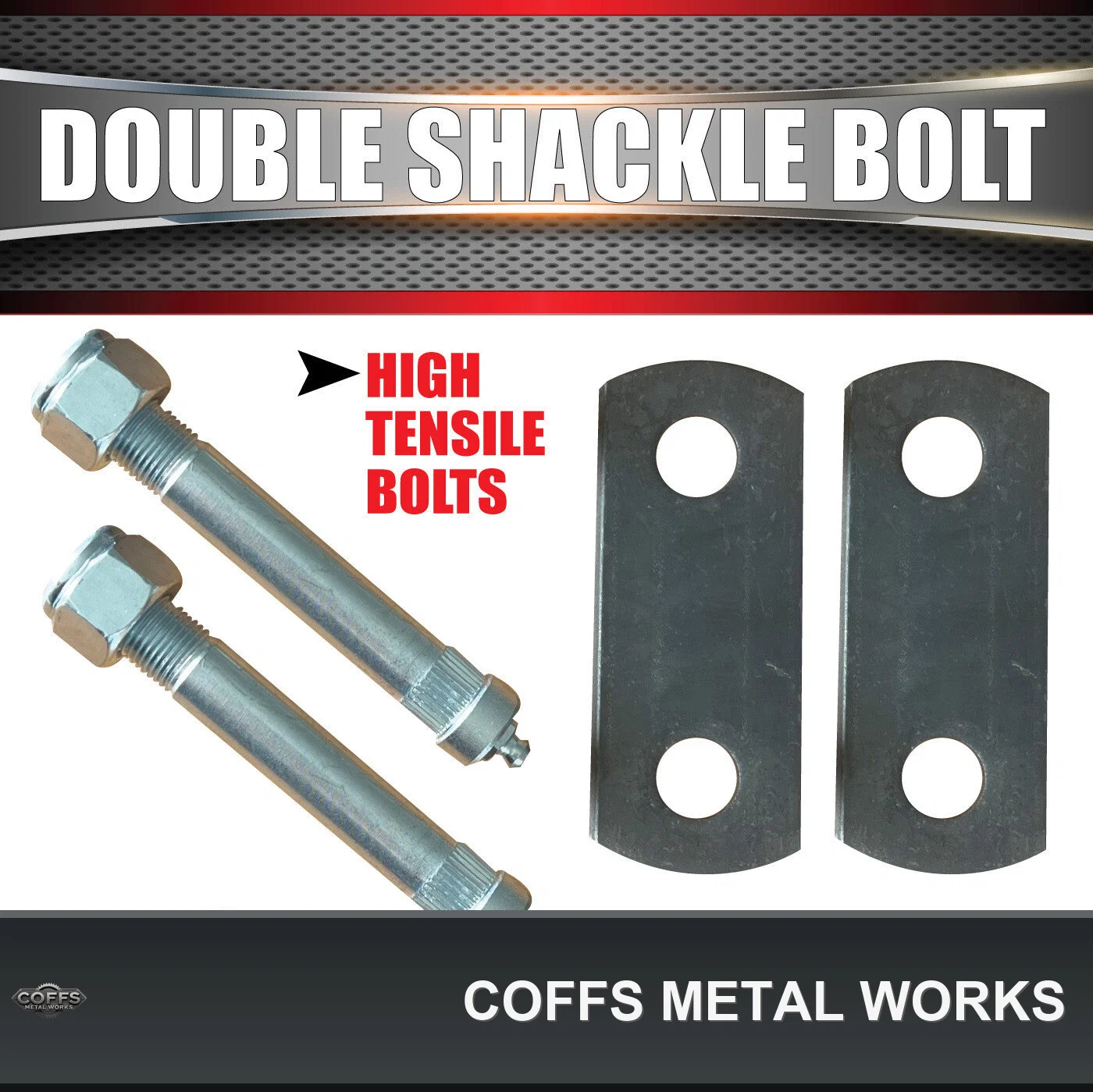

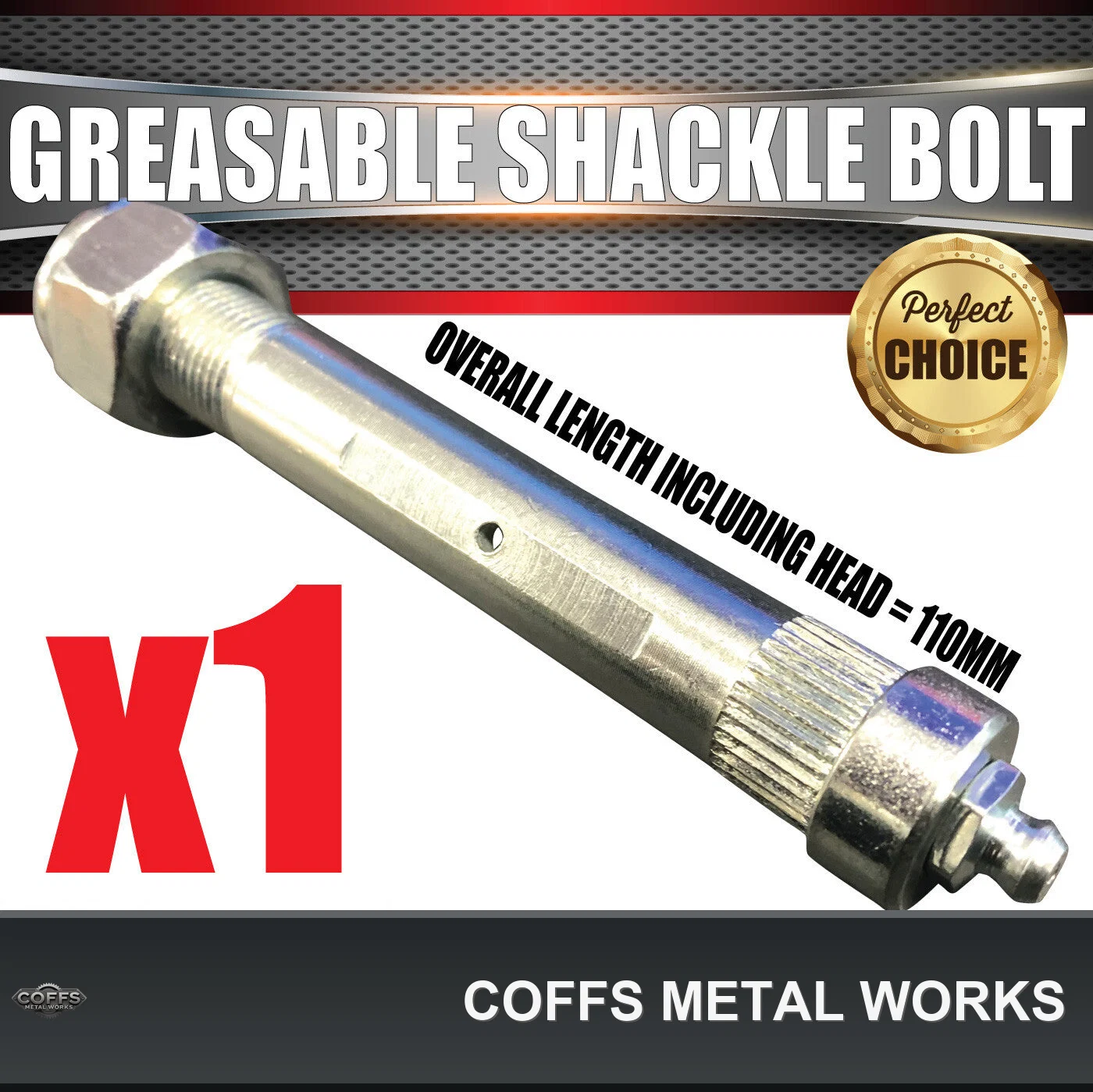

6X 5/8"X 110MM HIGH TENSILE ZINC FINISH SHACKLE BOLTS WITH GREASE NIPPLES & NYLOC NUTS. 27MM THREAD

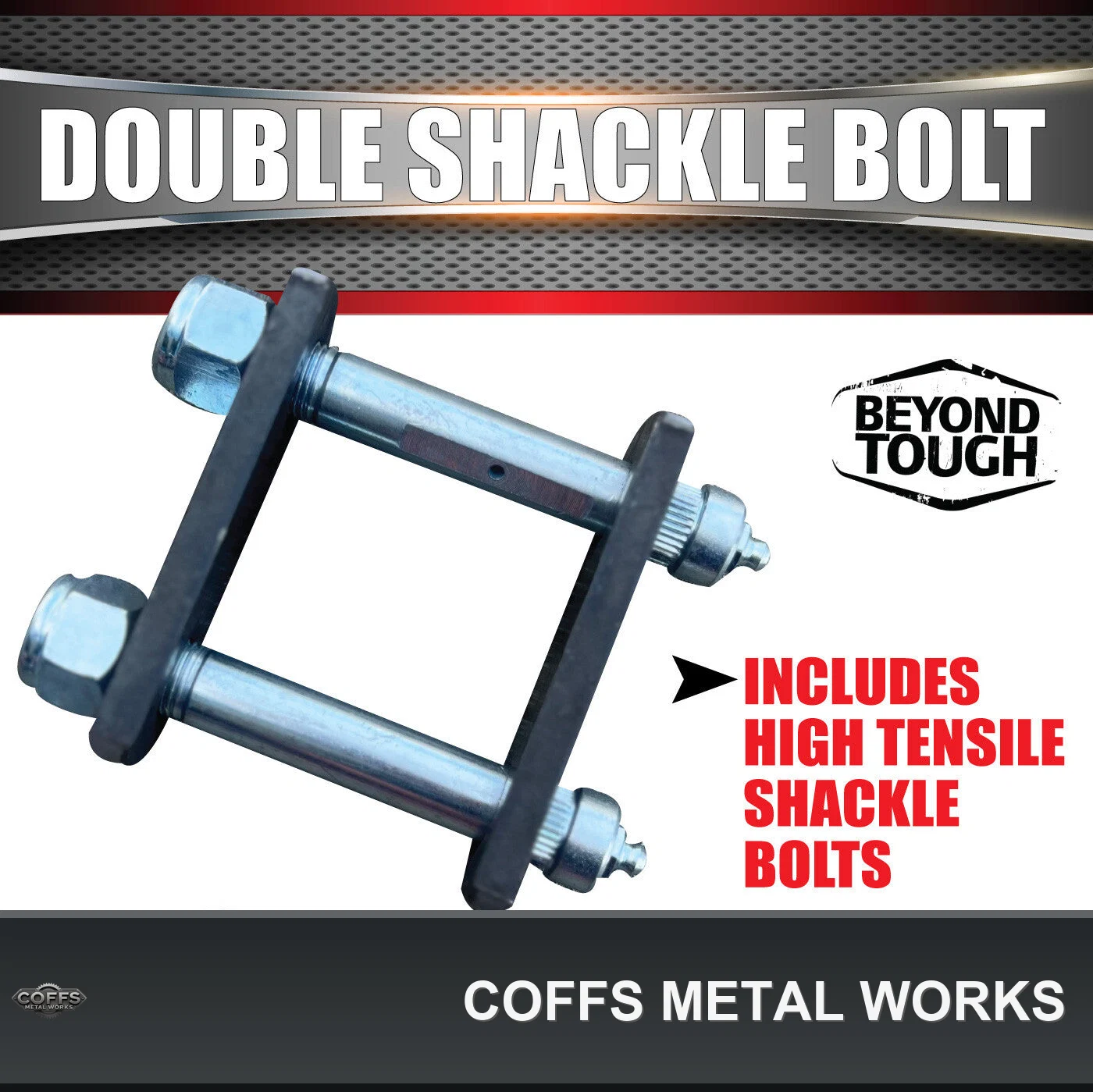

4X 60MM SHACKLE PLATES. 8MM THICK. HOLE CENTRES 65MM
