63mm Square solid 3 Tonne Trailer Caravan 12" Electric Braked Axle. 3000Kg

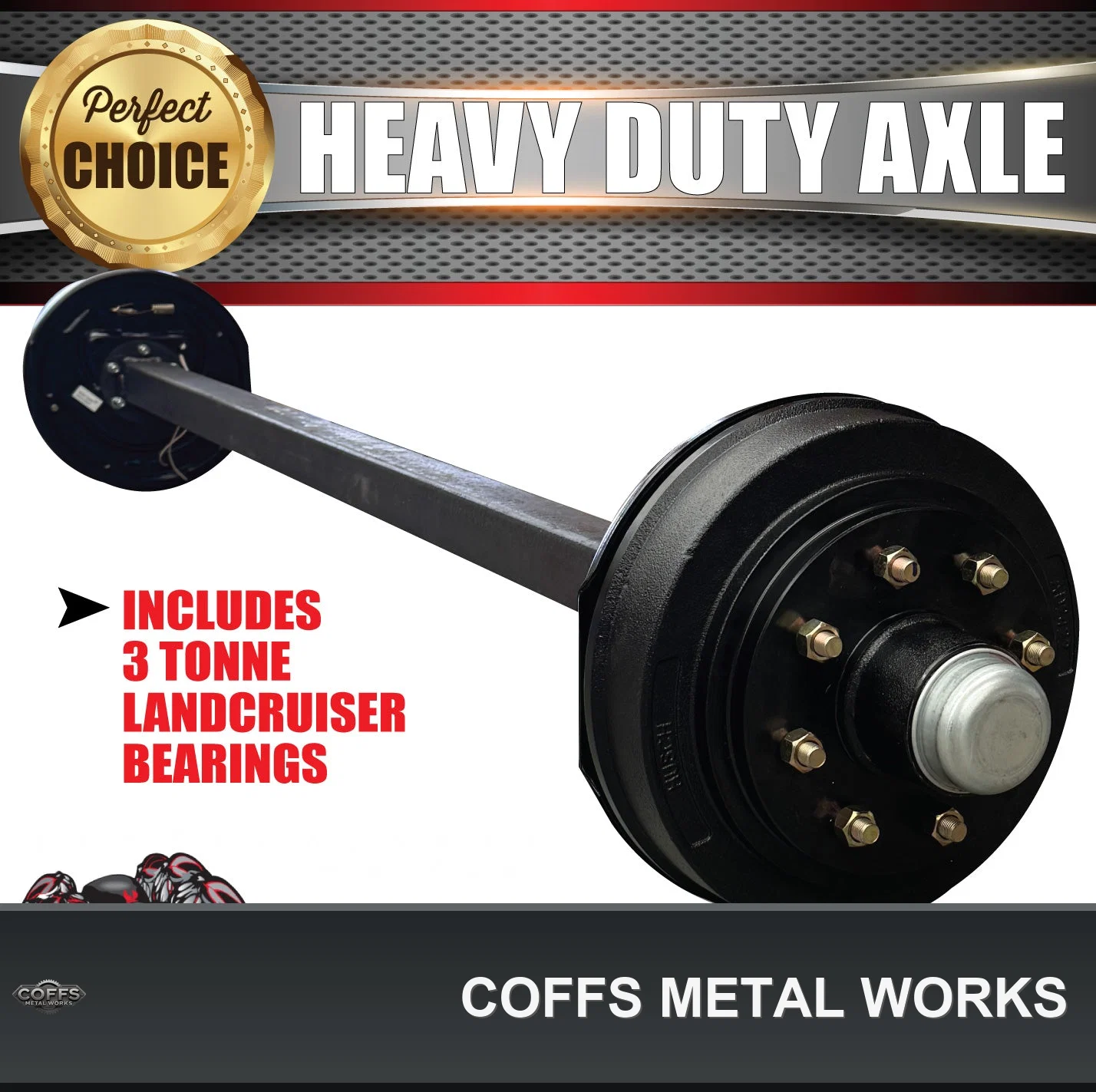

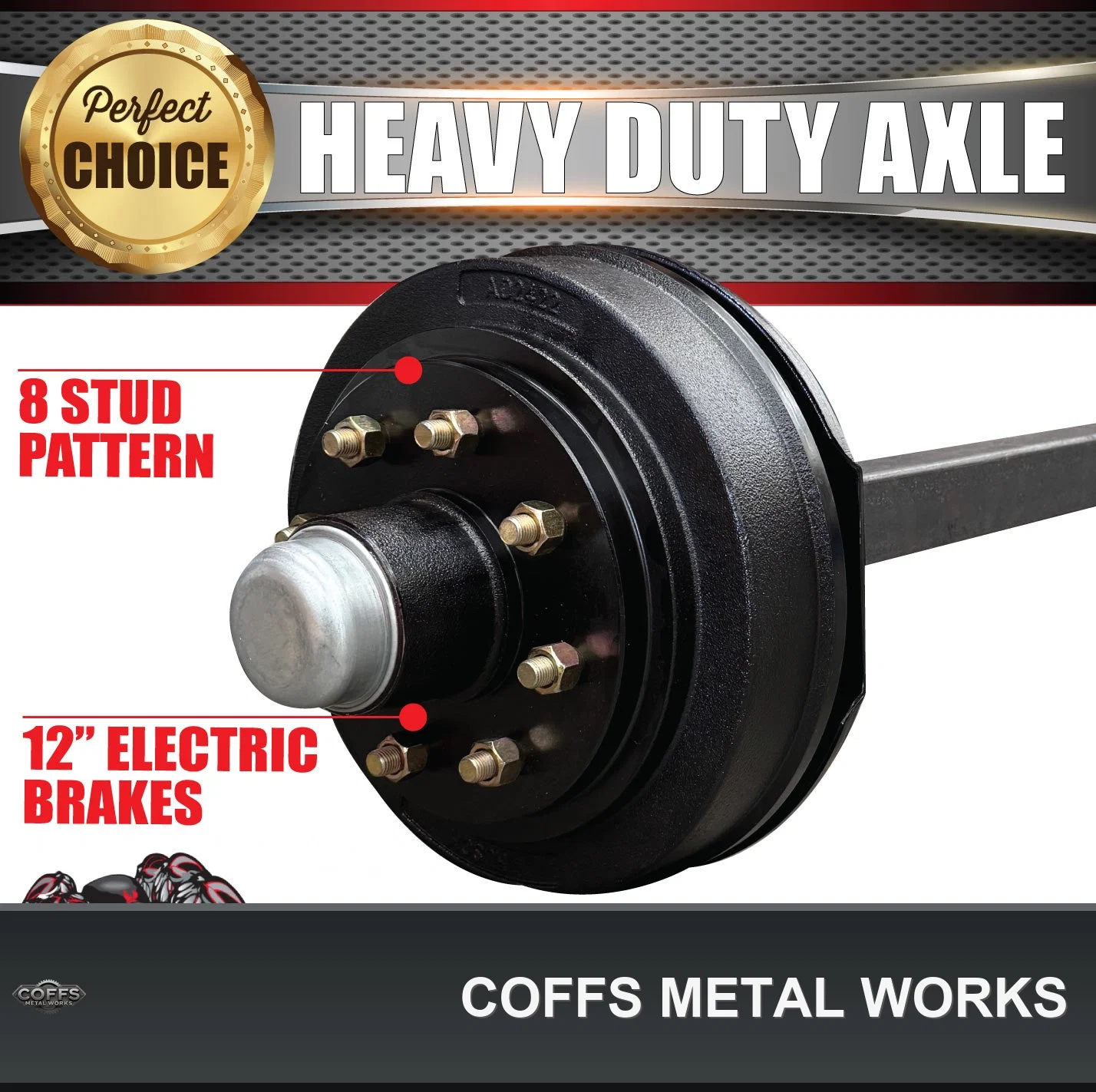

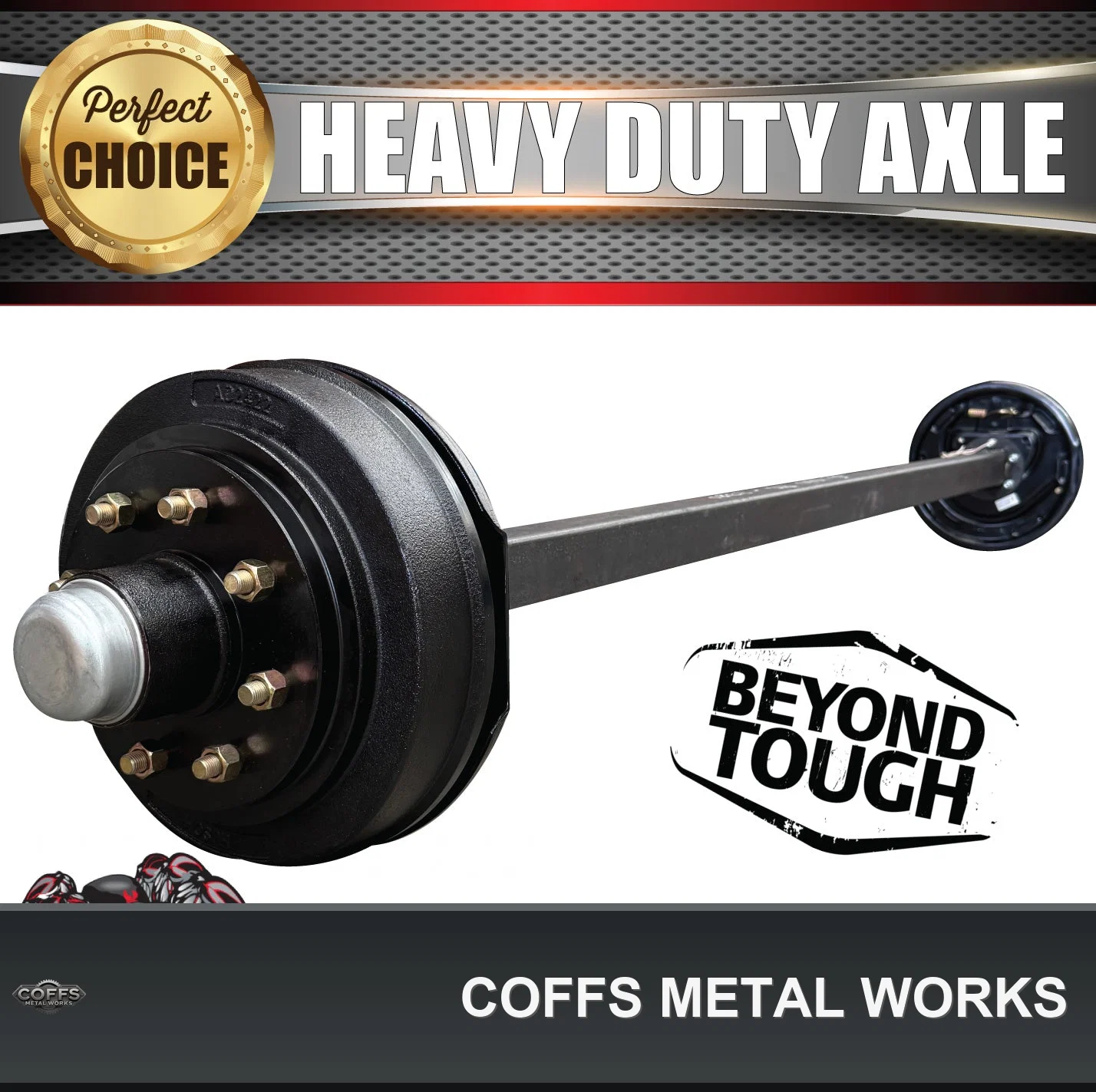

3 TONNE 63MM SQUARE SOLID 12" ELECTRIC BRAKED AXLE

3000KG RATED PER AXLE

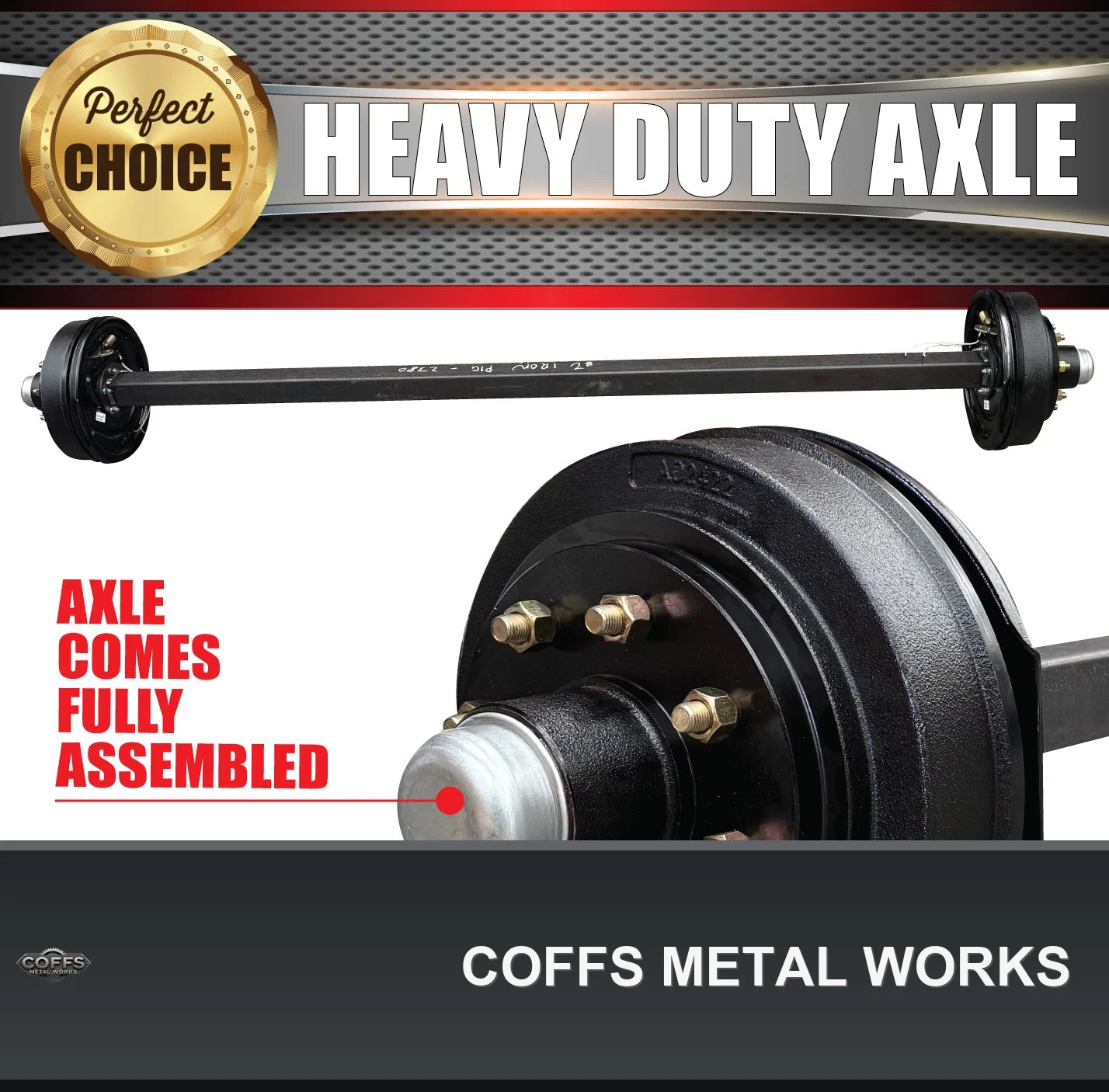

PLEASE NOTE: WE WILL SEND THIS AXLE FULLY ASSEMBLED SAVING YOU MUCH TIME AND HEADACHE

AVAILABLE PATTERNS

LANDCRUISER 6 STUD.  6/139.7 PCD.  1/2" STUDS AND NUTS

LANDCRUISER 5 STUD.  5/150 PCD.  9/16" STUDS AND NUTS

FORD F100 / F150 5 STUD.  5/139.7 PCD.  9/16" STUDS AND NUTS

FORD F250 / F350 8 STUD.  8/170 PCD.  14X1.5 STUDS AND NUTS

AVAILABLE LENGTHS

As this axle is locally engineered any size is available up to 2500mm.

Up to 7 days turnaround to engineer axle

If you can give a hub face to hub face then we will work out the length.

If you need assistance then please get in contact with us.

PLEASE NOTE: Minimum clearance from hub face to chassis per side: 170mm

Hub face to back of electric backing plate per side: 170mm

COMES WITH HANDBRAKE LEVERS

LANDCRUISER 3 TONNE SIZE BEARINGS (30210 inner and 29749 outer)

THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $90.0 (Click on the link below)
