Coffs Metal Works

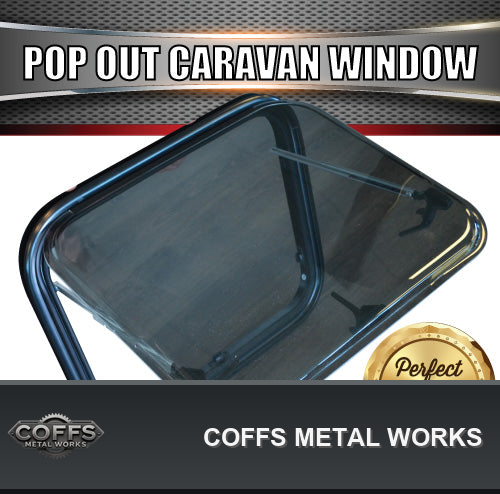

700mm x 500mm Caravan, Horse Float, Motorhome Push Out Window

700mm x 500mm Caravan, Horse Float, Motorhome Push Out Window

$380.00 AUD
$380.00 AUD
Sale Sold out

700mm x 500mm Caravan, Horse Float, Motorhome Push Out Window

CARAVAN PUSH OUT WINDOW

700mm x 500mm

ADR COMPLIANT.  E-MARKED

Comes With Anti UV Blinds & Built in Fly Screen

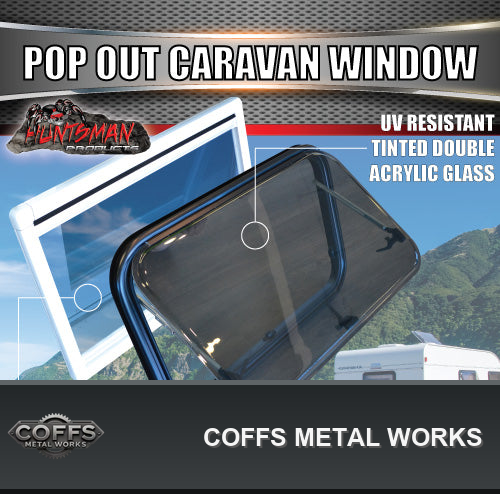

Tinted acrylic borderless glazing, UV resistant.



Caravan Push Out Window
Cut out size (W*H)：700*500 mm
1. Mounting panel thickness range: 30mm to 80mm
2. Suggested radius of cut out corners: R100 mm
3. Top Hinge opening to an angle of 65 to 70 degrees.

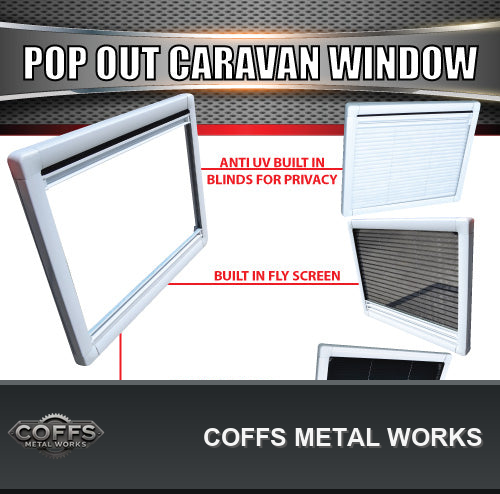

4. Removable white plastic internal mounted frame with fly screen and anti-UV blinds built in.
5. Tinted acrylic borderless glazing, UV resistant.
6. Single opening window

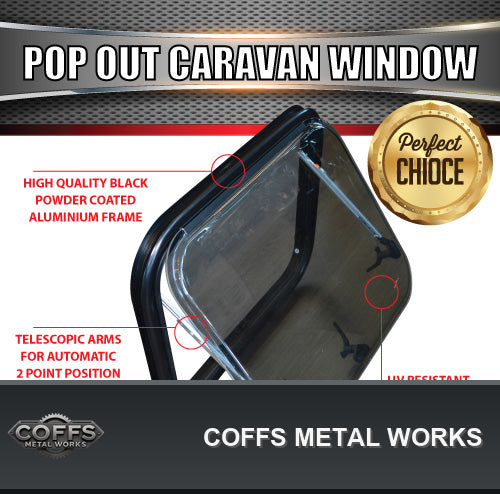

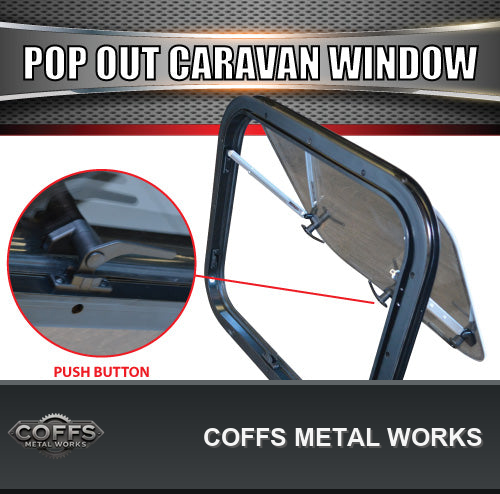

7. Telescopic arms for setting window panel at 2 positions automatically
8. High quality black powder coated aluminum external frame. The frame is approx 28mm wide, which will be screwed onto the surface around the hole
9. ADR compliant. Each window E-marked

Specifications

Mounting Panel Thickness Range 30mm to 80mm
Suggested Radius Of Cut Out Corners R100 mm
Removable White Plastic Internal Mounted Frame With Fly Screen And Anti UV blinds built in
Each Window E marked
Mentioned Sizes 700mm, 500mm, 28mm
