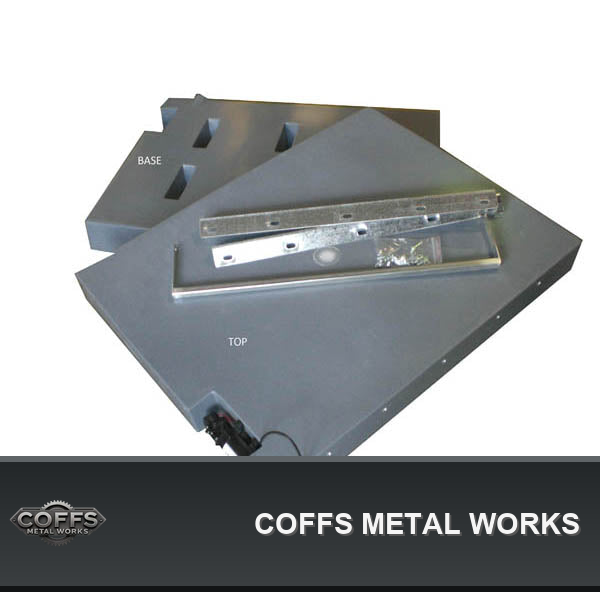

80 LITRE SLIMLINE WATER TANK WITH 12v PUMP AND MOUNT KIT. PRV80S-P-MK

PRV80S-P-MK

Slimline tank with 12v pump and mount kit

• Approximate usable storage – 80 litres
• Roto moulded polyethylene
• Size: L x 1080mm, W x 830mm, H x 115mm
• ¾ Brass fittings
• 3/8 Plastic thread breather
• Average wall thickness = 6mm
• Food grade polyethelene
• Tank is baffled
• 12v 3.8 litres per minute 40psi pump with pressure switch.  10mm outlet
• Mount kit included
• USED ON CARAVANS, BOATS, CAMPER TRAILERS, 4WD'S

Filling and Fitting Instructions:

Drill and bolt mounting angles supplied to tray or chassis at the right width and fix tank to angles using bolts supplied. Fix support bracket to the underside of thank using centre bolts on the mounting angles. This tank is not to be pressure filled from a hose that is connected from mains pressure to the tank that has a larger flow rate than the breather. Doing so will cause the tank to inflate and split and will void warranty.We recommend to use plastic/nylon fittings in this tank not brass.The stated litre capacity is by cubic measurements and is a guide only. Usable litre capacity is determined by the way the tank is mounted.

TANK MUST BE FLUSHED BEFORE INITIAL USE

Please note some Enmach products can be a 6-8 week delay in supply, if your order is urgent please call Coffs Metal Works on 0466 713 544 to confirm stock availability
