ANODES - ZINC PROPELLER WITH NUT INSERT

Name: ANODES - ZINC PROPELLER WITH NUT INSERT
Brand: Coffs Metal Works
SKU: CMW-21109B
Price: 157.00 AUD
Availability: InStock

$157.00 AUD

Sale Sold out

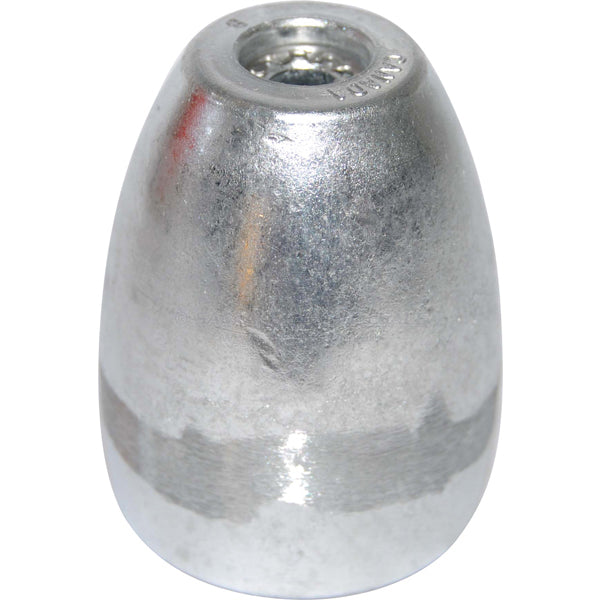

Anode zinc prop with bronze nut insert 3/4 UNF

Anode with propeller nut insert (silicon bronze alloy) cast to C87500 composition.

Part No.	CMW-21109B
Weight	0.7kg

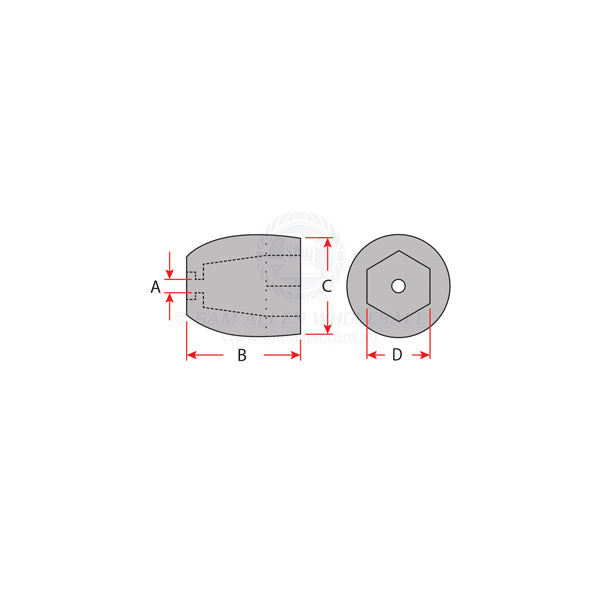

A	8mm
B	68mm
C	50mm
D	30mm
Propeller Shaft Diameter	1-1/8 inch
Propeller Nut Thread Size	3/4 inch UNF
Note	Dimension C is at the widest point. Dimension D is at the small end of the tapered hex.
