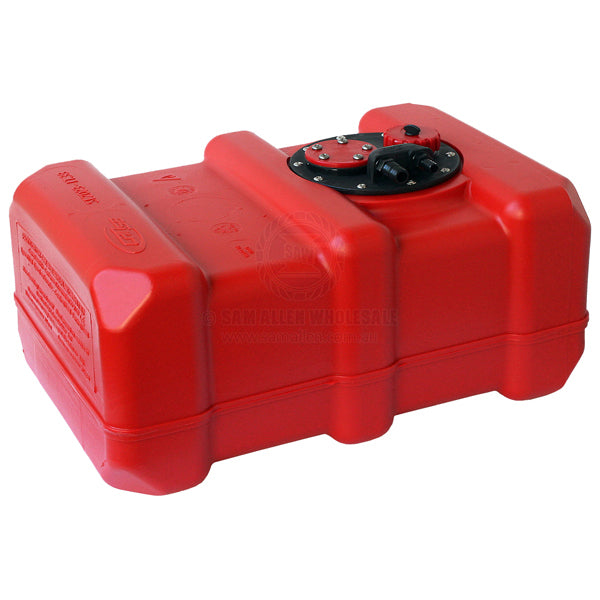

Fuel tank polyethylene under floor 33 litres 500 x 230 x 350mm
Features
Moulded using high density polyethylene, suitable for petrol or diesel.
Features include a removable inspection port, vented cap, stepped dia. 16mm (5/8 inch) / dia. 19mm (3/4 inch) tail for external breather, 10mm tail for fuel hose, blanked 1/4 inch BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.
ISO 21487 CE certification.
Specifications
Part No.
CMW-37353

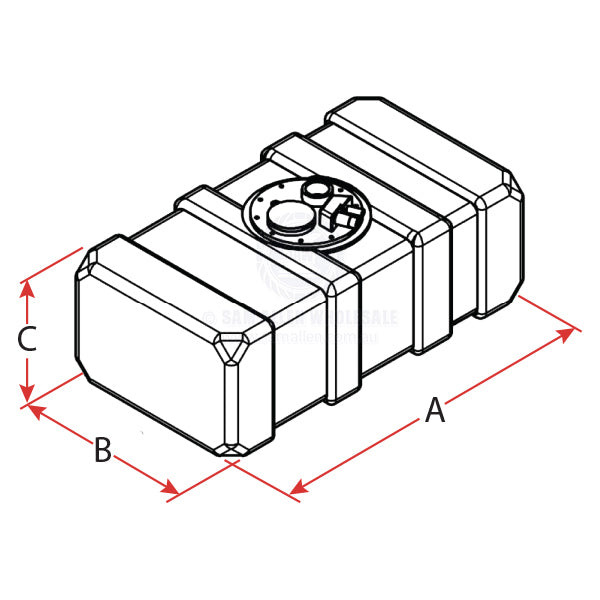

Length
500mm (A)
Width
350mm (B)
Height
230mm (C)*
Weight
3.5kg
Capacity
33Ltr
Note
* Tank height dimension excludes fittings (+30mm). Requires additional 80mm in height to facilitate 45275 elbow swivel inlet tail (page 581).
