DIESEL FILTER - TURBINE SERIES GTB341 GRIFFIN

DIESEL FILTER - TURBINE SERIES GTB341 GRIFFIN

Regular price $663.80 AUD
Regular price Sale price $663.80 AUD
Sale Sold out
Quantity

Description

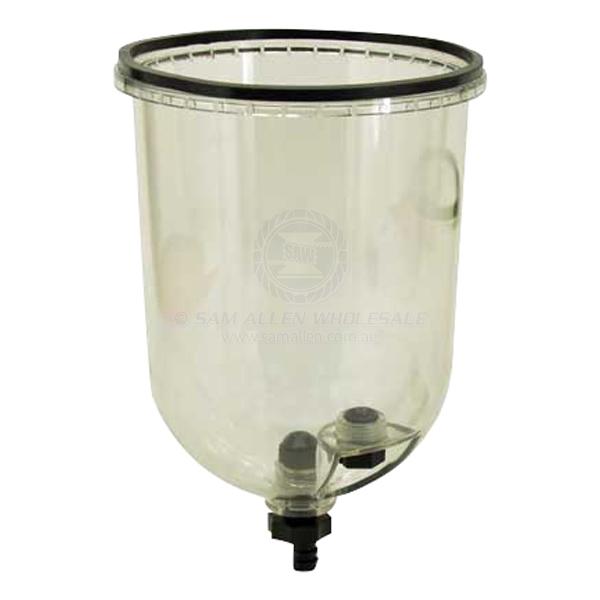

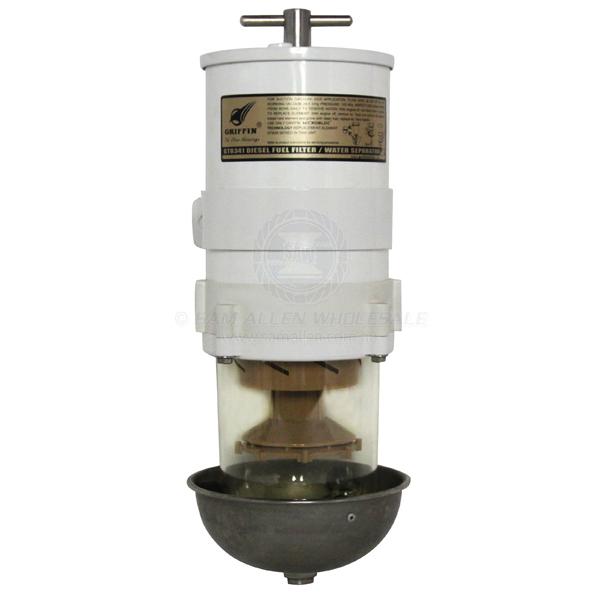

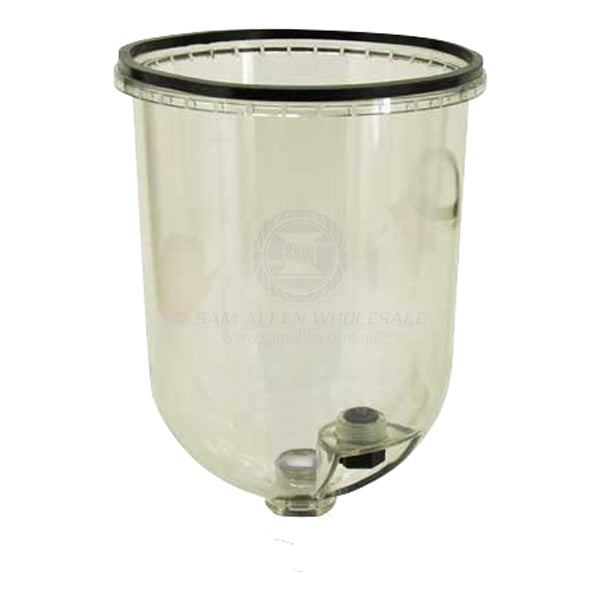

Diesel Filter Kit GTB341 Clear Bowl & Heat Deflector Shield

Specifications

Part No. CMW-374120
Port Size 7/8-14 inch UNF
Flow Rate 341LPH (90GPH)
Service Clearance 127mm
Dimensions H 412 x W 145mm x D 160mm
Temperature -20°C / +121°C
Clean Pressure Drop 2.4kPa
Max. Operating Pressure 103kPa
Unit Qty 1

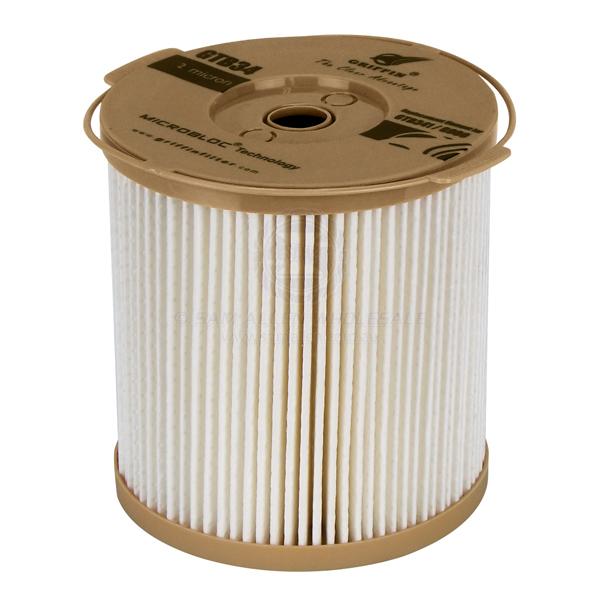

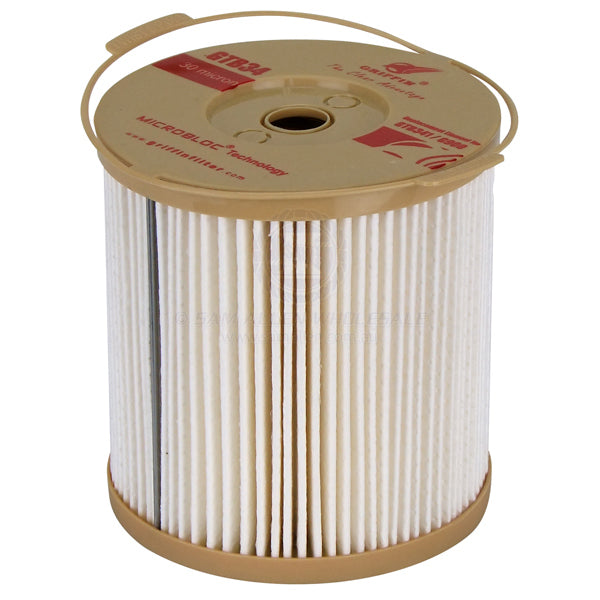

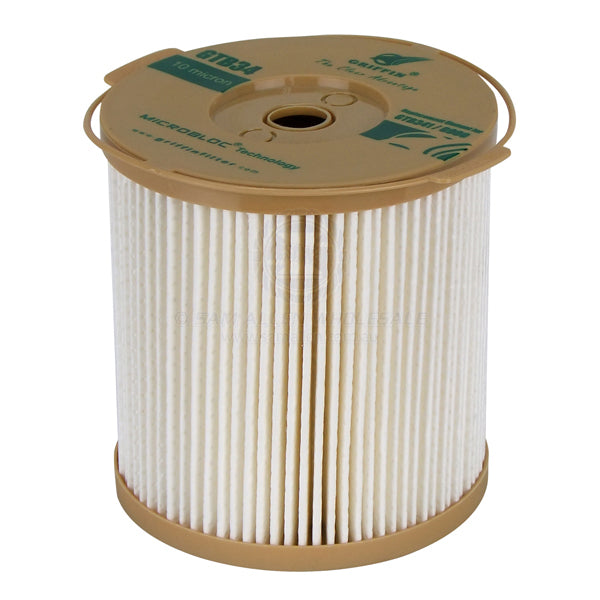

Note • Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 900MA. • MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes. • Supplied as standard with a 10 micron GRIFFIN MICROBLOC element. * Hose fittings are not included.

Guides & Documents

GTB228_GTB341_GTB681_Single_Turbine.pdf
