DIESEL FILTER - TURBINE SERIES GTB341DM GRIFFIN

DIESEL FILTER - TURBINE SERIES GTB341DM GRIFFIN

Regular price $2,417.60 AUD
Regular price Sale price $2,417.60 AUD
Sale Sold out
Quantity

Description

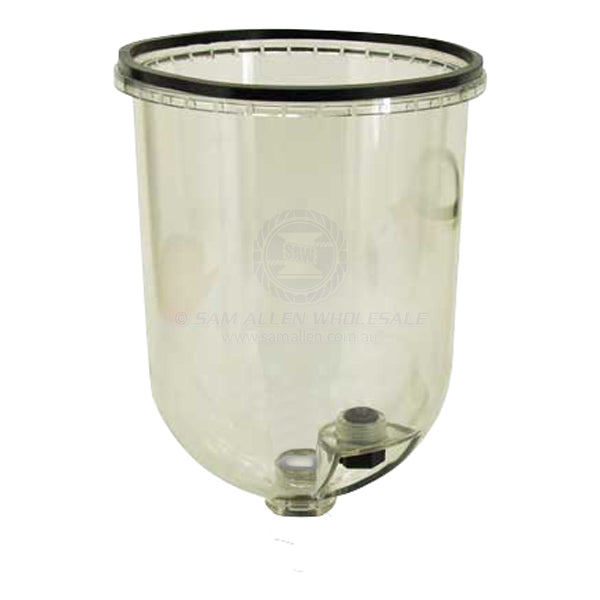

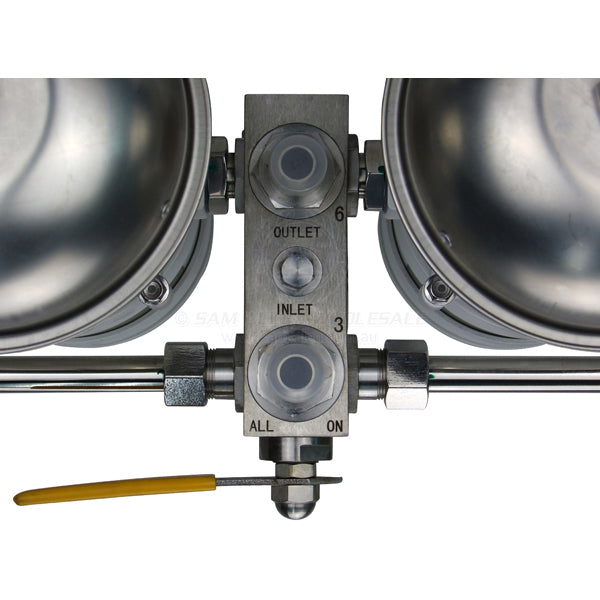

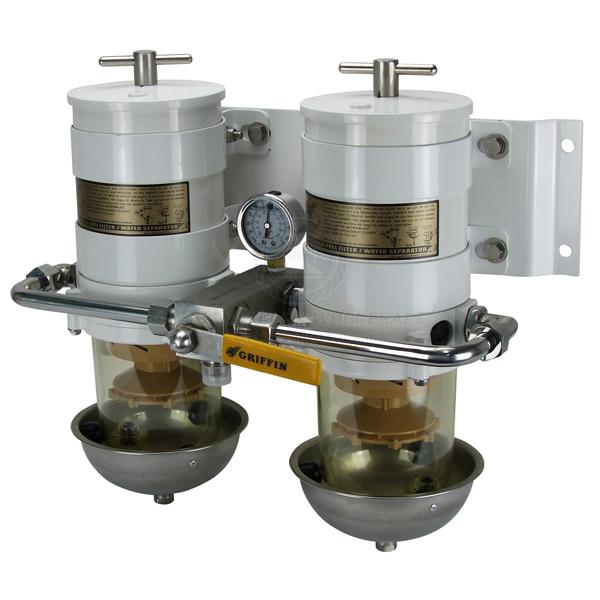

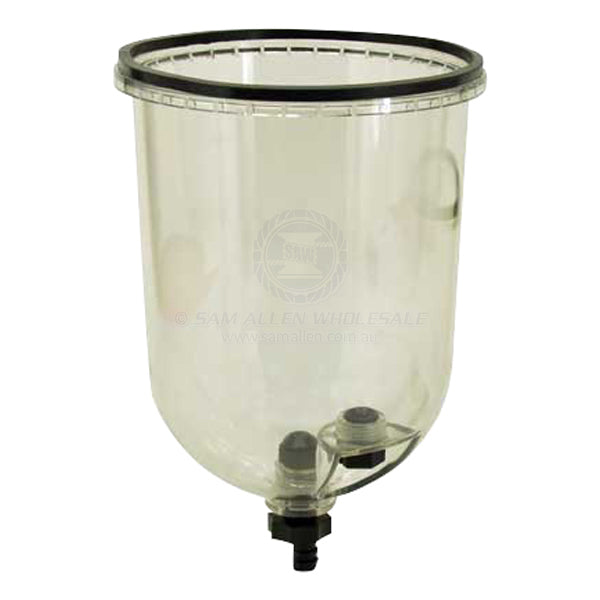

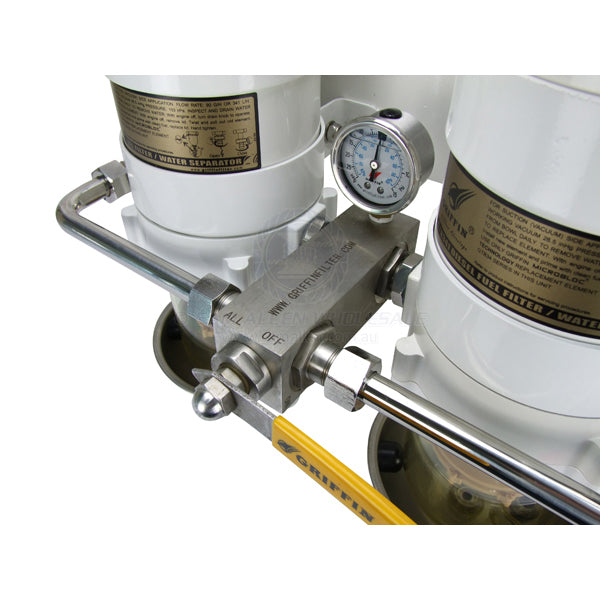

Diesel Filter Kit GTB341 DM Double Manifold Bowl & Shield

Specifications

Part No. CMW-374122
Port Size 7/8-14 inch UNF
Flow Rate 681LPH (180GPH)
Service Clearance 127mm
Dimensions H 412 x W 476mm x D 279mm
Temperature -20°C / +121°C
Clean Pressure Drop 11.7kPa
Max. Operating Pressure 103kPa
Unit Qty 1

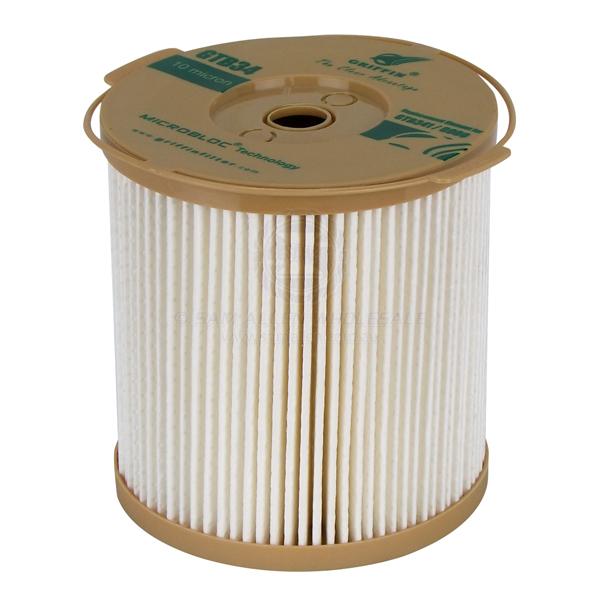

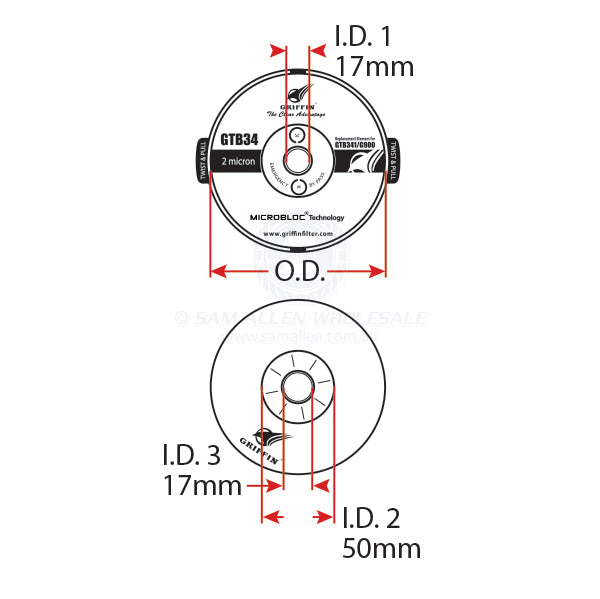

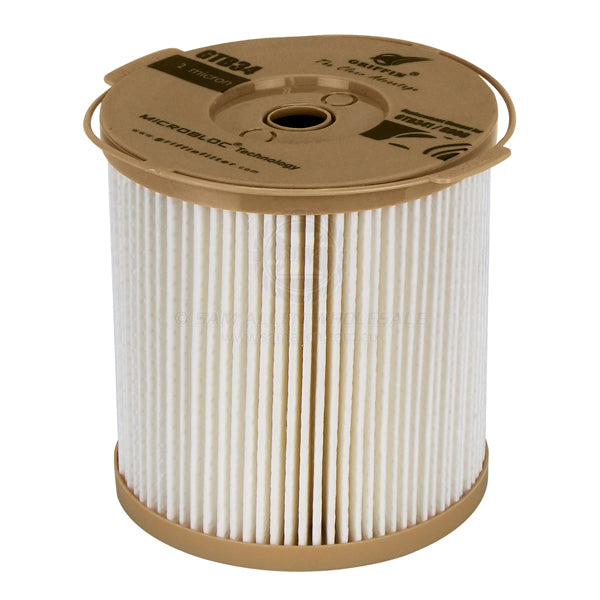

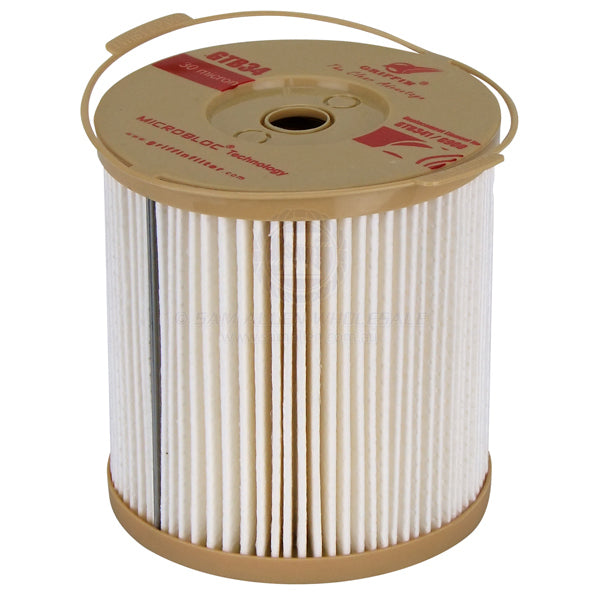

Note • Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/900MAX. • MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes. • Supplied as standard with a 10 micron GRIFFIN MICROBLOC element. * Hose fittings are not included.

Guides & Documents

GTB228DM_GTB681DM-MAS_Turbine_Manifold_Series.pdf
