Coffs Metal Works
DIESEL FILTER - TURBINE SERIES GTB681 GRIFFIN
DIESEL FILTER - TURBINE SERIES GTB681 GRIFFIN
Regular price
$695.85 AUD
Regular price
Sale price
$695.85 AUD
Quantity
Couldn't load pickup availability
Description

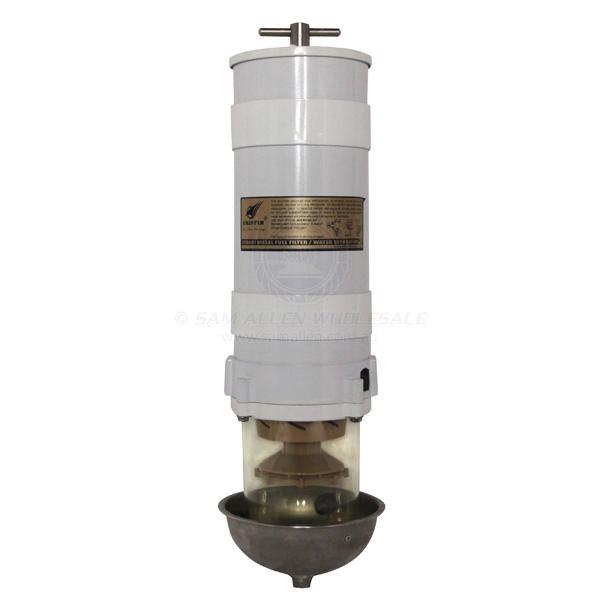

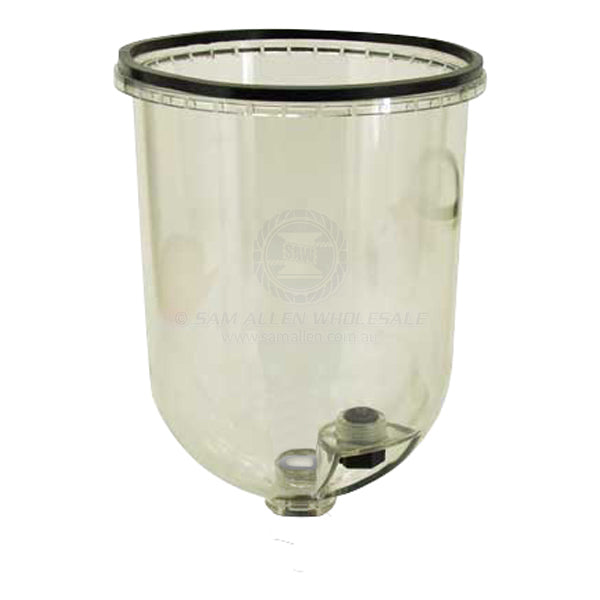

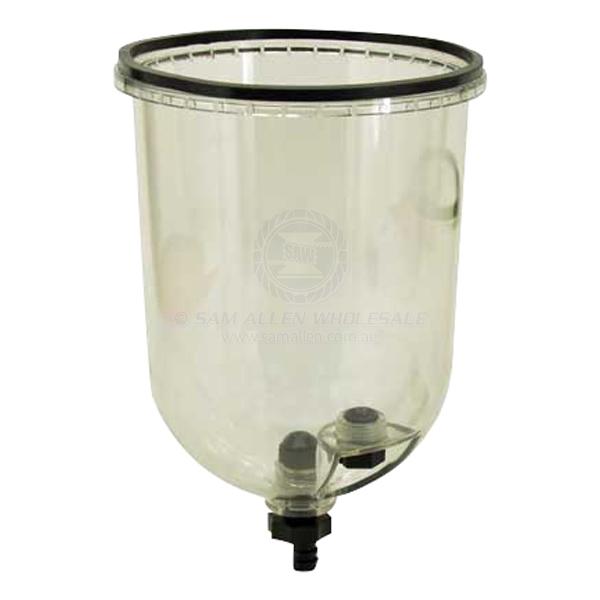

Diesel Filter Kit GTB681 Clear Bowl & Heat Deflector Shield
Specifications
| Part No. | CMW-374130 |
|---|---|
| Port Size | 7/8-14 inch UNF |
| Flow Rate | 681LPH (180GPH) |
| Service Clearance | 254mm |
| Dimensions | H 535mm x W 147mm x D 165mm |
| Temperature | -20°C / +121°C |
| Clean Pressure Drop | 3.3kPa |
| Max. Operating Pressure | 103kPa |
| Unit Qty | 1 |

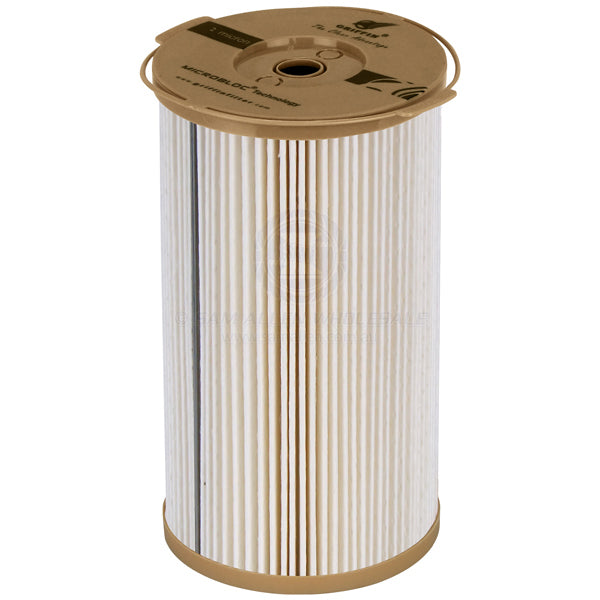

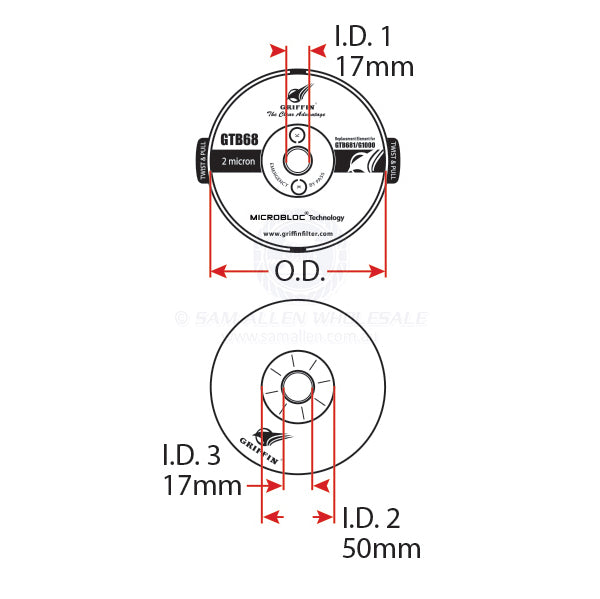

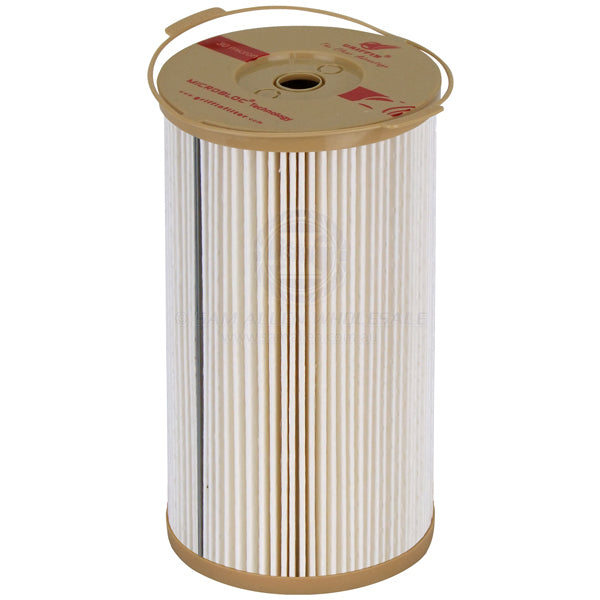

| Note | • Provides unsurpassed fuel filtration and water separation and is comparable to the Racor Marine 1000 series filters. • The GTB681 series filter use GRIFFIN replacement elements GTB68, formerly designated as G2020, to remove contaminants as small as 2 microns with that size element. Elements are also available in 10 and 30 micron sizes. • Supplied as standard with a 10 micron GRIFFIN MICROBLOC element. * Hose fittings are not included. * GTB68 elements are compatible with old style Racor 1000 series filters, but not with the new 1000 series filters with the spring-loaded valve. |
