DOOR LATCH - MORTISE - STAINLESS STEEL - UNIVERSAL MOUNT NON LOCKABLE

DOOR LATCH - MORTISE - STAINLESS STEEL - UNIVERSAL MOUNT NON LOCKABLE

$121.20 AUD
$121.20 AUD
Sale Sold out

Description

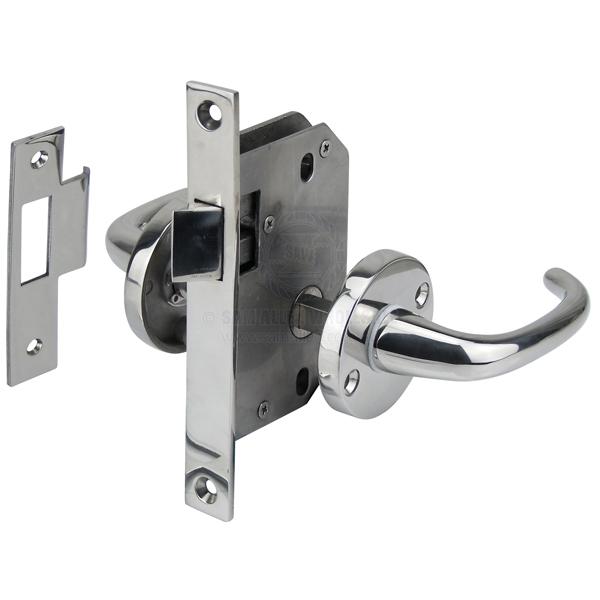

Door latch set mortise 316G SS suit universal mount non lockable

Features

  • Cast 316G polished stainless steel.
  • Slim line, easy grip handle design.
  • No Locking mechanism, suitable for internal doors.
  • Flat strike plate.
  • Tongue is reversible for universal mounting.
  • Lock and Face Plate mount holes 4mm c/s.
  • Striker Plate mount holes 3mm c/s.

Specifications

Part No. CMW-30422
Type Mortise
Handle Length 85mm
Face Plate (Dia.) 50mm
Lock (W x D x H) 17mm x 60mm x 131mm
Lock Cut Out (W x D x H) 12mm x 56mm x 90mm
Door Thickness 22mm - 60mm
