Coffs Metal Works

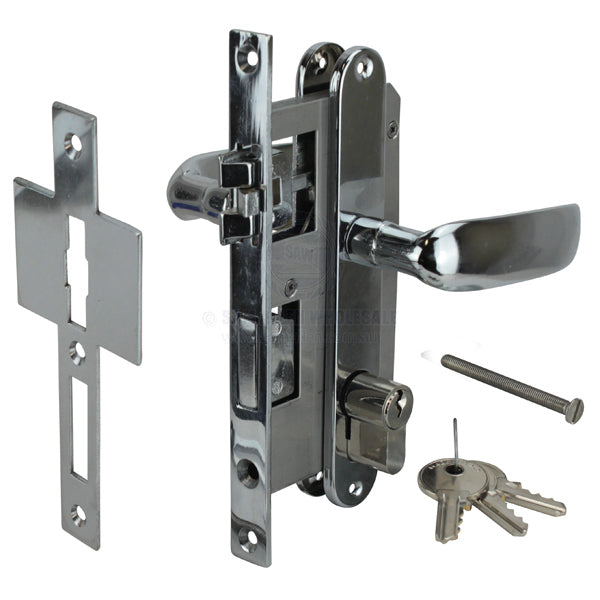

DOOR LOCK - ANTI-RATTLE MORTISE

DOOR LOCK - ANTI-RATTLE MORTISE

$369.45 AUD

$369.45 AUD

Sale Sold out

Description

SS LARGE DOOR LOCK SETS MADE IN ITALY EACH

Features

Chrome plated cast brass and stainless steel.
Spring loaded anti-rattle tongue.
Locking cylinder each side and flat striking plate.
Designed to be reversible.
Supplied with 3 keys.
Cylinder length 45mm.
Spindle shaft 8mm2.

Specifications

Part No.	CMW-30418
Type	Anti-Rattle Mortise
Handle Length	100mm
Face Plate (W x H)	25mm x 164mm

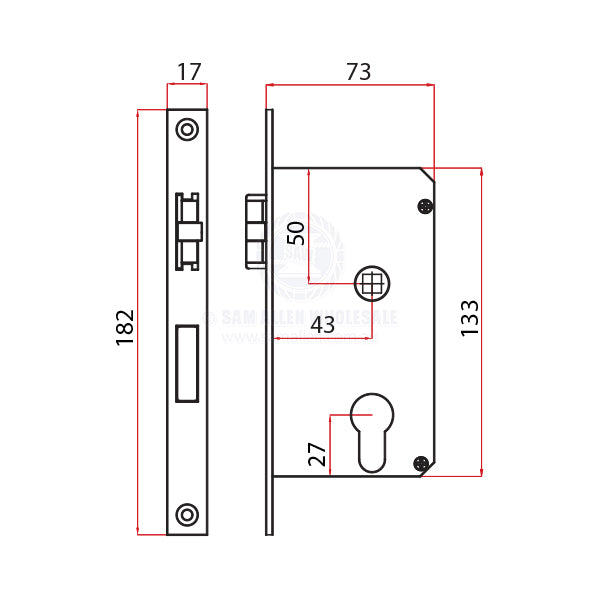

Lock (D x W x H)	73mm x 17mm x 182mm
Lock Cut Out (D x W x H)	70mm x 11mm x 133mm
Door Thickness	22mm - 40mm
