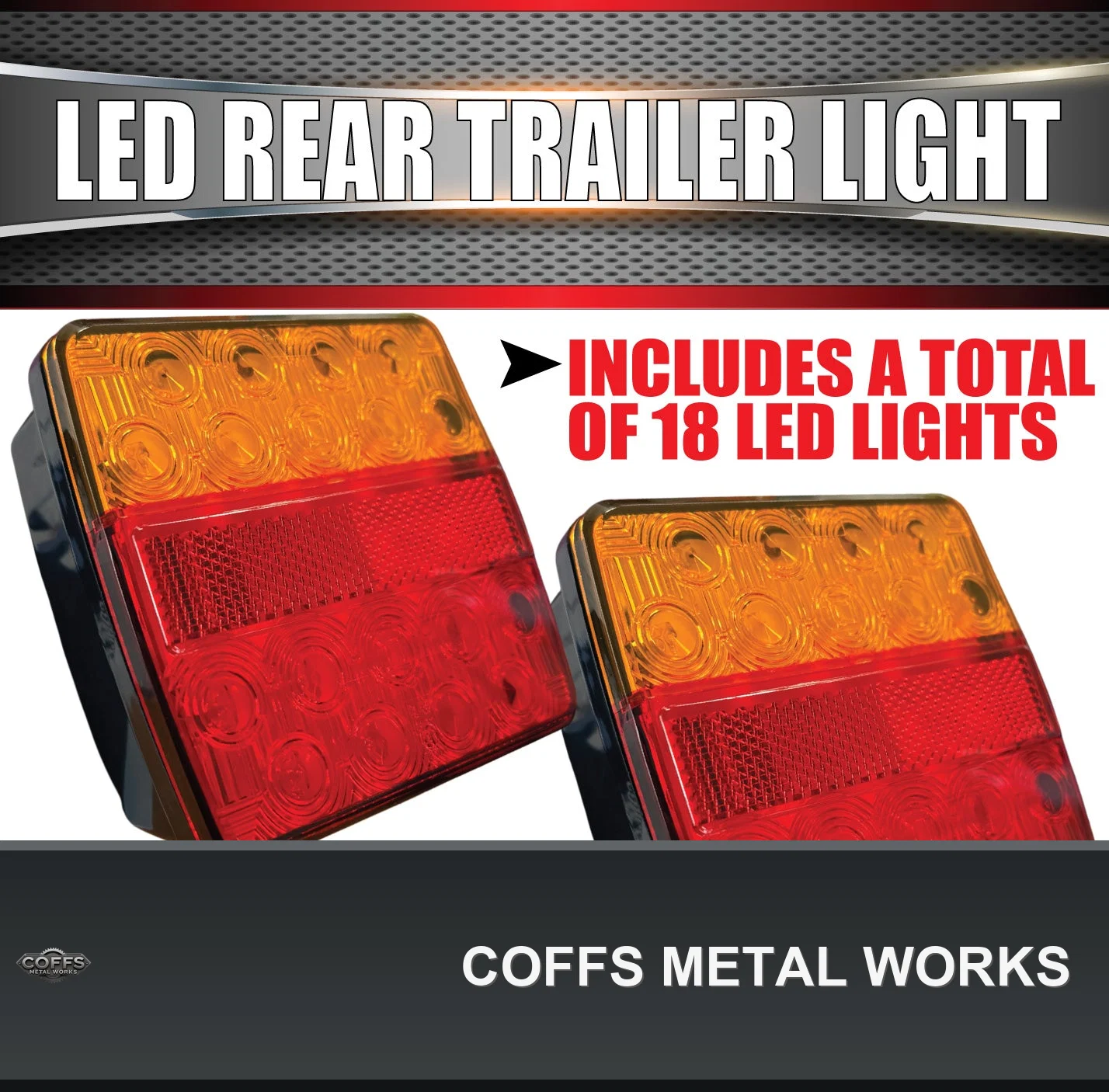

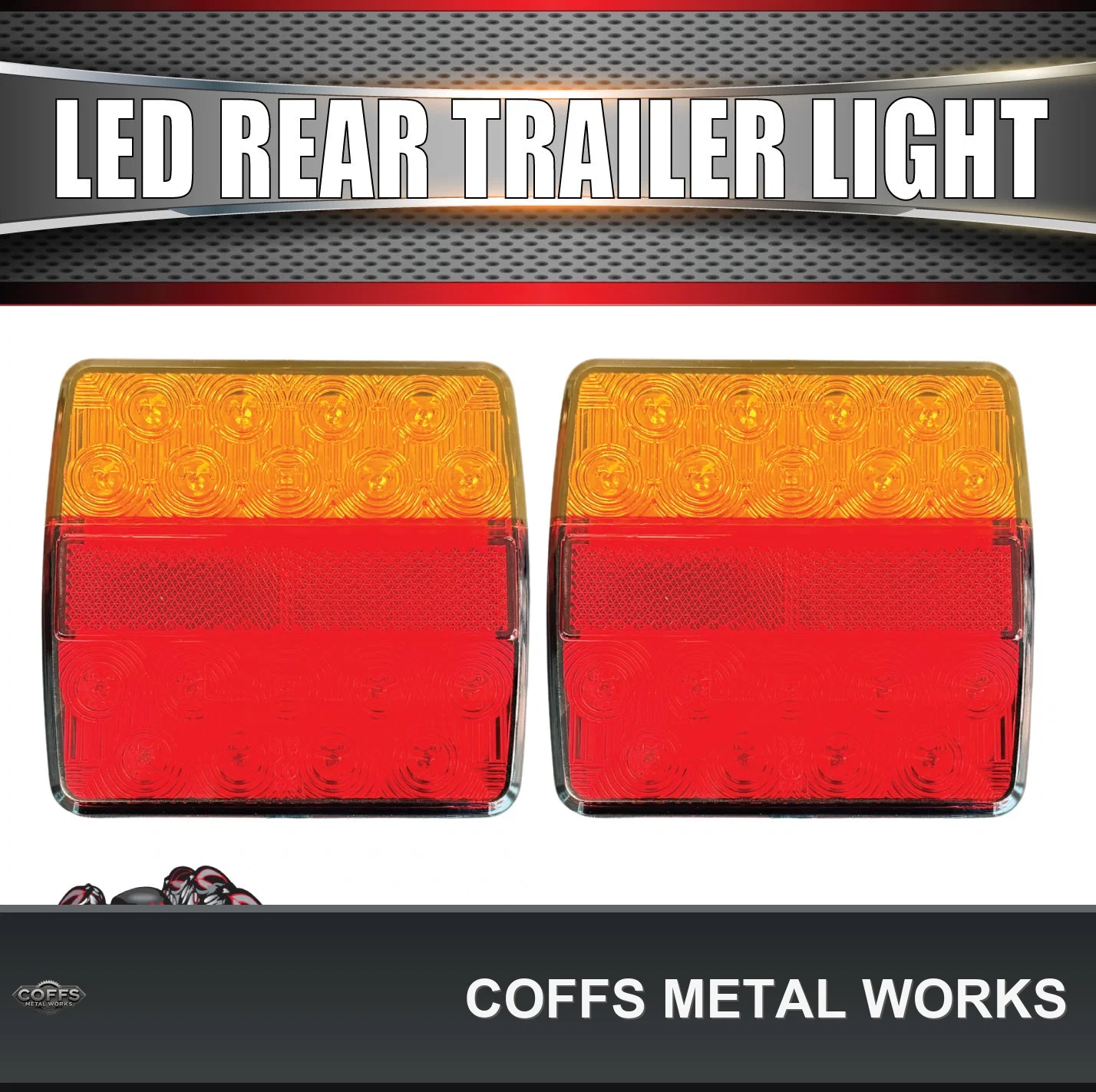

Huntsman LED Rear Combination Trailer Light Surface Mount 105x100mm 18 LED's Per Lamp !!

Coffs Metal Works COMBINATION LAMPS

LTL SERIES

X2 COMBINATION LIGHTS

FEATURES – LAMP KIT

LTL1062

Compact LED combination lamp

12V DC input & low current draw

Water & dust proof (submersible)

Sealed polycarbonate lens & housing

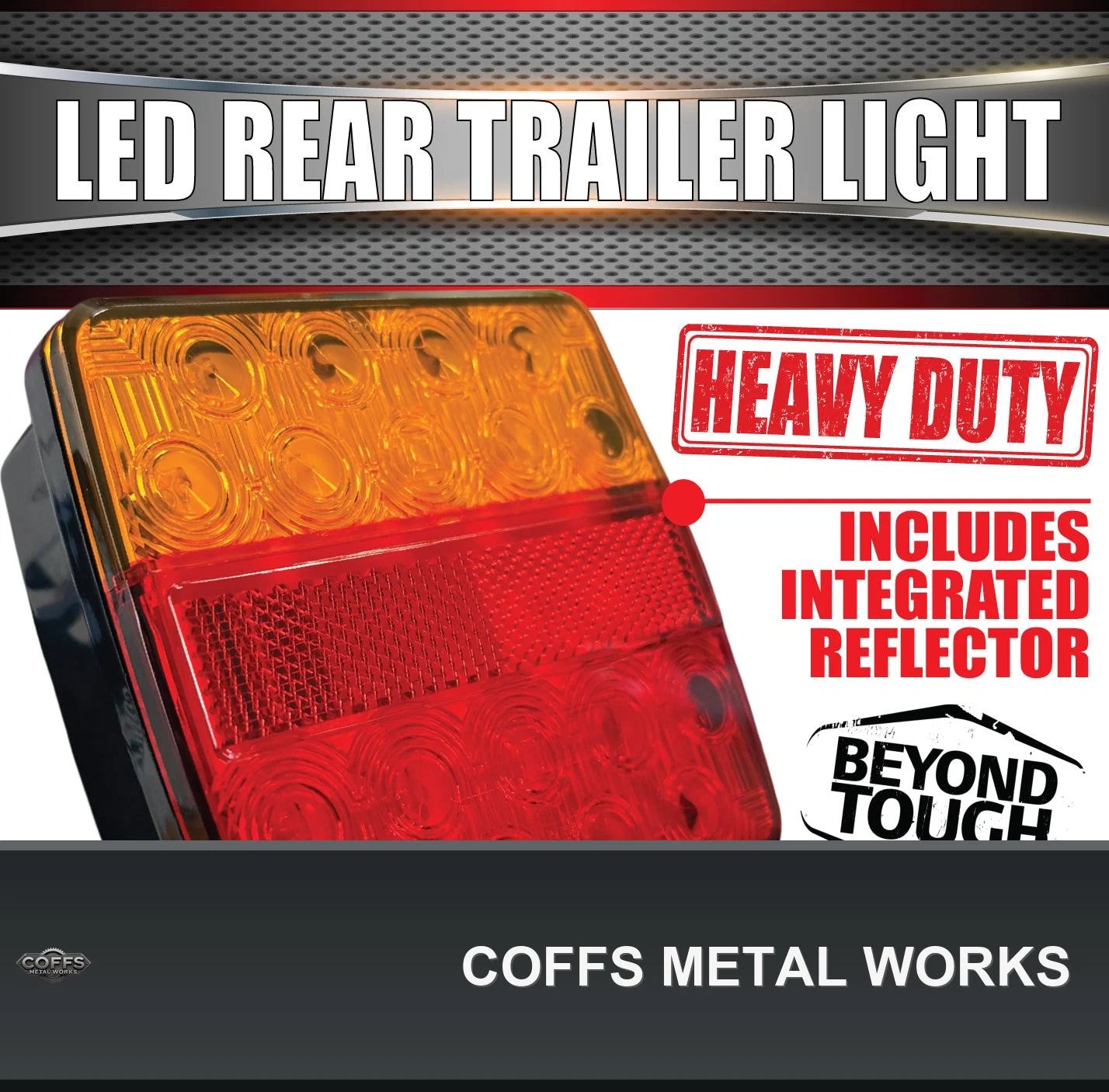

Integrated reflector & optional licence plate lamp

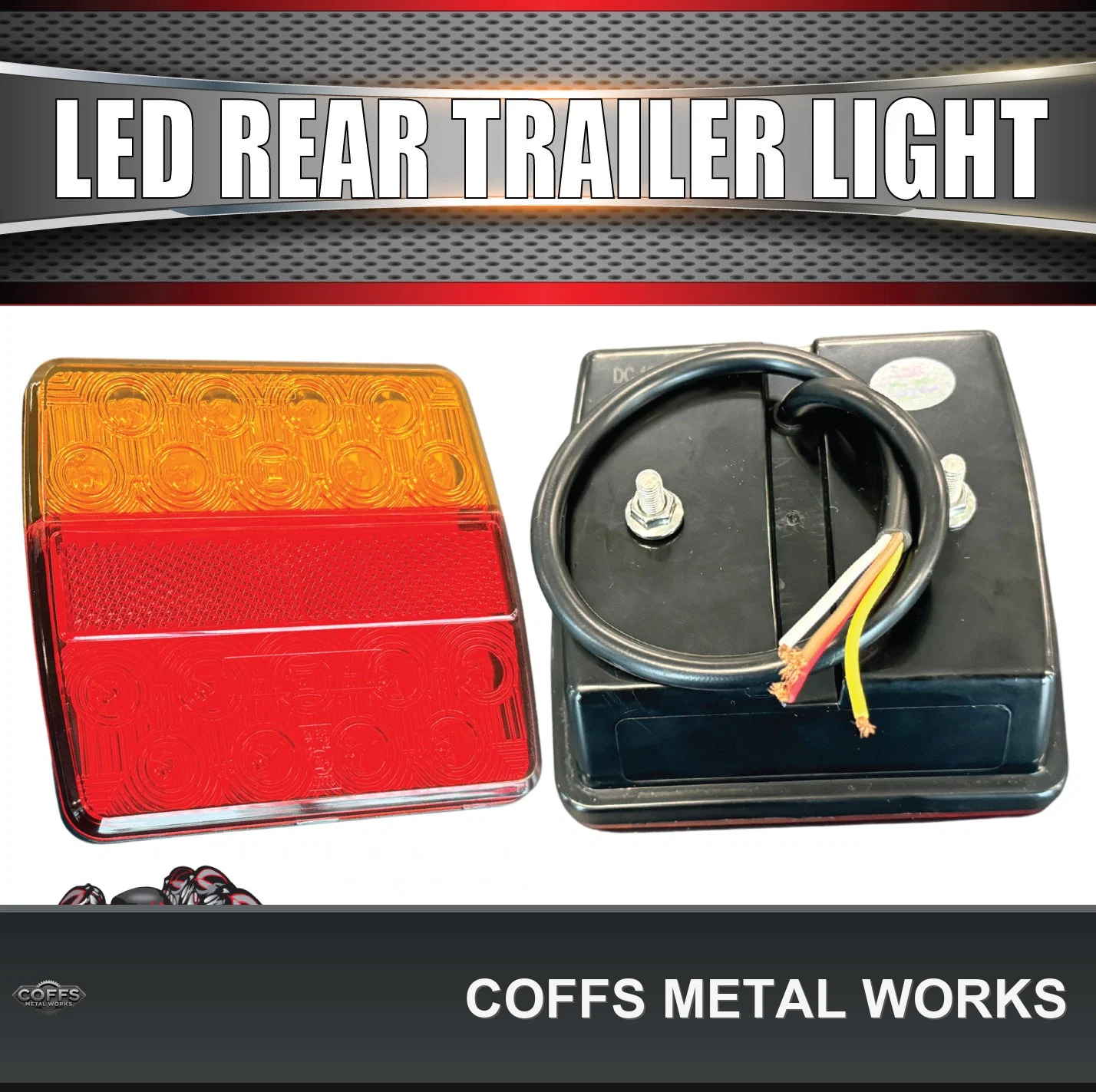

Pre-wired with 350mm sheathed cable

Easy surface mount stainless steel twin stud installation

Maintenance free

ADR/ECE approved for all functions

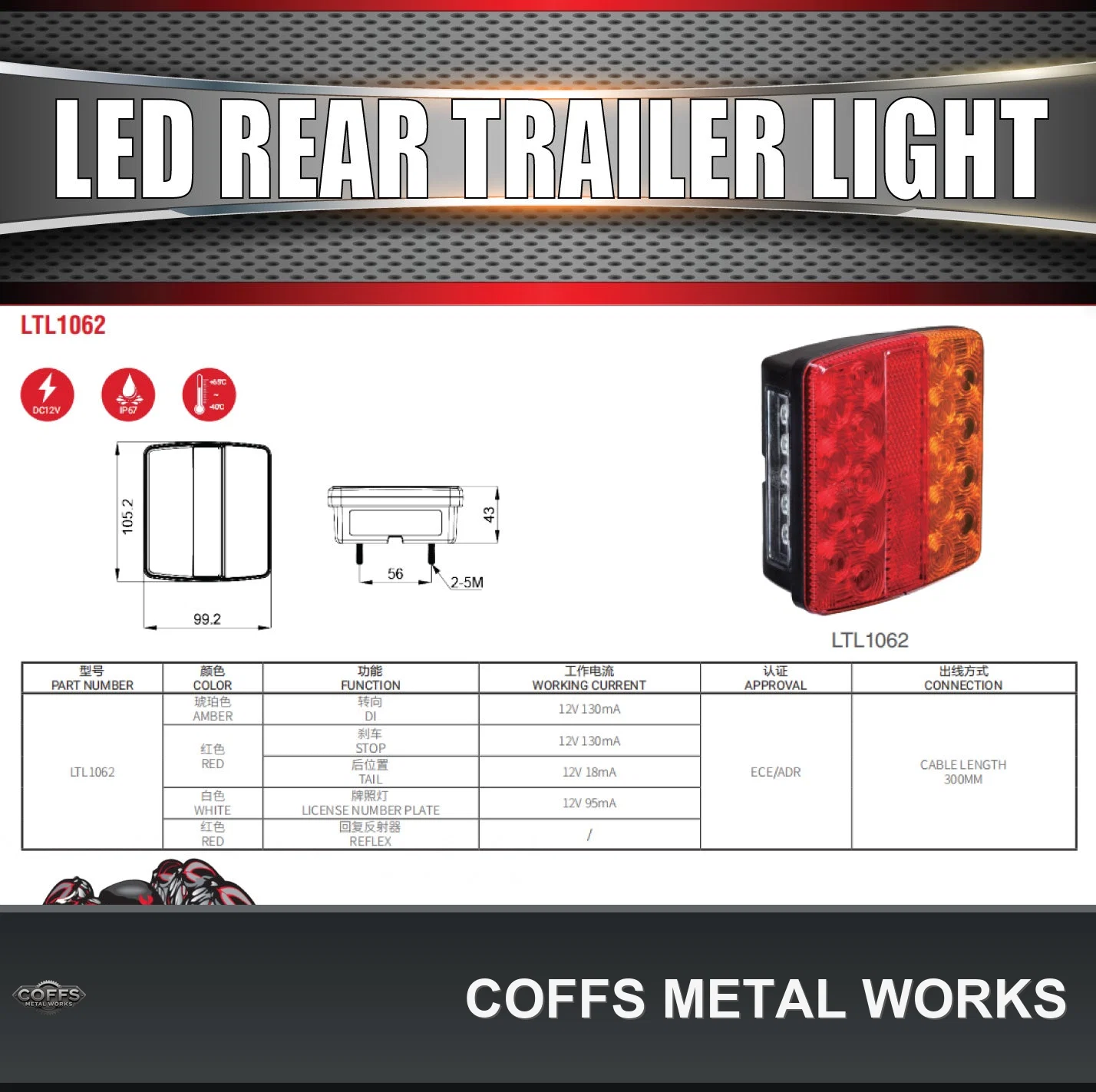

RANGE SPECIFICATIONS

Description: Square Stop/Tail/Ind/Ref Twin Pack

Functions: Stop/Tail & Indicator

Voltage Input: 12V DC

Number of LED's: Indicator - 9 LED's, Stop/Tail - 9 LED's

Dimensions 105x100x42mm

Lens Construction: UV PC

Housing Construction: UV PC

Mounting Hole Centre: 56mm Stud Centres

Cable Length: 350mm Tinned Copper

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow

ADR Approved

CTA Approved
