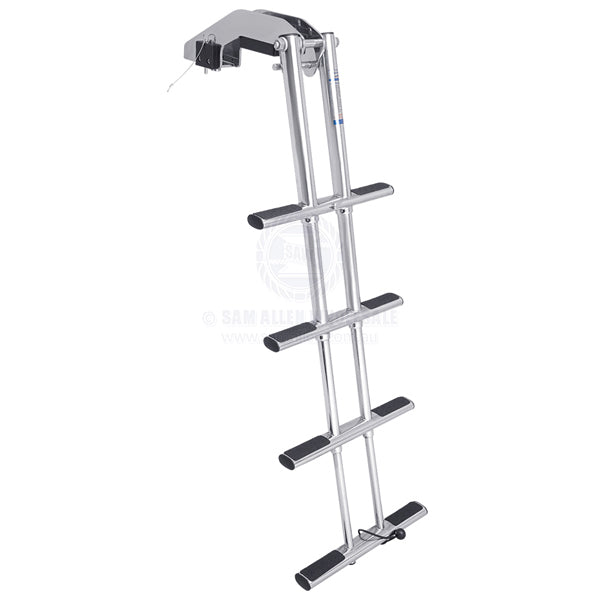

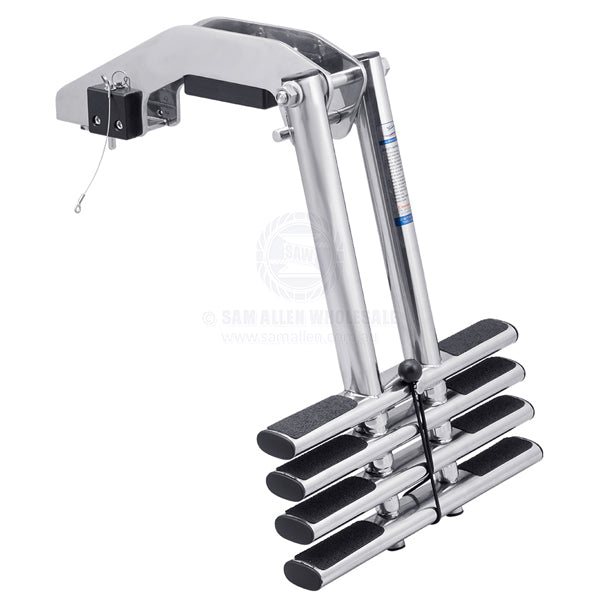

Ladder boarding 304G SS surface mount telescopic 4 step
Specifications
Part No.
CMW-47243

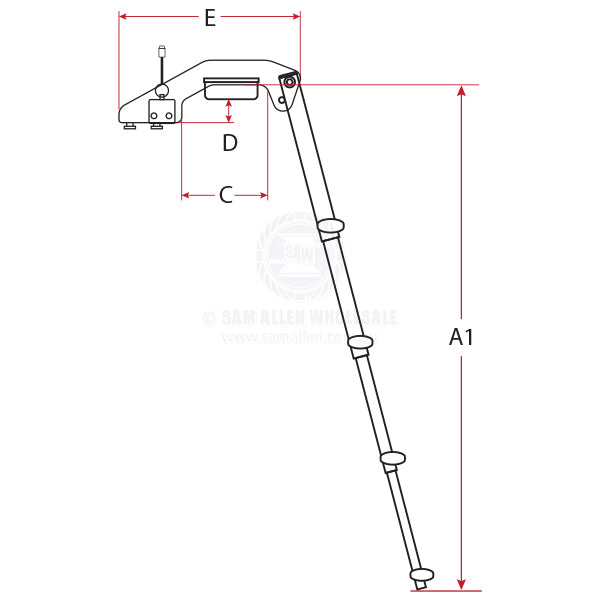

A1 Deployed
1030mm
A2 Stowed
500mm

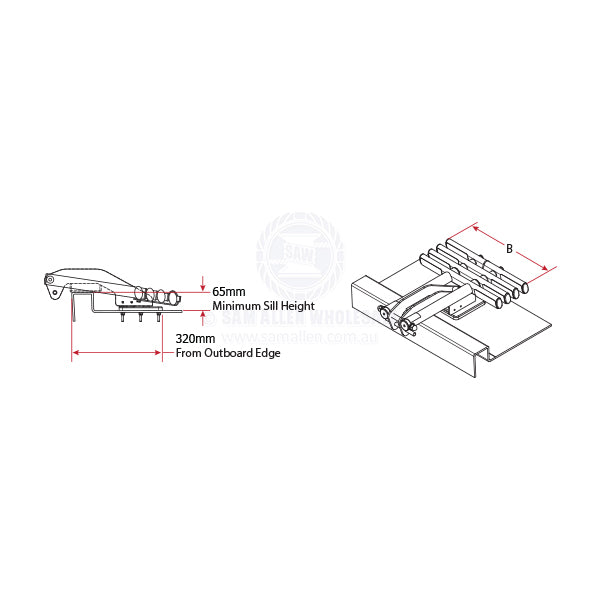

B
378mm
C
182mm
D
55mm
E
380mm
Note

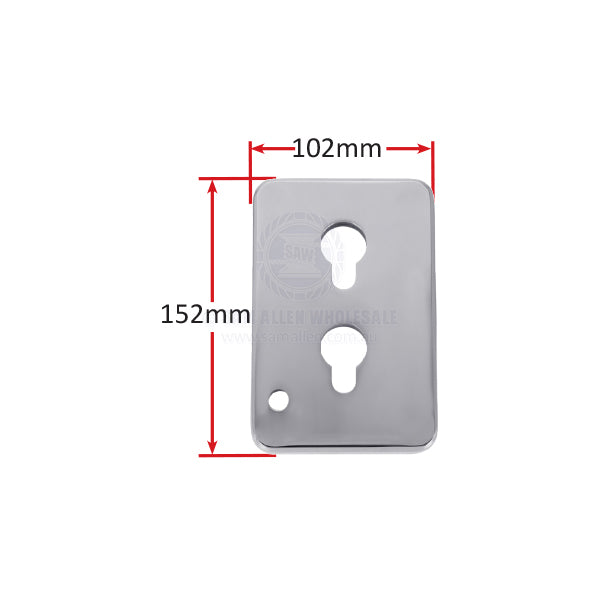

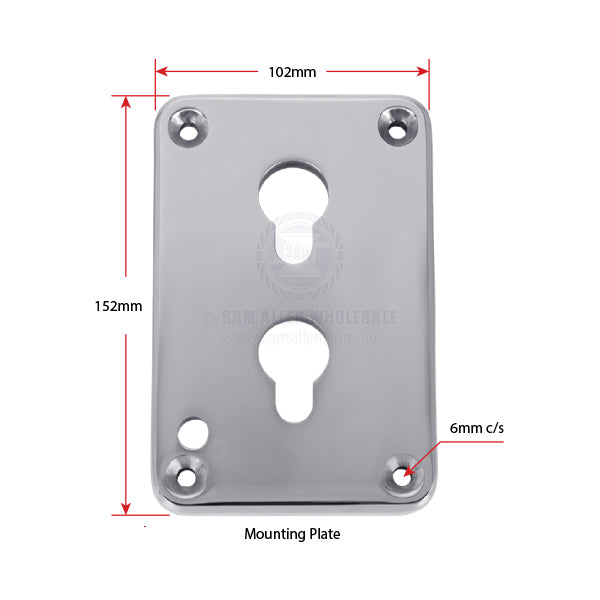

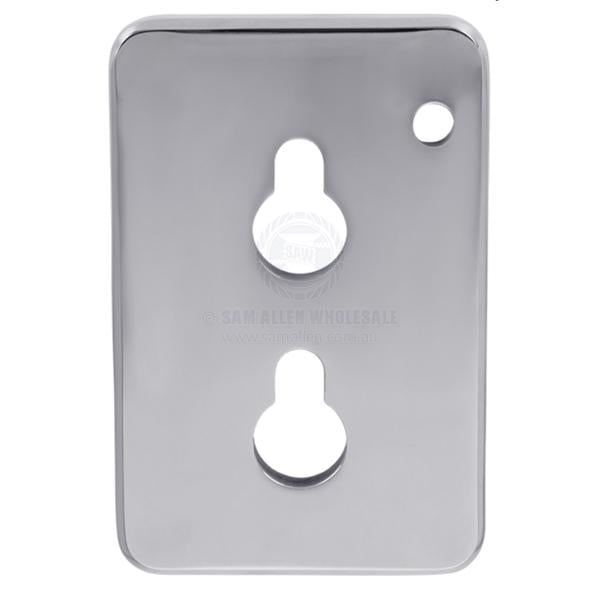

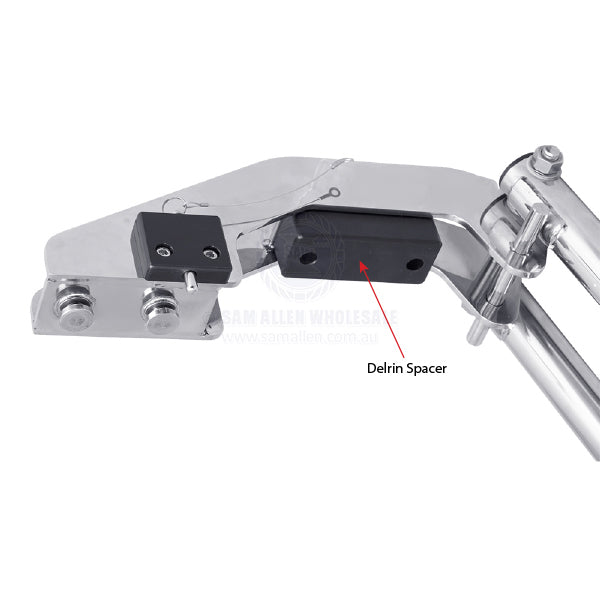

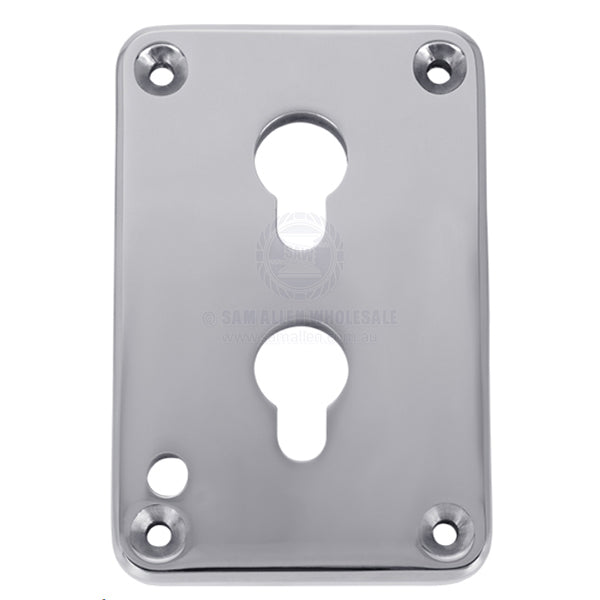

• Polished 304G stainless steel tubing. • Folds for compact storage. • 4 telescoping steps with non-slip treads. • Shock cord loop and button stops ladder from extending. • Supplied as standard with 32 mm delrin spacer. • Locking pin holds ladder securely in place. Choose between two sturdy mounting options for easy attachment and removal: • 47243CM: Countersunk screw mounts for simple installation. • 47243SM: Stud mounts for a seamless and clean appearance. • Each mount is crafted from heavy-duty cast 316G stainless steel, both options ensure durability and reliability.
