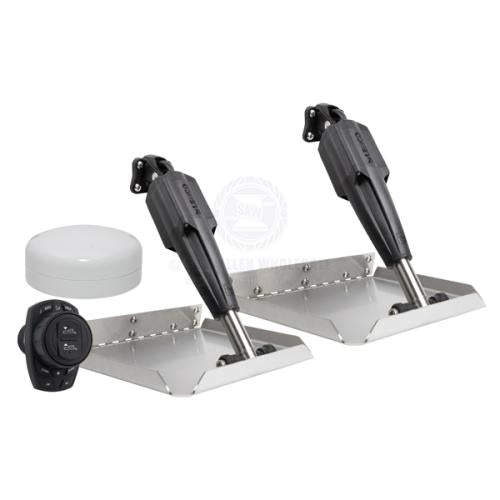

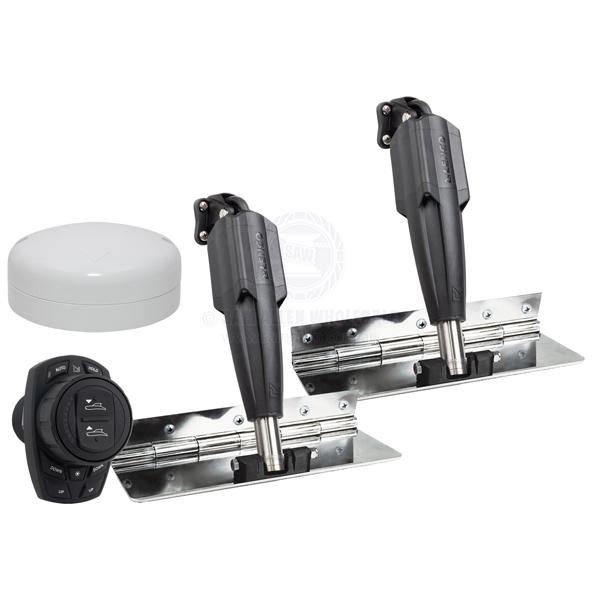

LENCO PRO CONTROL AUTO SYSTEM - LIMITED SPACE KIT
LENCO PRO CONTROL AUTO SYSTEM - LIMITED SPACE KIT
Regular price
$6,006.00 AUD
Regular price
Sale price
$6,006.00 AUD
Quantity
Couldn't load pickup availability
| FEATURES |
| Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water. Designed for boat applications where space is limited by a boarding ladder, burly bucket etc or by transom height. Able to be fitted under a swim platform with a minimum transom clearance of 330 mm. Kit Includes: • 1 x Pro Control Auto Keypad (557032). • 1 x Pro Control Auto IMU (557038). • 2 x 304G (4.2 mm) stainless steel electro-polished finish limited space 4 inch x 14 inch blades. • 2 x 2.25 inch Stroke SD Pro Actuators, 10 inch pin to pin (557050). • 6 x Micro C Tee Connector (557088). • Micro C Power Cable with fuse and ground (557072). • 2 x 6ft Micro C Drop cables (557073), 1 x 15ft (557074) and 1 x 25ft (557076) Micro C Drop cables. • 2 x 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (557080). • 2 x 3ft (.91 m) Pro Control Actuator Power Pigtail (557082). • 1 x Wake Signal Adapter for Non-Mercury Systems (557084). • 2 x Corrosion proof Upper Mounting Brackets with gland seal (557064). • 2 x Corrosion proof Lower Mounting Brackets (557066). • Lenco 2K Backbone Kit. |
| SPECIFICATIONS (Click Part No. for More Details / Guides / Documents) |
| Part No. | 557028 |
| Series | Pro Control Auto System - Limited Space Mount Kit |
| Keypad | Auto |
| Volts (V) | 12 |

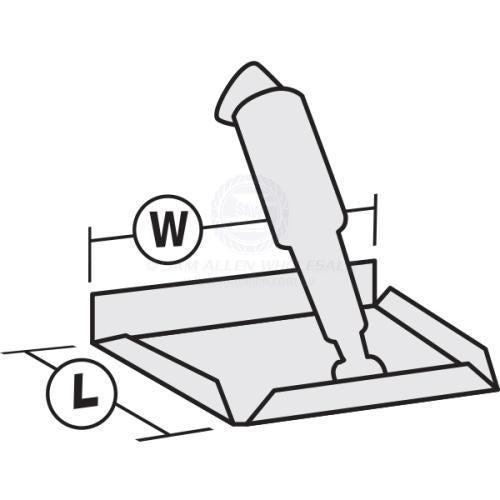

| Size L x W (in) | 4 x 14 |
| Size L x W (mm) | 102 x 356 |
| Hinge Height (mm) | 51 |
| Min. Transom Height (mm) | 330 |
| Approx. Boat Length (Mtr) | 6.0 - 8.5 |
