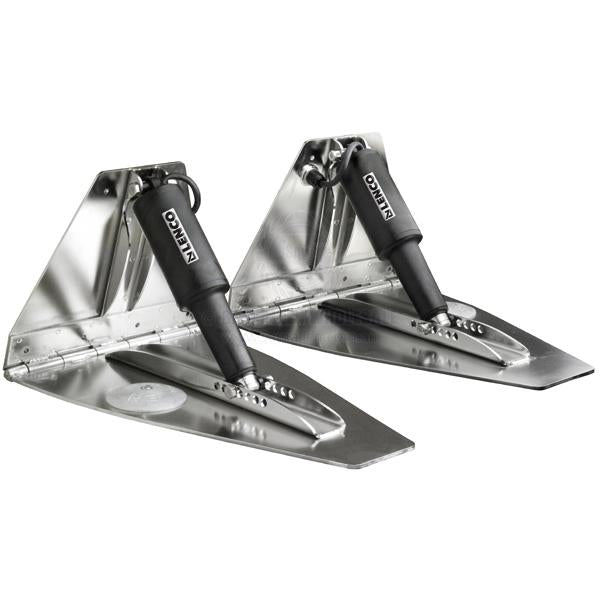

LENCO TRIM TAB KIT - HI PERFORMANCE KIT

LENCO TRIM TAB KIT - HI PERFORMANCE KIT

$3,511.95 AUD
$3,511.95 AUD
Sale Sold out

Description

Trim tab kit Lenco Hi Performance 18x12 12v no switch polish plates

Features

  • Plates are constructed of electro-polished 4.6mm laser cut 304G stainless steel, heavy-duty hinge with 9.5mm diameter pin. Full transom back plate with remote gland-seal, welded stainless steel upper and adjustable lower C-channel brackets. Kit Includes:
  • 2 x 7-gauge stainless steel electro-polished blades.
  • 2 x 101XD Actuators with 1.8m cable and Deutsch connectors.
  • 1 x Set of stainless steel nuts and bolts.
  • 2 x Zinc anodes.
  • Lenco owner’s installation manual.
  • Compliance: CE Certified.
  • 5 Year Warranty (Recreational Use).

Specifications

Part No. CMW-55468
Length 18 inch (457mm)
Width 12 inch (305mm)
Series Hi Performance Actuator Kit
Switch Optional
Volts 12V
Hinge Height 254mm
Min. Transom Height 267mm
Approx Boat Length 5.8Mtr - 10.4Mtr
Finish Electro Polished
Note Switches sold separately. Actuator extension harnesses sold separately (2 required). Boatmounting hardware not supplied.
