• LENCO TRIM TAB KIT - HI PERFORMANCE KIT - HEAVY-DUTY
  • LENCO TRIM TAB KIT - HI PERFORMANCE KIT - HEAVY-DUTY
1 2

Coffs Metal Works

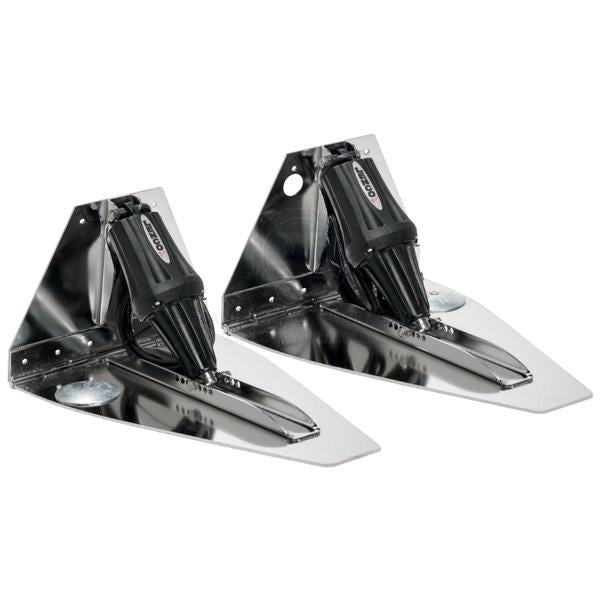

LENCO TRIM TAB KIT - HI PERFORMANCE KIT - HEAVY-DUTY

LENCO TRIM TAB KIT - HI PERFORMANCE KIT - HEAVY-DUTY

$6,666.95 AUD
$6,666.95 AUD
Sale Sold out

Description

Trim tab kit Lenco Hi Perform HD 21x14 12v LED switch polish plates

Features

  • Plates are constructed of electro-polished 4.6mm laser cut 304G stainless steel, heavy-duty hinge with 9.5mm diameter pin. Full transom back plate with remote gland-seal, welded stainless steel upper and adjustable lower C-channel brackets. Kit Includes:
  • 2 x 7-gauge stainless steel electro-polished blades.
  • 2 x HD Actuators (1000lbs Push) with 1.8m cable and Deutsch connectors.
  • 1 x LED Indicator Key Pad Assembly (55628).
  • 1 x Actuator control box (55627).
  • 1 x Set of stainless steel nuts and bolts.
  • 2 x Zinc anodes.
  • Lenco owner’s installation manual.
  • Compliance: CE Certified.
  • 5 Year Warranty (Recreational Use).

Specifications

Part No. CMW-55484
Series Hi Performance Acuator Kit
Switch 55628 & 55627
Volts 12V
Size (L x W) 21 inch (533mm) x 14 inch (355mm)
Hinge Height 254mm
Min. Transom Height 267mm
Approx Boat Length 7.3Mtr - 12.8Mtr
Finish Electro Polished
Note Boat-mounting hardware not supplied. Actuator extension harness not supplied.
View full details
