LENCO TRIM TAB KIT - REVERSE MOUNT - WITHOUT SWITCH

Features

• The reverse mount trim tab has a short ram, perfect where space is limited on the transoms or reverse if there is a swim platform.

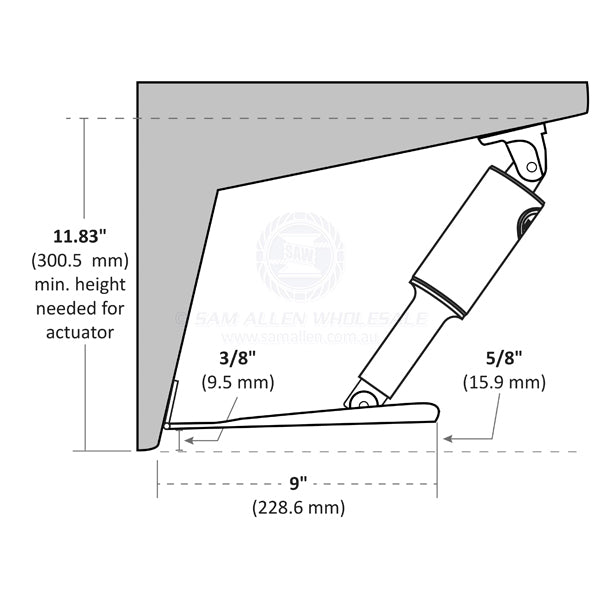

• The actuator can be installed on the underside of a swim platform and does not impede tab movement (seen in diagram below).
• Plates 12 gauge - 304G stainless steel and 1/8 inch diameter hinge pin.
• Equipped with a fast response electric actuators for precise control.
• Fully submersible with all Plug and Play Deutsch connections.
• Compliance: CE Certified .
• 5 Year Warranty (Recreational Use). Kit Includes:

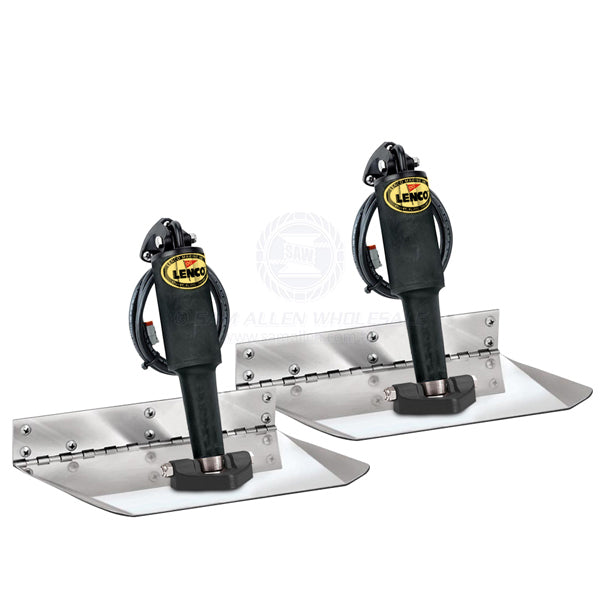

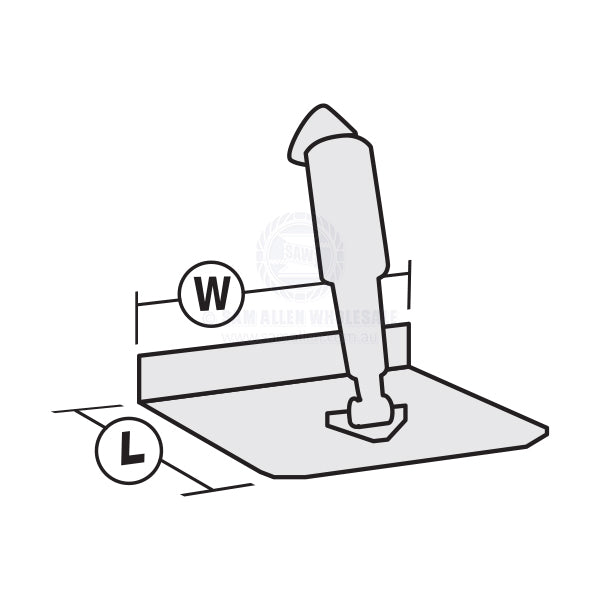

• 2 x 12 gauge stainless steel trim tab plates L 9 inch x W 12 inch.
• 2 x 101XDS actuators with 6' lead and Deutsch plugs.
• 2 x 20' (6m) actuator extension wiring harnesses.
• 2 x Upper mounting bracket with gland seal.
• 2 x XD lower mounting bracket.
• All necessary stainless steel mounting hardware.
